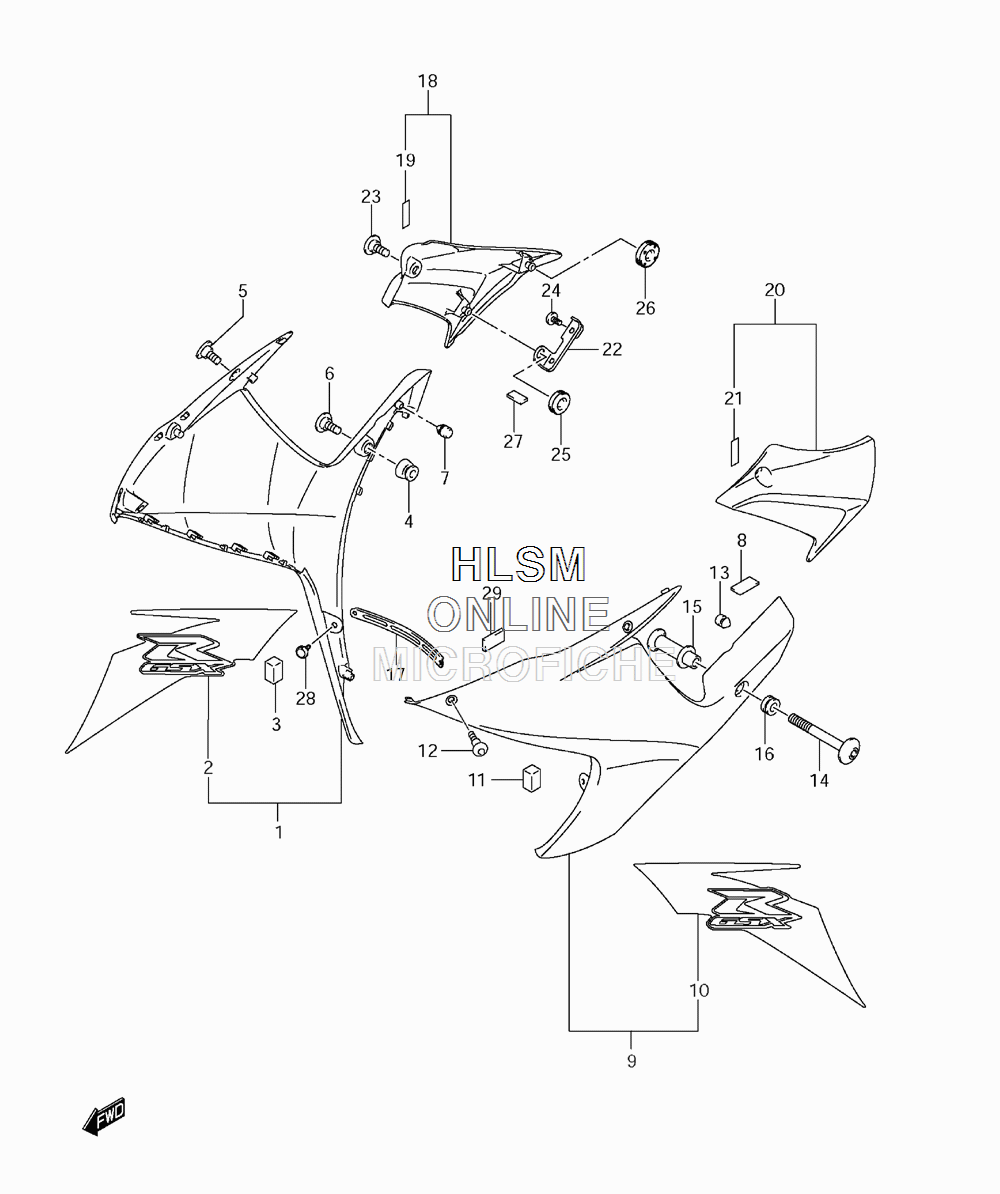

COWLING - SIDE COVER (ABV - RED/BLACK AND AGS - BLACK/WHITE) для Suzuki GSX-R600 L3 - 2013 года выпуска
-
№АртикулНазвание
-
194450-14J30-YWW COWLING, SIDE RIGHT (YWW - WHITE)COWLING, SIDE RIGHT (YWW - WHITE)
-
268685-14J20-AHF ...TAPE, RIGHT (AHF - BLACK/RED)...TAPE, RIGHT (AHF - BLACK/RED)
-
394477-14J01 CUSHIONCUSHION
-
494479-15H00 CUSHION, SIDE COWLING RIGHTCUSHION, SIDE COWLING RIGHT
-
509139-05064 SCREW (5X13)SCREW (5X13)
-
609139-06190 BOLT (6X20)BOLT (6X20)
-
709321-06013 CUSHIONCUSHION
-
844543-10G00 PROTECTOR, SIDE COWLING LEFTPROTECTOR, SIDE COWLING LEFT
-
994460-14J30-YWW COWLING, SIDE LEFT (YWW - WHITE)COWLING, SIDE LEFT (YWW - WHITE)
-
1068695-14J20-AHF ...TAPE, LEFT (AHF - BLACK/RED)...TAPE, LEFT (AHF - BLACK/RED)
-
1194477-14J01 CUSHIONCUSHION
-
1209139-05064 SCREW (5X13)SCREW (5X13)
-
1309321-06013 CUSHIONCUSHION
-
1494488-14J00 SCREW, SIDE COWLING LEFTSCREW, SIDE COWLING LEFT
-
1594489-14J00 SPACER, SIDE COWLING LEFTSPACER, SIDE COWLING LEFT
-
1609320-09016 CUSHIONCUSHION
-
1794498-14J00 PLATE, UNDER COWLING CENTERPLATE, UNDER COWLING CENTER
-
1894570-14J00 COVER, SIDE COWLING RIGHTCOVER, SIDE COWLING RIGHT
-
1994443-06G00 ...TAPE (6X25X0.13)...TAPE (6X25X0.13)
-
2094580-14J00 COVER, SIDE COWLING LEFTCOVER, SIDE COWLING LEFT
-
2194443-06G00 ...TAPE (6X25X0.13)...TAPE (6X25X0.13)
-
2294491-14J00 BRACKET, COVER SIDE RIGHTBRACKET, COVER SIDE RIGHT
-
2309139-05064 SCREW (5X13)SCREW (5X13)
-
2409139-06062 SCREW (6X12)SCREW (6X12)
-
2509320-08013 CUSHIONCUSHION
-
2609320-08028 CUSHIONCUSHION
-
2794612-31F00 CUSHION, BRACKET COVER RIGHTCUSHION, BRACKET COVER RIGHT
-
2894479-35F00 CLIP, UNDER CENTERCLIP, UNDER CENTER
-
2933652-29F00 CUSHIONCUSHION
