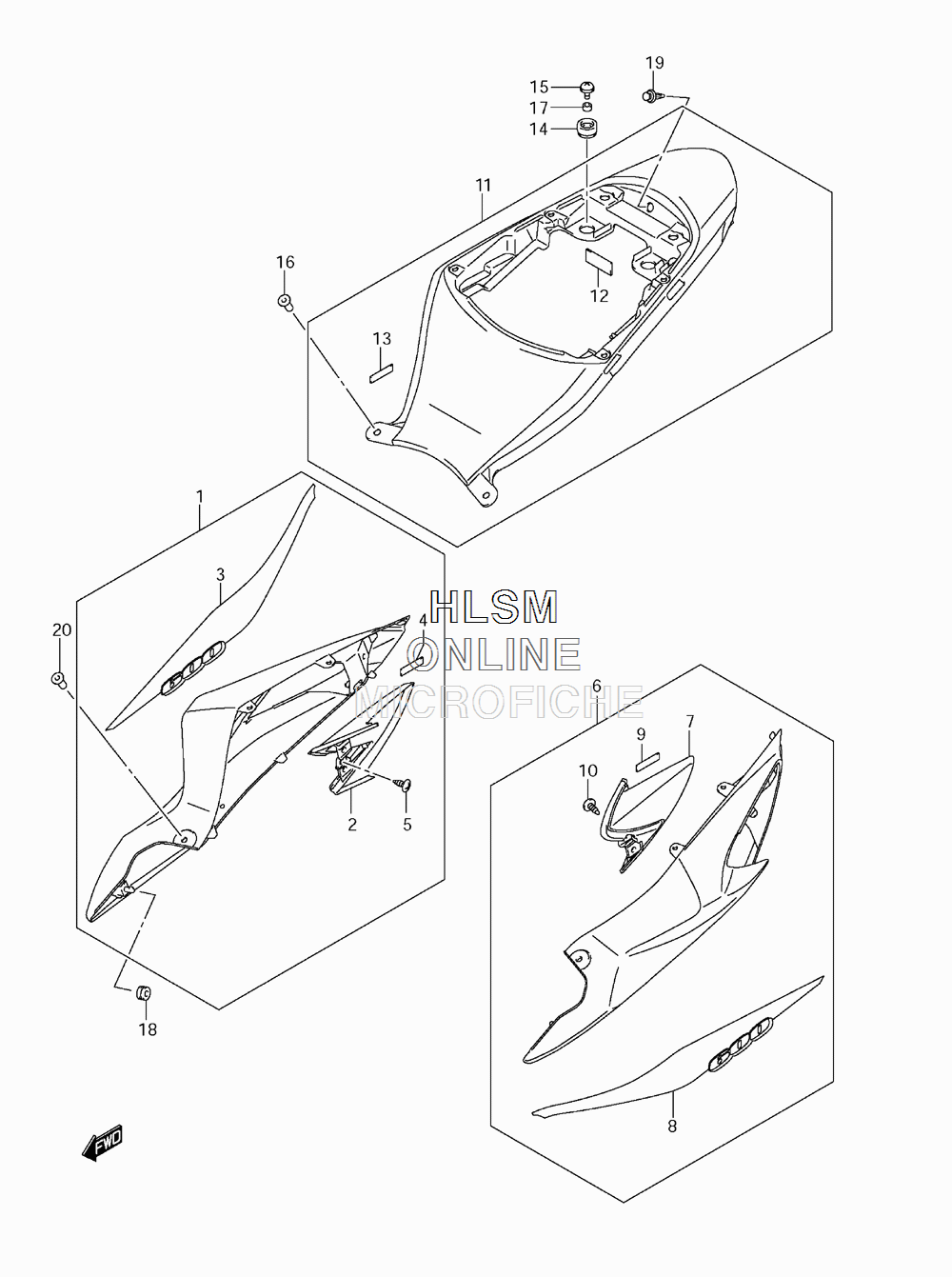

FRAME COVER (AGQ - BLUE METALLIC/PEARL GLACIER WHITE) для Suzuki GSX-R600 L3 - 2013 года выпуска
-
№АртикулНазвание
-
147100-14J30-YWW COVER, FRAME RIGHT (YWW - WHITE)COVER, FRAME RIGHT (YWW - WHITE)
-
247611-14J00 ...COVER, FRAME...COVER, FRAME
-
368135-14J20-AHA ...TAPE, FRAME COVER RIGHT...TAPE, FRAME COVER RIGHT
-
494443-06G00 ...TAPE...TAPE
-
503541-0512A ...SCREW...SCREW
-
647200-14J30-YWW COVER, FRAME LEFT (YWW - WHITE)COVER, FRAME LEFT (YWW - WHITE)
-
747621-14J00 ...COVER, FRAME...COVER, FRAME
-
868145-14J20-AHA ...TAPE, FRAME COVER LEFT...TAPE, FRAME COVER LEFT
-
994443-06G00 ...TAPE...TAPE
-
1003541-0512A ...SCREW...SCREW
-
1147300-14J00 COVER, FRAME CENTERCOVER, FRAME CENTER
-
1248128-14FA0 ...CUSHION...CUSHION
-
1394443-06G00 ...TAPE...TAPE
-
1447312-37H00 CUSHION, CENTERCUSHION, CENTER
-
1509136-06056 SCREW (6X16)SCREW (6X16)
-
1609159-05019 NUTNUT
-
1709180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
1809320-06504 CUSHIONCUSHION
-
1909409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
2002142-1520B SCREWSCREW
