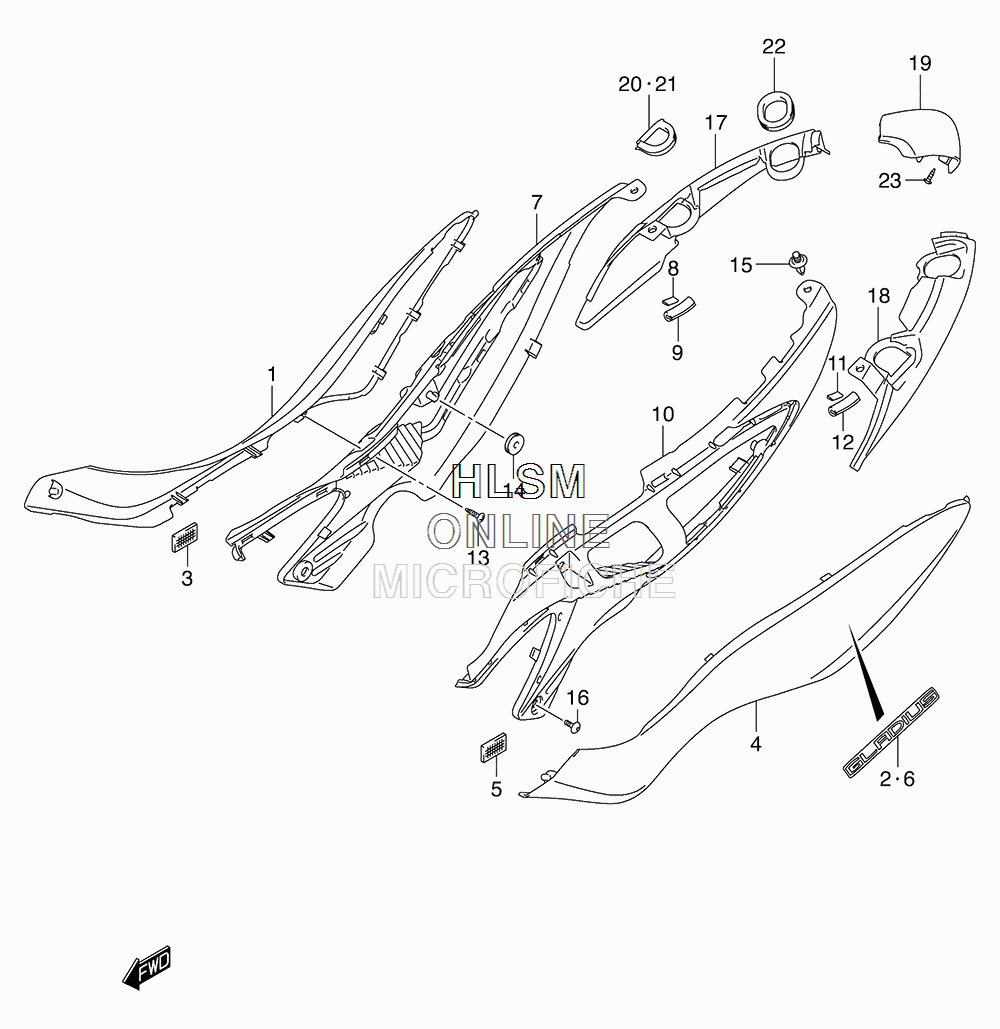

SIDE COVER для Suzuki SFV650 L3 - 2013 года выпуска
-
№АртикулНазвание
-
147111-44H00-YLF COVER, FRAME RIGHT HAND (GRAY) (FOR AA3)COVER, FRAME RIGHT HAND (GRAY) (FOR AA3)
-
147111-44H00-YKY COVER, FRAME RIGHT HAND (BLUE) (FOR AJP)COVER, FRAME RIGHT HAND (BLUE) (FOR AJP)
-
147111-44H00-YKV COVER, FRAME RIGHT HAND (BLACK) (FOR KGL)COVER, FRAME RIGHT HAND (BLACK) (FOR KGL)
-
268131-44H00-YVZ EMBLEM (RED) (FOR AA3)EMBLEM (RED) (FOR AA3)
-
268131-44H00-YWW EMBLEM (WHITE) (FOR AJP)EMBLEM (WHITE) (FOR AJP)
-
268131-44H00-DUJ EMBLEM (GRAY/BLACK) (FOR KGL)EMBLEM (GRAY/BLACK) (FOR KGL)
-
347912-37H00 FASTENERFASTENER
-
447211-44H00-YLF COVER, FRAME LEFT HAND (GRAY) (FOR AA3)COVER, FRAME LEFT HAND (GRAY) (FOR AA3)
-
447211-44H00-YKY COVER, FRAME LEFT HAND (BLUE) (FOR AJP)COVER, FRAME LEFT HAND (BLUE) (FOR AJP)
-
447211-44H00-YKV COVER, FRAME LEFT HAND (BLACK) (FOR KGL)COVER, FRAME LEFT HAND (BLACK) (FOR KGL)
-
547912-37H00 FASTENERFASTENER
-
668131-44H00-YVZ EMBLEM (RED) (FOR AA3)EMBLEM (RED) (FOR AA3)
-
668131-44H00-YWW EMBLEM (WHITE) (FOR AJP)EMBLEM (WHITE) (FOR AJP)
-
668131-44H00-DUJ EMBLEM (GRAY/BLACK) (FOR KGL)EMBLEM (GRAY/BLACK) (FOR KGL)
-
747411-44H00-291 COVER, FRAME REAR RIGHT HAND (BLACK)COVER, FRAME REAR RIGHT HAND (BLACK)
-
844263-43E00 TAPETAPE
-
994631-35F00 MOLDINGMOLDING
-
1047511-44H00-291 COVER, FRAME REAR LEFT HAND (BLACK)COVER, FRAME REAR LEFT HAND (BLACK)
-
1144263-43E00 TAPETAPE
-
1294631-35F00 MOLDINGMOLDING
-
1303541-0512A SCREWSCREW
-
1409320-08028 CUSHIONCUSHION
-
1509409-08308-5ES CLIP (BLACK)CLIP (BLACK)
-
1609139-05064 SCREW (5X13)SCREW (5X13)
-
1747311-44H00-291 COVER, REAR CENTER RIGHT HAND (BLACK)COVER, REAR CENTER RIGHT HAND (BLACK)
-
1847312-44H00-291 COVER, REAR CENTER LEFT HAND (BLACK)COVER, REAR CENTER LEFT HAND (BLACK)
-
1947313-44H00-291 COVER, CENTER (BLACK)COVER, CENTER (BLACK)
-
2047321-44H00 CUSHION, REAR RHCUSHION, REAR RH
-
2147322-44H00 CUSHION, REAR LHCUSHION, REAR LH
-
2247323-44H00 CUSHION, REAR CENTERCUSHION, REAR CENTER
-
2303541-0512A SCREWSCREW
