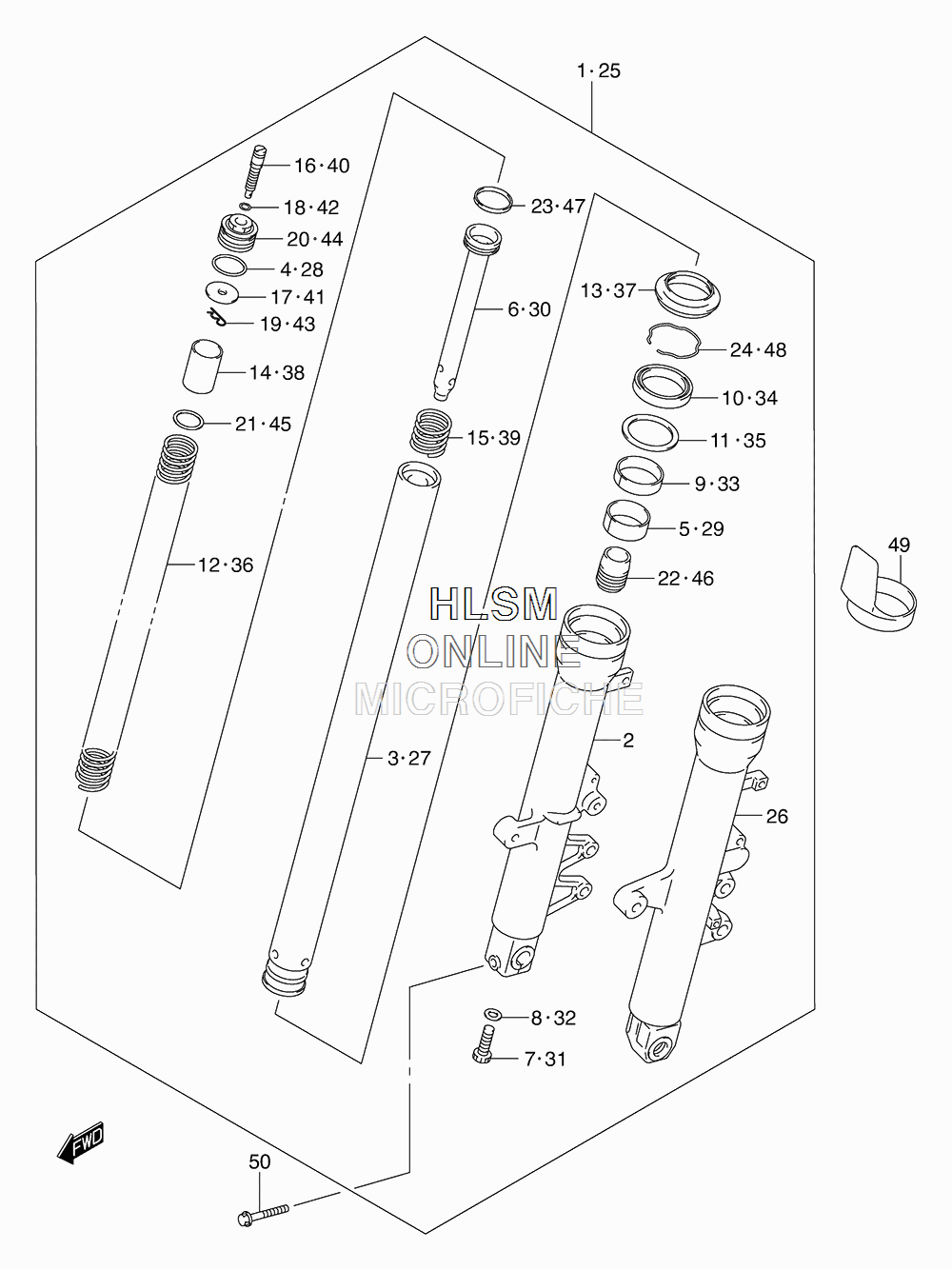

SUSPENSION - FRONT FORK для Suzuki SFV650 L3 - 2013 года выпуска
-
№АртикулНазвание
-
151103-44H20 DAMPER ASSY, FRONT FORK RIGHTDAMPER ASSY, FRONT FORK RIGHT
-
251130-44H20 ...TUBE, OUTER RH...TUBE, OUTER RH
-
351110-44H00 ...TUBE, INNER...TUBE, INNER
-
451117-12C00 ...O RING...O RING
-
551121-44H00 ...BUSH, SLIDE...BUSH, SLIDE
-
651146-17G20 ...CYLINDER...CYLINDER
-
751147-48130 ...BOLT, 8X27...BOLT, 8X27
-
851148-36011 ...GASKET...GASKET
-
951152-01H10 ...BUSH, GUIDE...BUSH, GUIDE
-
1051153-01H10 ...SEAL, OIL...SEAL, OIL
-
1151168-17G80 ...SPACER, SEAL...SPACER, SEAL
-
1251171-44H00 ...SPRING, FRONT...SPRING, FRONT
-
1351173-01H00 ...SEAL, DUST...SEAL, DUST
-
1451176-12C10 ...COLLAR, SPRING...COLLAR, SPRING
-
1551177-17G50 ...SPRING, REBOUND...SPRING, REBOUND
-
1651185-17G00 ...ADJUSTER BOLT, SPRING...ADJUSTER BOLT, SPRING
-
1751186-12C00 ...SEAT, SPRING...SEAT, SPRING
-
1809280-09005 ...O RING (D:1.9,ID:8.6)...O RING (D:1.9,ID:8.6)
-
1951188-32B00 ...PIN, SEAT SPRING...PIN, SEAT SPRING
-
2051189-12C00 ...BOLT, FORK...BOLT, FORK
-
2151192-19C00 ...JOINT, SPRING...JOINT, SPRING
-
2251195-48B30 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
2351196-12C00 ...RING, PISTON...RING, PISTON
-
2451556-38B00 ...RING, STOPPER...RING, STOPPER
-
2551104-44H20 DAMPER ASSY, FRONT FORK LEFTDAMPER ASSY, FRONT FORK LEFT
-
2651140-44H20 ...TUBE, OUTER LH...TUBE, OUTER LH
-
2751110-44H00 ...TUBE, INNER...TUBE, INNER
-
2851117-12C00 ...O RING...O RING
-
2951121-44H00 ...BUSH, SLIDE...BUSH, SLIDE
-
3051146-17G20 ...CYLINDER...CYLINDER
-
3151147-48130 ...BOLT...BOLT
-
3251148-36011 ...GASKET...GASKET
-
3351152-01H10 ...BUSH, GUIDE...BUSH, GUIDE
-
3451153-01H10 ...SEAL, OIL...SEAL, OIL
-
3551168-17G80 ...SPACER, SEAL...SPACER, SEAL
-
3651171-44H00 ...SPRING, FRONT...SPRING, FRONT
-
3751173-01H00 ...SEAL, DUST...SEAL, DUST
-
3851176-12C10 ...COLLAR, SPRING...COLLAR, SPRING
-
3951177-17G50 ...SPRING, REBOUND...SPRING, REBOUND
-
4051185-17G00 ...ADJUSTER BOLT, SPRING...ADJUSTER BOLT, SPRING
-
4151186-12C00 ...SEAT, SPRING...SEAT, SPRING
-
4209280-09005 ...O RING (D:1.9,ID:8.6)...O RING (D:1.9,ID:8.6)
-
4351188-32B00 ...PIN, SEAT SPRING...PIN, SEAT SPRING
-
4451189-12C00 ...BOLT, FORK...BOLT, FORK
-
4551192-19C00 ...JOINT, SPRING...JOINT, SPRING
-
4651195-48B30 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
4751196-12C00 ...RING, PISTON...RING, PISTON
-
4851556-38B00 ...RING, STOPPER...RING, STOPPER
-
4951201-32F00 PROTECTORPROTECTOR
-
5051166-01H10 BOLT (RIGHT)BOLT (RIGHT)
