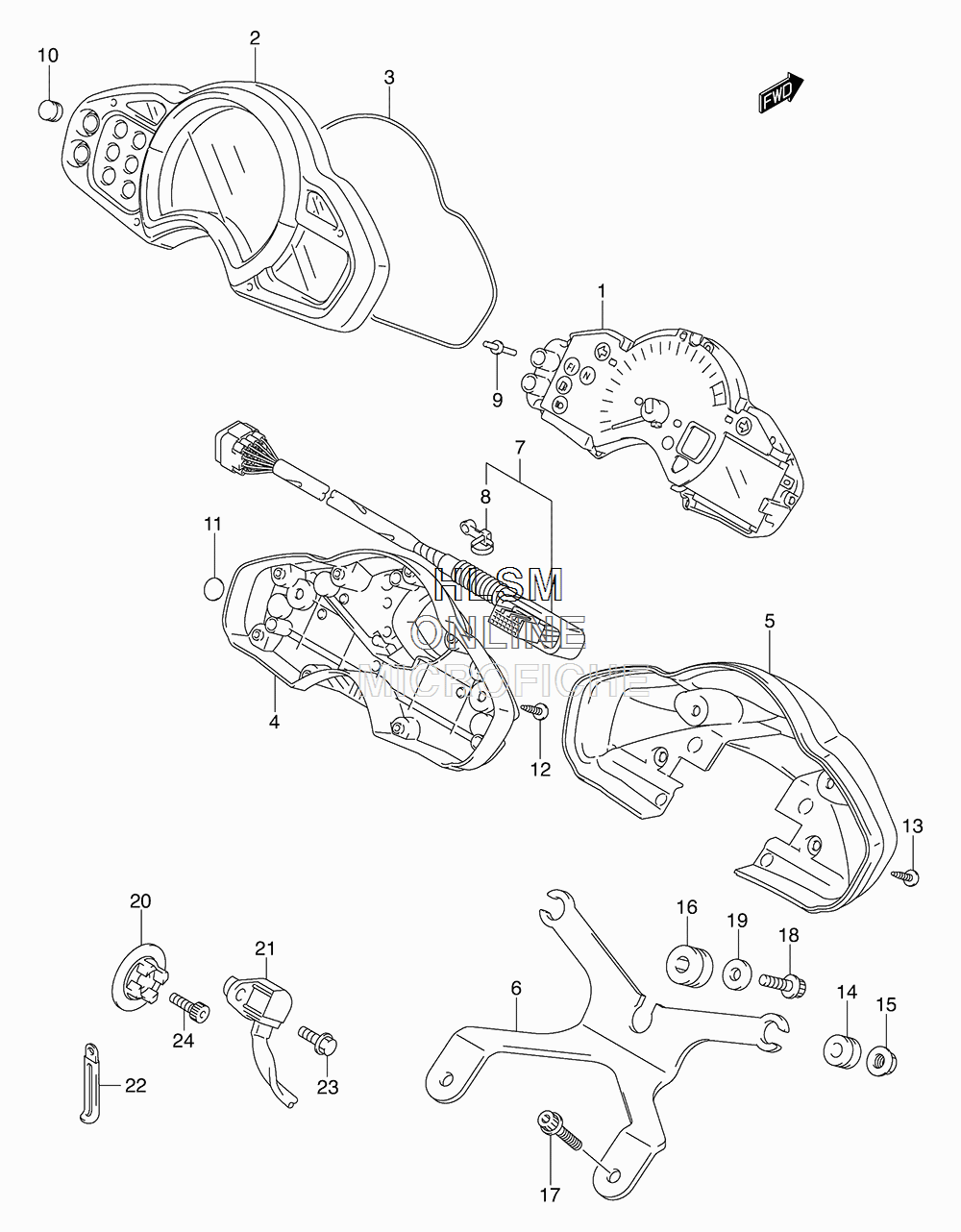

SPEEDOMETER для Suzuki SFV650 L3 - 2013 года выпуска
-
№АртикулНазвание
-
134120-44H90 SPEEDOMETERSPEEDOMETER
-
234150-44H00 CASE ASSYCASE ASSY
-
334153-44H00 PACKING RUBBERPACKING RUBBER
-
434152-44H00 CASECASE
-
534156-44H00 CASE, LOWERCASE, LOWER
-
634162-44H00 HOLDER, CASEHOLDER, CASE
-
734175-44H00 WIRE, ASSYWIRE, ASSY
-
834146-44G00 ...CLAMP, LEAD WIRE...CLAMP, LEAD WIRE
-
934124-16G00 KNOB, SPEEDOMETERKNOB, SPEEDOMETER
-
1034126-44G00 COVER, SPEEDOMETERCOVER, SPEEDOMETER
-
1134167-13E00 SEALSEAL
-
1234183-29F00 SCREW, 3X12SCREW, 3X12
-
1334149-16B00 SCREW, 4X14SCREW, 4X14
-
1434996-43410 CUSHIONCUSHION
-
1509159-05049 NUTNUT
-
1634955-13E00 CUSHION, SPEEDOMETERCUSHION, SPEEDOMETER
-
1707120-0616B BOLTBOLT
-
1834149-44H00 SCREW, SPEEDOMETERSCREW, SPEEDOMETER
-
1934181-21D00 WASHER, SPEEDOMETERWASHER, SPEEDOMETER
-
2034981-38G01 ROTOR, SPEEDROTOR, SPEED
-
2134990-47F00 SENSOR, SPEEDSENSOR, SPEED
-
2209404-06429 CLAMP (L:45)CLAMP (L:45)
-
2307120-0512B BOLTBOLT
-
2407130-0825B BOLTBOLT
