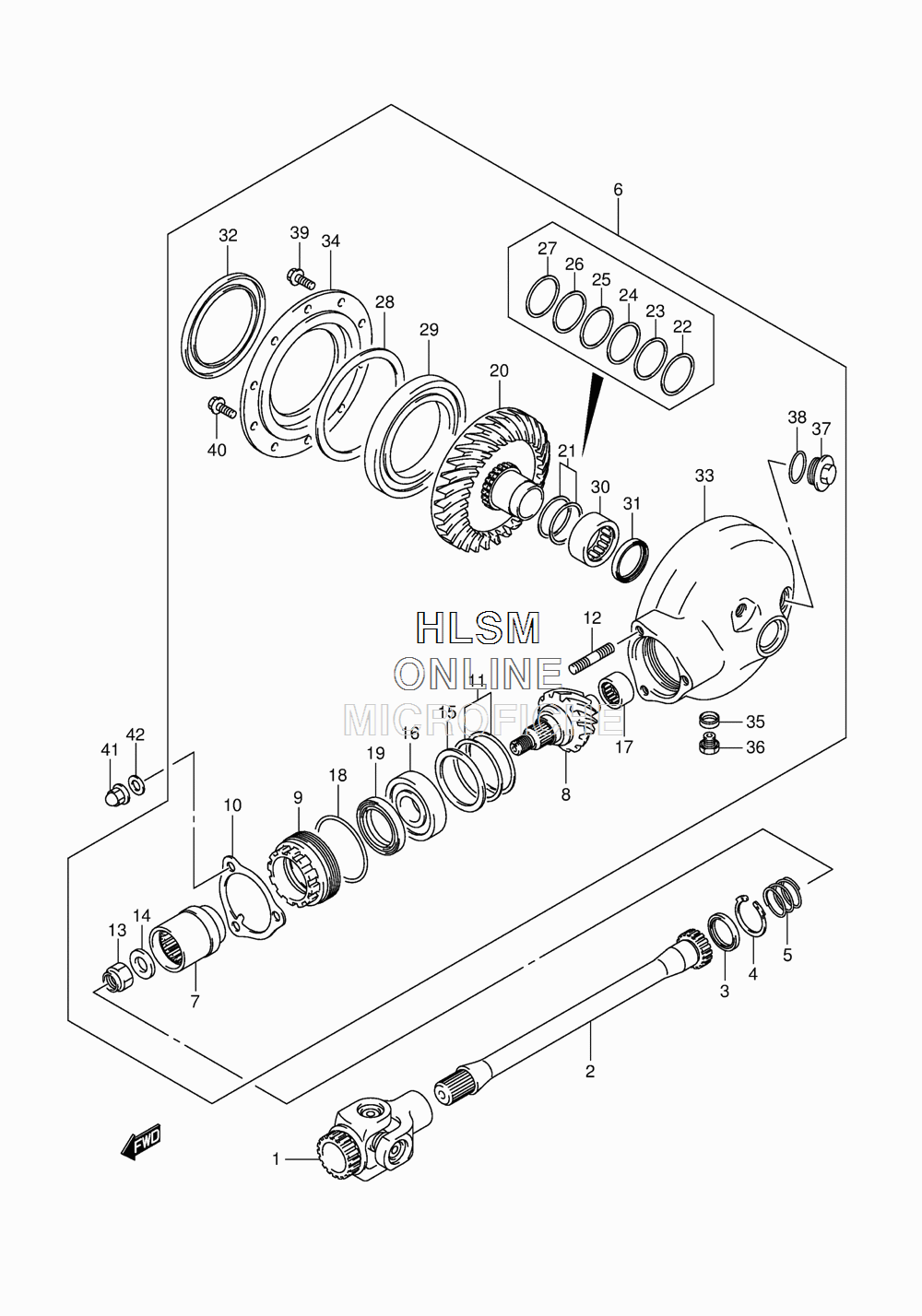

PROPELLER SHAFT/FINAL DRIVE GEAR для Suzuki VL1500BT L3 C90T - 2013 года выпуска
-
№АртикулНазвание
-
127100-48G20 YOKE, UNIVERSAL JOINTYOKE, UNIVERSAL JOINT
-
227151-40H00 SHAFT, PROPELLERSHAFT, PROPELLER
-
309283-30026 OIL SEAL (30X40.5X5.5)OIL SEAL (30X40.5X5.5)
-
409381-40003 CIRCLIPCIRCLIP
-
509440-30008 SPRINGSPRING
-
627300-48860-291 GEAR AND CASE SET, FINAL BEVEL (BLACKGEAR AND CASE SET, FINAL BEVEL (BLACK
-
727172-24A00 ...COUPLING, FINAL DRIVE GEAR...COUPLING, FINAL DRIVE GEAR
-
827311-24A10 ...GEAR, FINAL DRIVE BEVEL (NT:12)...GEAR, FINAL DRIVE BEVEL (NT:12)
-
927312-24A02 ...STOPPER, FINAL DRIVE BEARING...STOPPER, FINAL DRIVE BEARING
-
1027313-38B00 ...PLATE, BEARING STOPPER NO. 1...PLATE, BEARING STOPPER NO. 1
-
1027313-38B10 ...PLATE, BEARING STOPPER NO. 2...PLATE, BEARING STOPPER NO. 2
-
1127445-24810 ...SHIM SET, FINAL DRIVE GEAR...SHIM SET, FINAL DRIVE GEAR
-
1209108-10106 ...STUD BOLT...STUD BOLT
-
1309159-16003 ...NUT...NUT
-
1409160-16029 ...WASHER (16X29X4)...WASHER (16X29X4)
-
1509160-54001 ...WASHER (54X68X1.5)...WASHER (54X68X1.5)
-
1609262-28023 ...BEARING (28X68X18)...BEARING (28X68X18)
-
1709263-20062 ...BEARING (20X34X18)...BEARING (20X34X18)
-
1809280-64003 ...O RING (D:3.1,ID:63.9)...O RING (D:3.1,ID:63.9)
-
1909283-47002 ...OIL SEAL (45.5X58X7)...OIL SEAL (45.5X58X7)
-
2027320-48G00 ...GEAR, FINAL DRIVEN BEVEL (NT:32)...GEAR, FINAL DRIVEN BEVEL (NT:32)
-
2127326-48811 ...SHIM SET, FINAL DRIVEN LEFT HAND...SHIM SET, FINAL DRIVEN LEFT HAND
-
2209181-40011 ...SHIM (40X46.8X0.95)...SHIM (40X46.8X0.95)
-
2309181-40013 ...SHIM (40X46.8X1.05)...SHIM (40X46.8X1.05)
-
2409181-40014 ...SHIM (40X46.8X1.1)...SHIM (40X46.8X1.1)
-
2509181-40176 ...SHIM (40X50X1.2)...SHIM (40X50X1.2)
-
2609181-40182 ...SHIM (40X50X1.4)...SHIM (40X50X1.4)
-
2709181-40212 ...SHIM (40X50X1.5)...SHIM (40X50X1.5)
-
2827327-38810 ...SHIM SET, FINAL DRIVE RIGHT HAND...SHIM SET, FINAL DRIVE RIGHT HAND
-
2909262-85001 ....BEARING (85X130X14)....BEARING (85X130X14)
-
3009263-40016 ...BEARING (40X50X20)...BEARING (40X50X20)
-
3109283-38026 ...OIL SEAL (38X46X6)...OIL SEAL (38X46X6)
-
3209289-85001 ...OIL SEAL (85X110X11)...OIL SEAL (85X110X11)
-
3327450-48G70-291 ...CASE, FINAL GEAR (BLACK)...CASE, FINAL GEAR (BLACK)
-
3427461-38B00 ...CASE, FINAL GEAR BEARING...CASE, FINAL GEAR BEARING
-
3509168-14002 ...GASKET (13.8X18.8X4.8)...GASKET (13.8X18.8X4.8)
-
3609247-14002 ...PLUG (MAGNET)...PLUG (MAGNET)
-
3709259-30007 ...PLUG (30X9)...PLUG (30X9)
-
3809280-26006 ...O-RING (D:3.1,ID:26.4)...O-RING (D:3.1,ID:26.4)
-
3901550-0825A ...BOLT...BOLT
-
4001550-1025A ...BOLT...BOLT
-
4109159-10026 NUTNUT
-
4209164-10008 WASHERWASHER
