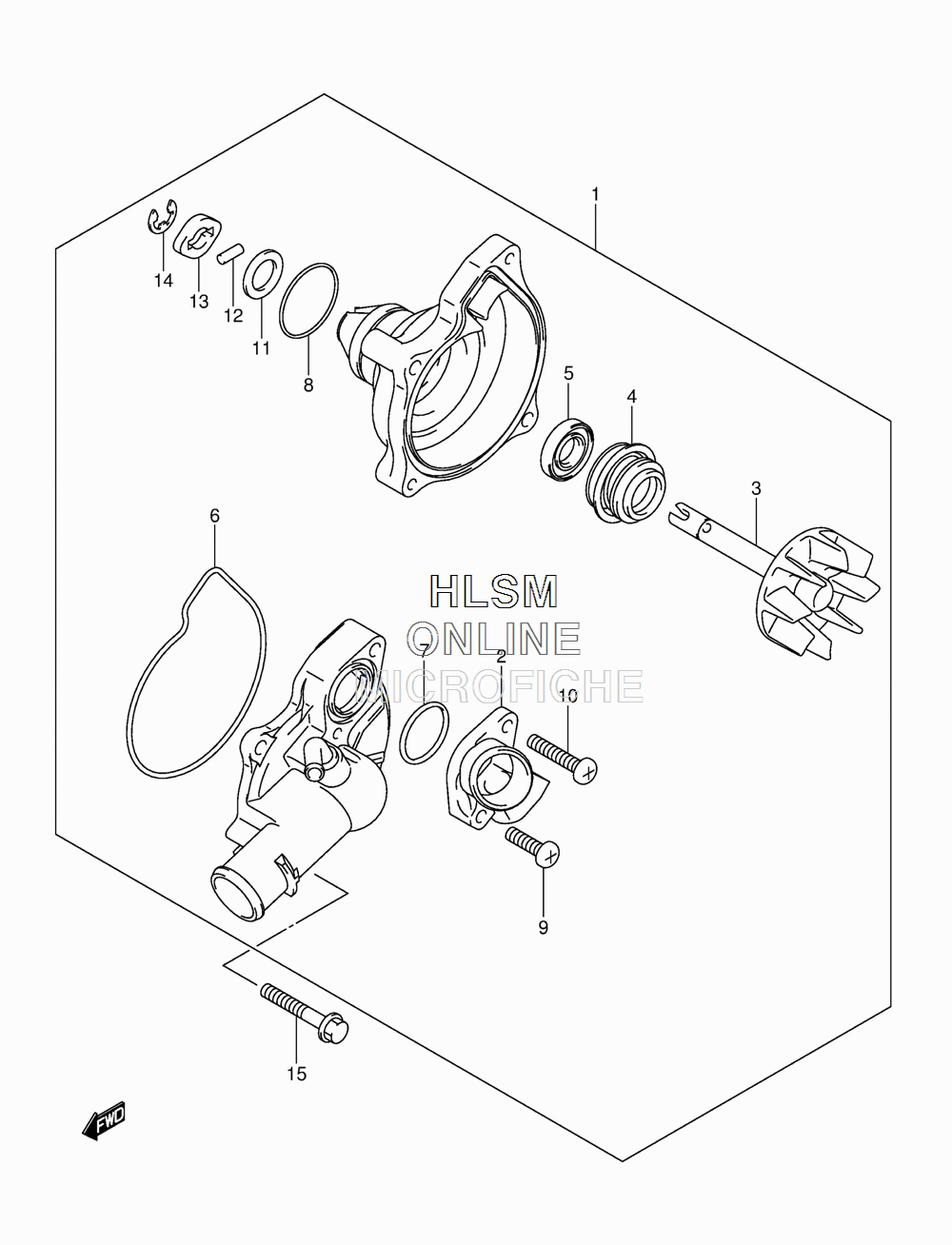

WATER PUMP для Suzuki VL1500BT L3 C90T - 2013 года выпуска
-
№АртикулНазвание
-
117400-40H00 PUMP ASSY, WATERPUMP ASSY, WATER
-
217412-40H00 ...CONNECTOR...CONNECTOR
-
317491-40H00 ...IMPELLER...IMPELLER
-
417470-02F10 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
517461-48G00 ...SEAL, OIL...SEAL, OIL
-
617418-40H00 ...O RING...O RING
-
717417-38A00 ...O RING...O RING
-
817435-33400 ...O RING...O RING
-
902112-0620A ...SCREW...SCREW
-
1002112-0635A ...SCREW...SCREW
-
1117432-07G00 ...WASHER...WASHER
-
1217482-03G00 ...PIN...PIN
-
1317432-11H00 ...CAP...CAP
-
1408332-1108A ...E RING...E RING
-
1501547-0645A BOLTBOLT
