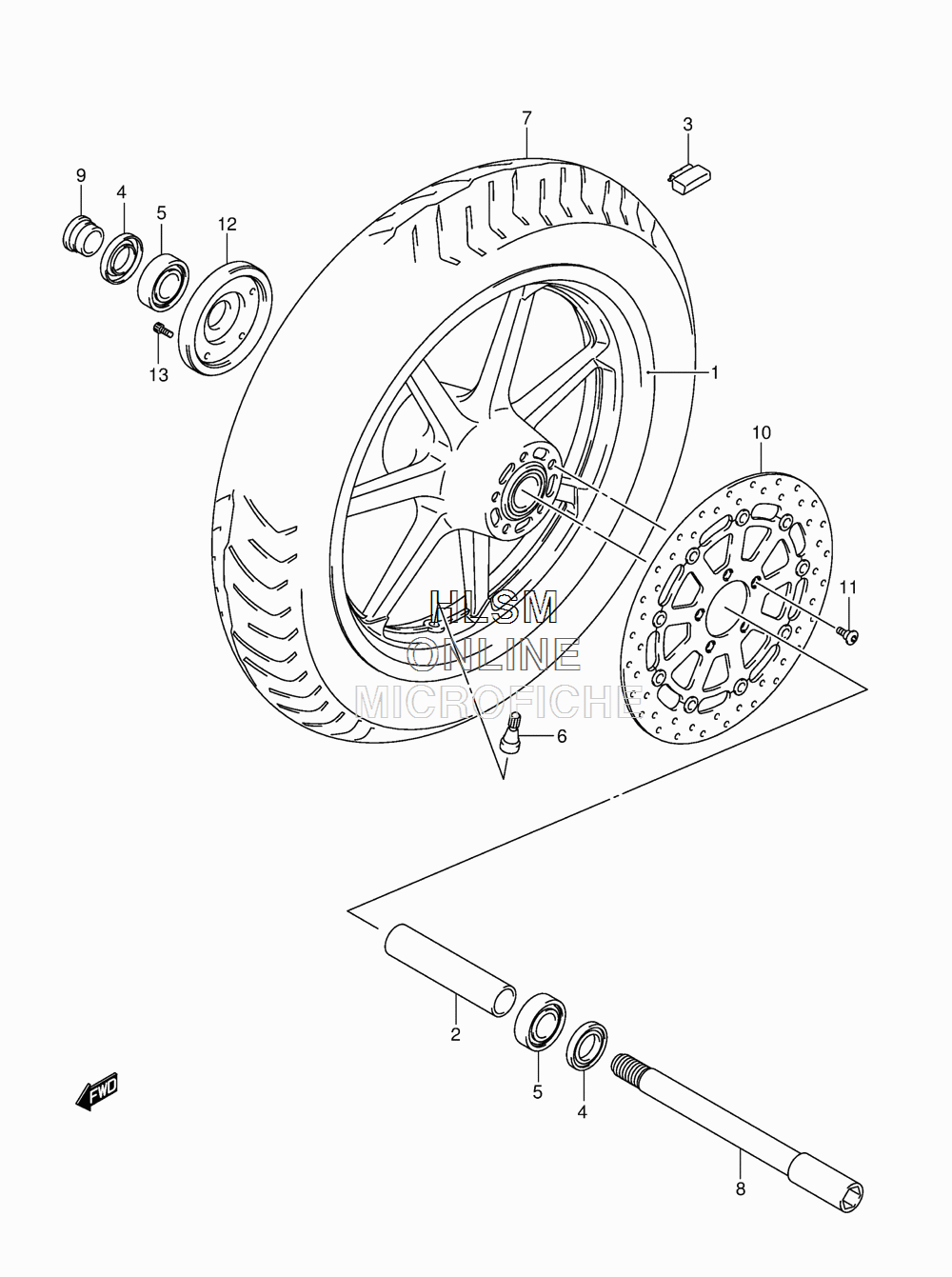

WHEEL - FRONT для Suzuki VL1500BT L3 C90T - 2013 года выпуска
-
№АртикулНазвание
-
154111-06J00-019 WHEEL, FRONT (17M/CXMT3.00) (019 -BLACK)WHEEL, FRONT (17M/CXMT3.00) (019 -BLACK)
-
254731-48G00 SPACER, FRONT WHEEL BEARINGSPACER, FRONT WHEEL BEARING
-
355411-22H00 BALANCER, WHEEL NO.1BALANCER, WHEEL NO.1
-
355412-22H00 BALANCER, WHEEL NO.2BALANCER, WHEEL NO.2
-
355413-22H00 BALANCER, WHEEL NO.3BALANCER, WHEEL NO.3
-
409285-32004 OIL SEAL (32X52X7)OIL SEAL (32X52X7)
-
509262-25167 BEARING (25X52X15)BEARING (25X52X15)
-
643130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
755110-06J00 TIRE, FRONT (130/80R17M/C 65H)TIRE, FRONT (130/80R17M/C 65H)
-
854711-48G00 AXLE, FRONTAXLE, FRONT
-
954741-48G00 SPACER, FRONT AXLE LEFT HANDSPACER, FRONT AXLE LEFT HAND
-
1059220-06J00 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
1109106-08160 BOLT (8X21)BOLT (8X21)
-
1254139-06J00 COUNTER, WEIGHTCOUNTER, WEIGHT
-
1307130-0620A BOLT, STATORBOLT, STATOR
