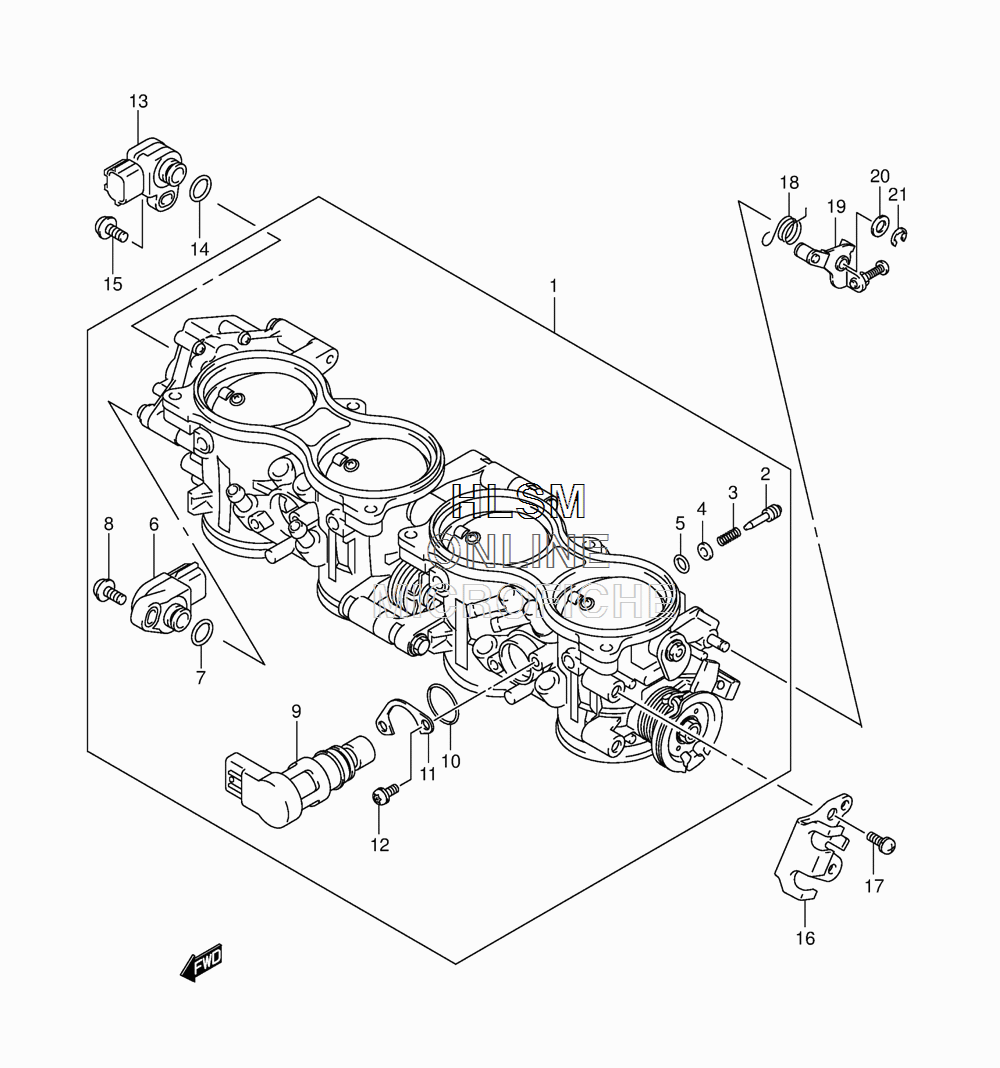

CARBURETOR - THROTTLE BODY для Suzuki GSX-1000R L4 - 2014 года выпуска
-
№АртикулНазвание
-
113406-47H20 THROTTLE BODYTHROTTLE BODY
-
213269-18G00 SCREW, AIR ADJUSTSCREW, AIR ADJUST
-
313271-43E00 SPRINGSPRING
-
413291-26E00 WASHERWASHER
-
513295-26E00 O RINGO RING
-
613580-18G00 SENSOR ASSY, MAINSENSOR ASSY, MAIN
-
713575-40F00 O RINGO RING
-
813605-40F00 SCREWSCREW
-
918117-15H11 VALVE, ISCVALVE, ISC
-
1018119-05H00 O RINGO RING
-
1113428-15H00 PLATEPLATE
-
1213605-15H00 SCREWSCREW
-
1313580-47H00 SENSOR ASSY, SUBSENSOR ASSY, SUB
-
1413575-40F00 O RINGO RING
-
1513605-40F00 SCREWSCREW
-
1613565-21H00 PLATE, STAYPLATE, STAY
-
1713601-21H00 SCREWSCREW
-
1813426-21H00 SPRINGSPRING
-
1913420-47H00 LEVER, LINKLEVER, LINK
-
2013427-35F10 WASHERWASHER
-
2113424-35F10 E CLIPE CLIP
