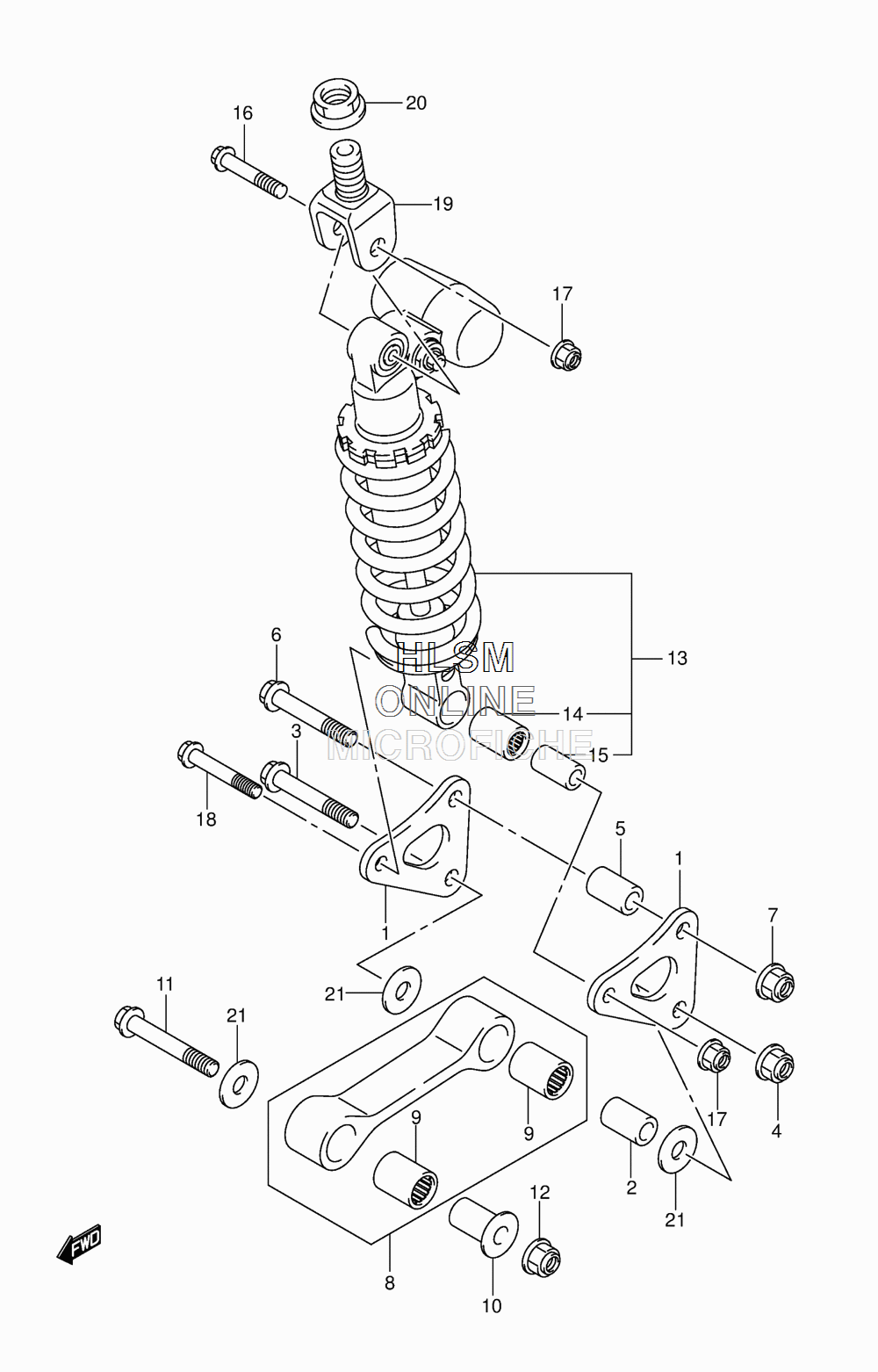

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki GSX-1000R L4 - 2014 года выпуска
-
№АртикулНазвание
-
162611-47H00 LEVER, REAR CUSHIONLEVER, REAR CUSHION
-
262317-27C10 SPACER, REARSPACER, REAR
-
362658-47H00 BOLT, LOWERBOLT, LOWER
-
409159-12056 NUTNUT
-
562317-44B00 SPACER, UPPERSPACER, UPPER
-
662658-47H00 BOLT, UPPERBOLT, UPPER
-
709159-12056 NUTNUT
-
862600-47810 ROD SET, REAR CUSHION LEVERROD SET, REAR CUSHION LEVER
-
909263-20074 BEARING (20X27X32)BEARING (20X27X32)
-
1062647-47H00 SPACER, FRONTSPACER, FRONT
-
1162621-47H00 BOLT, RODBOLT, ROD
-
1209159-12056 NUTNUT
-
1362100-47850-019 ABSORBER ASSY, REAR SHOCK (BLACK)ABSORBER ASSY, REAR SHOCK (BLACK)
-
1409263-17046 BEARING (17X24X32)BEARING (17X24X32)
-
1562317-47H00 SPACER, SHOCK ABS LOWERSPACER, SHOCK ABS LOWER
-
1609103-10143 BOLT (10X55)BOLT (10X55)
-
1709159-10115 NUTNUT
-
1862313-47H00 BOLTBOLT
-
1962993-47H00 BRACKET, ABSORBERBRACKET, ABSORBER
-
2062994-47H00 NUT RR SHOCK ABS BRACKETNUT RR SHOCK ABS BRACKET
-
2109160-12037 WASHER (12X34X1)WASHER (12X34X1)
