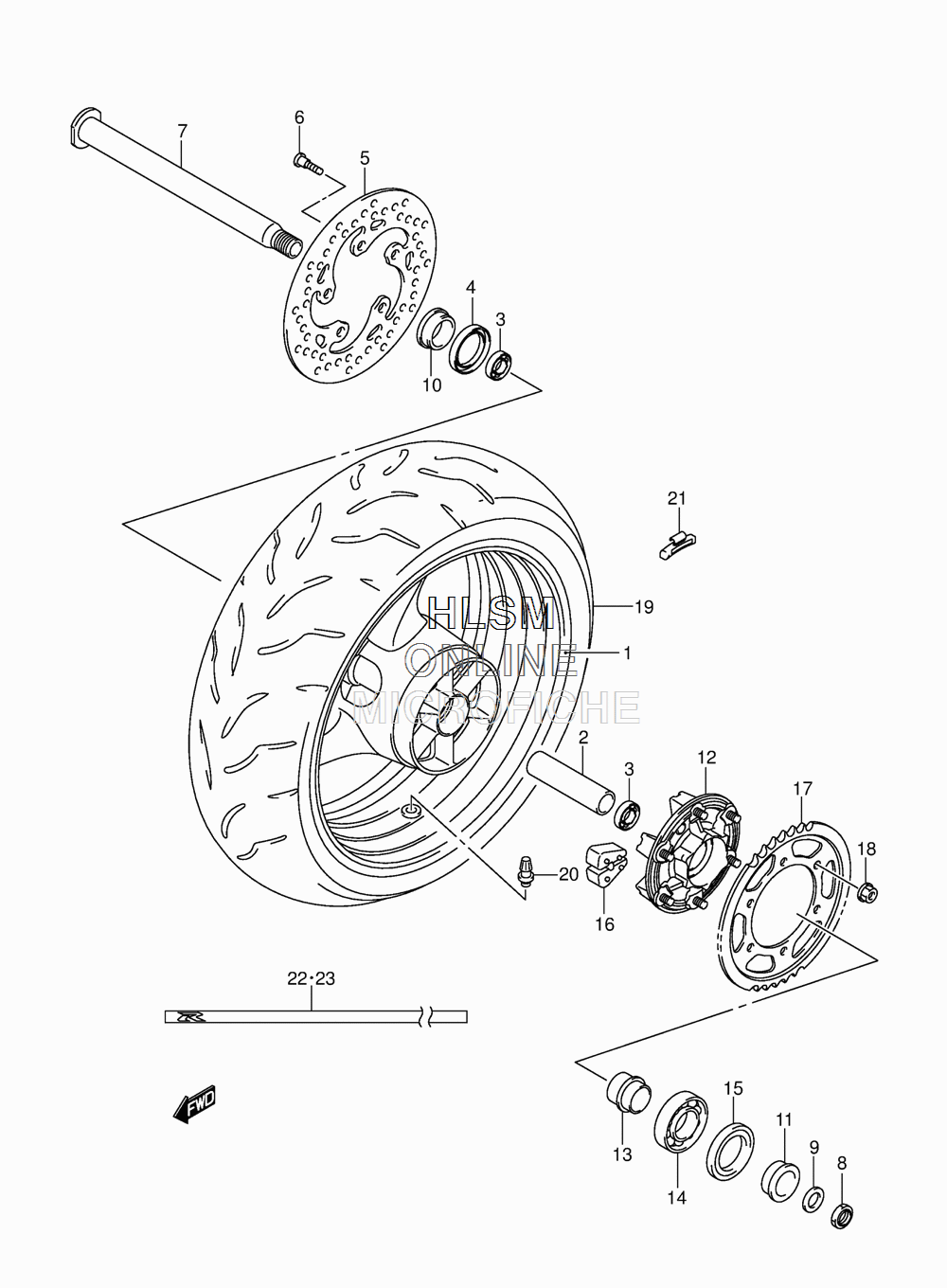

WHEEL - REAR для Suzuki GSX-1000R L4 - 2014 года выпуска
-
№АртикулНазвание
-
164111-47H00-019 WHEEL, REAR (17M/CXMT6.00) (BLACK)WHEEL, REAR (17M/CXMT6.00) (BLACK)
-
264731-35F10 SPACER, HUB BEARINGSPACER, HUB BEARING
-
309262-28052 BEARING (28X52X12)BEARING (28X52X12)
-
409284-37001 OIL SEAL (37X52X8)OIL SEAL (37X52X8)
-
569211-18G00 DISC, REAR BRAKEDISC, REAR BRAKE
-
609106-08160 BOLT (8X21)BOLT (8X21)
-
764711-49G00 AXLE, REARAXLE, REAR
-
809159-25003 NUTNUT
-
909160-25070 WASHER (25.2X42X3.2)WASHER (25.2X42X3.2)
-
1064741-35F00 SPACER, AXLE RIGHT HANDSPACER, AXLE RIGHT HAND
-
1164751-47H00 SPACER, AXLE LEFT HANDSPACER, AXLE LEFT HAND
-
1264610-47H00 DRUM, REAR SPROCKETDRUM, REAR SPROCKET
-
1364733-35F00 RETAINER, SPROCKET DRUMRETAINER, SPROCKET DRUM
-
1409262-32022 BEARING (32X65X17)BEARING (32X65X17)
-
1509285-39001 OIL SEAL (39X65X7)OIL SEAL (39X65X7)
-
1664651-47H10 ABSORBER, HUB SHOCKABSORBER, HUB SHOCK
-
1764511-47H10 SPROCKET, REARSPROCKET, REAR
-
1808319-3110A NUTNUT
-
1965110-47H10 TIRE, REAR, 190/50ZR17 M/C (73W) (BTIRE, REAR, 190/50ZR17 M/C (73W) (B
-
2043130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
2155411-22H00 BALANCER (10G)BALANCER (10G)
-
2155412-22H00 BALANCER (20G)BALANCER (20G)
-
2155413-22H00 BALANCER (30G)BALANCER (30G)
-
2268251-47H00-AR9 TAPE, RIGHT HAND (RED/BLACK)TAPE, RIGHT HAND (RED/BLACK)
-
2368252-47H00-AR9 TAPE, LEFT HAND (RED/BLACK)TAPE, LEFT HAND (RED/BLACK)
