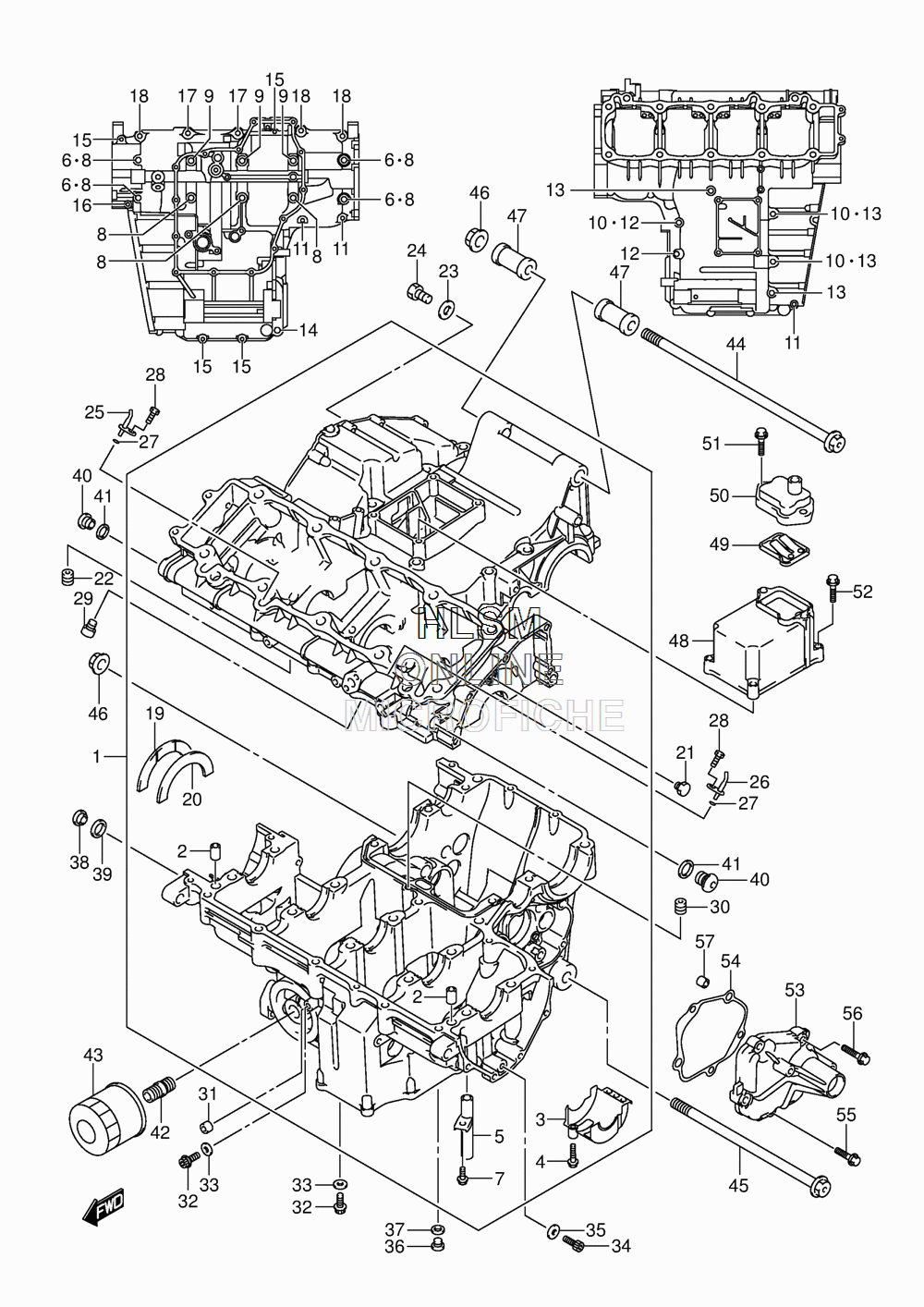

CRANKCASE для Suzuki GSX-1300R L4 - 2014 года выпуска
-
№АртикулНазвание
-
111302-24820 CRANKCASE SETCRANKCASE SET
-
211319-33E50 PINPIN
-
311323-24F10 SEPARATOR, OILSEPARATOR, OIL
-
401547-0625A BOLTBOLT
-
511328-24F00 UNION, BREATHER OILUNION, BREATHER OIL
-
609168-10031 GASKET (10.2X20X2.3)GASKET (10.2X20X2.3)
-
701547-0612A BOLTBOLT
-
809103-09008 BOLT (9X95)BOLT (9X95)
-
909103-09010 BOLT (9X115)BOLT (9X115)
-
1009168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
1101547-0650A BOLTBOLT
-
1201550-0865A BOLTBOLT
-
1301550-0880A BOLTBOLT
-
1401550-1060A BOLTBOLT
-
1501547-0640A BOLTBOLT
-
1601547-0660A BOLTBOLT
-
1709103-08155 BOLT (8X60)BOLT (8X60)
-
1809103-08355 BOLT (8X50)BOLT (8X50)
-
1912228-24F00-0D0 BEARING, CRANK THRUST (GREEN) (RIGHT)BEARING, CRANK THRUST (GREEN) (RIGHT)
-
2012228-24F00-0A0 BEARING, CRANK THRUST (RED) (LEFT)BEARING, CRANK THRUST (RED) (LEFT)
-
2012228-24F00-0B0 BEARING, CRANK THRUST (BLACK)BEARING, CRANK THRUST (BLACK)
-
2012228-24F00-0C0 BEARING, CRANK THRUST (BLUE)BEARING, CRANK THRUST (BLUE)
-
2012228-24F00-0D0 BEARING, CRANK THRUST (GREEN)BEARING, CRANK THRUST (GREEN)
-
2012228-24F00-0E0 BEARING, CRANK THRUST (YELLOW)BEARING, CRANK THRUST (YELLOW)
-
2012228-24F00-0F0 BEARING, CRANK THRUST (WHITE)BEARING, CRANK THRUST (WHITE)
-
2111393-33E01 JET, MAGNETO COOLINGJET, MAGNETO COOLING
-
2209493-20012 JET, AIR (100)JET, AIR (100)
-
2309168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
2407120-0612B PLUGPLUG
-
2511390-34E00 JET, PISTON COOLING RIGHT HANDJET, PISTON COOLING RIGHT HAND
-
2611390-34E10 JET, PISTON COOLING LEFT HANDJET, PISTON COOLING LEFT HAND
-
2709280-04004 O-RING (D:1.2,ID:4)O-RING (D:1.2,ID:4)
-
2809106-06075 BOLT (6X12)BOLT (6X12)
-
2909106-06076 BOLT (6X10)BOLT (6X10)
-
3009493-36006 JET, AIR (180)JET, AIR (180)
-
3111532-46E00 JET, OIL GALLERYJET, OIL GALLERY
-
3207120-0612B PLUGPLUG
-
3309168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
3407130-0816B PLUGPLUG
-
3509168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
3609248-10010 PLUG (10X10)PLUG (10X10)
-
3709168-10002 GASKET (10X14X3.6)GASKET (10X14X3.6)
-
3809248-16012 PLUG (16X8)PLUG (16X8)
-
3909168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
4009248-14012 PLUG (14X12)PLUG (14X12)
-
4109168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
4216591-06B01 UNION, OIL FILTER STANDUNION, OIL FILTER STAND
-
4316510-07J00 FILTER ASSY, ENGINE OILFILTER ASSY, ENGINE OIL
-
4409103-12120 BOLT (12X320)BOLT (12X320)
-
4509103-12119 BOLT (12X243)BOLT (12X243)
-
4609159-12054 NUTNUT
-
4711611-24F00 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
4811331-15H00 COVER, BREATHERCOVER, BREATHER
-
4913150-01H01 VALVE ASSY, BREATHER REEDVALVE ASSY, BREATHER REED
-
5011372-21H00 COVER, REED VALVECOVER, REED VALVE
-
5101547-0620A BOLTBOLT
-
5201547-0630A BOLTBOLT
-
5311383-15H00 COVER, GEAR SHIFTCOVER, GEAR SHIFT
-
5411485-24F00 GASKETGASKET
-
5501547-0625A BOLTBOLT
-
5601547-0635A BOLTBOLT
-
5704211-09149 PIN 9X14PIN 9X14
