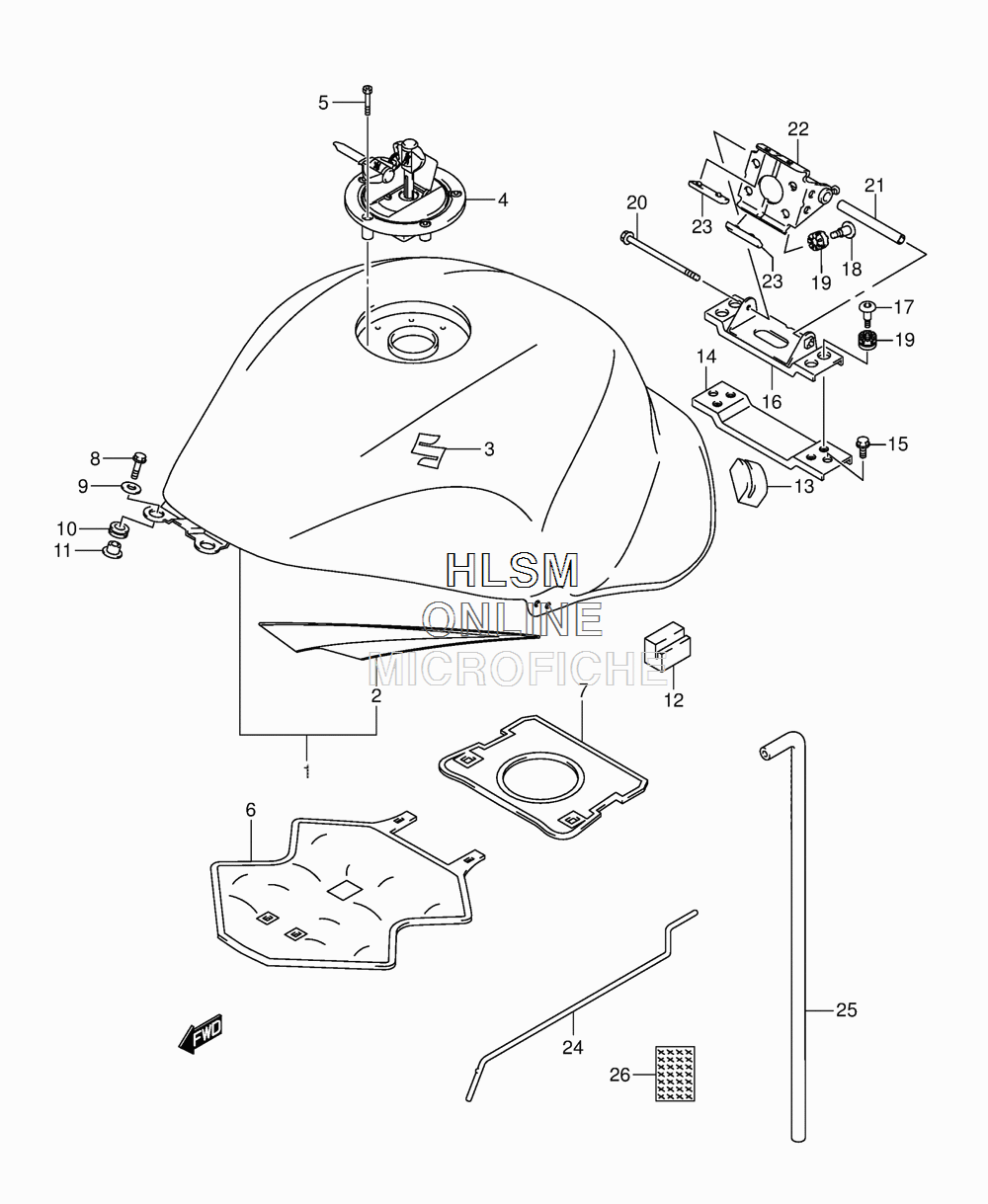

FUEL TANK (CALIF.) для Suzuki GSX-1300R L4 - 2014 года выпуска
-
№АртикулНазвание
-
144100-15HB0-6UX TANK ASSY, FUEL (BLACK) FOR AA3TANK ASSY, FUEL (BLACK) FOR AA3
-
144100-15HB0-YVZ TANK ASSY, FUEL (RED) FOR AGSTANK ASSY, FUEL (RED) FOR AGS
-
144100-15HB0-YKY TANK ASSY, FUEL (BLUE) FOR AJPTANK ASSY, FUEL (BLUE) FOR AJP
-
268110-15H20-AV8 TAPE SET FOR 6UX FOR BLACKTAPE SET FOR 6UX FOR BLACK
-
268110-15H20-AV9 TAPE SET FOR YVZ FOR REDTAPE SET FOR YVZ FOR RED
-
268110-15H20-AWF TAPE SET FOR YKY FOR WHITETAPE SET FOR YKY FOR WHITE
-
368111-47HA0 EMBLEM, ''S''EMBLEM, ''S''
-
444200-16870 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
509106-05017 BOLT (5X20)BOLT (5X20)
-
644191-15H00 SHIELD, FUEL TANK HEAT NO.1SHIELD, FUEL TANK HEAT NO.1
-
744191-15H10 SHIELD, FUEL TANK HEAT NO.2SHIELD, FUEL TANK HEAT NO.2
-
809139-06029 SCREW (6X25)SCREW (6X25)
-
909160-06012 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
1044511-16G00 CUSHIONCUSHION
-
1144512-16G00 SPACERSPACER
-
1244541-24F00 CUSHION, SIDECUSHION, SIDE
-
1344543-15H00 CUSHION, REARCUSHION, REAR
-
1444555-15H00 BRACKET, FUEL TANK REAR NO.3BRACKET, FUEL TANK REAR NO.3
-
1501550-0816A BOLTBOLT
-
1644550-15H01 BRACKET, FUEL TANK REAR NO.2BRACKET, FUEL TANK REAR NO.2
-
1709139-06191 SCREW (6X22)SCREW (6X22)
-
1809139-06191 SCREW (6X22)SCREW (6X22)
-
1909320-08071 CUSHIONCUSHION
-
2007120-0695B BOLTBOLT
-
2144561-18G00 SPACER, FUEL TANK REARSPACER, FUEL TANK REAR
-
2244530-15H01 BRACKET, FUEL TANK REAR NO.1BRACKET, FUEL TANK REAR NO.1
-
2345149-44G00 CUSHION, BRACKETCUSHION, BRACKET
-
2444574-35F00 STAYSTAY
-
2544423-15H00 HOSE, DRAINHOSE, DRAIN
-
2644427-15H10 SHIELD, DRAIN HOSE HEATSHIELD, DRAIN HOSE HEAT
