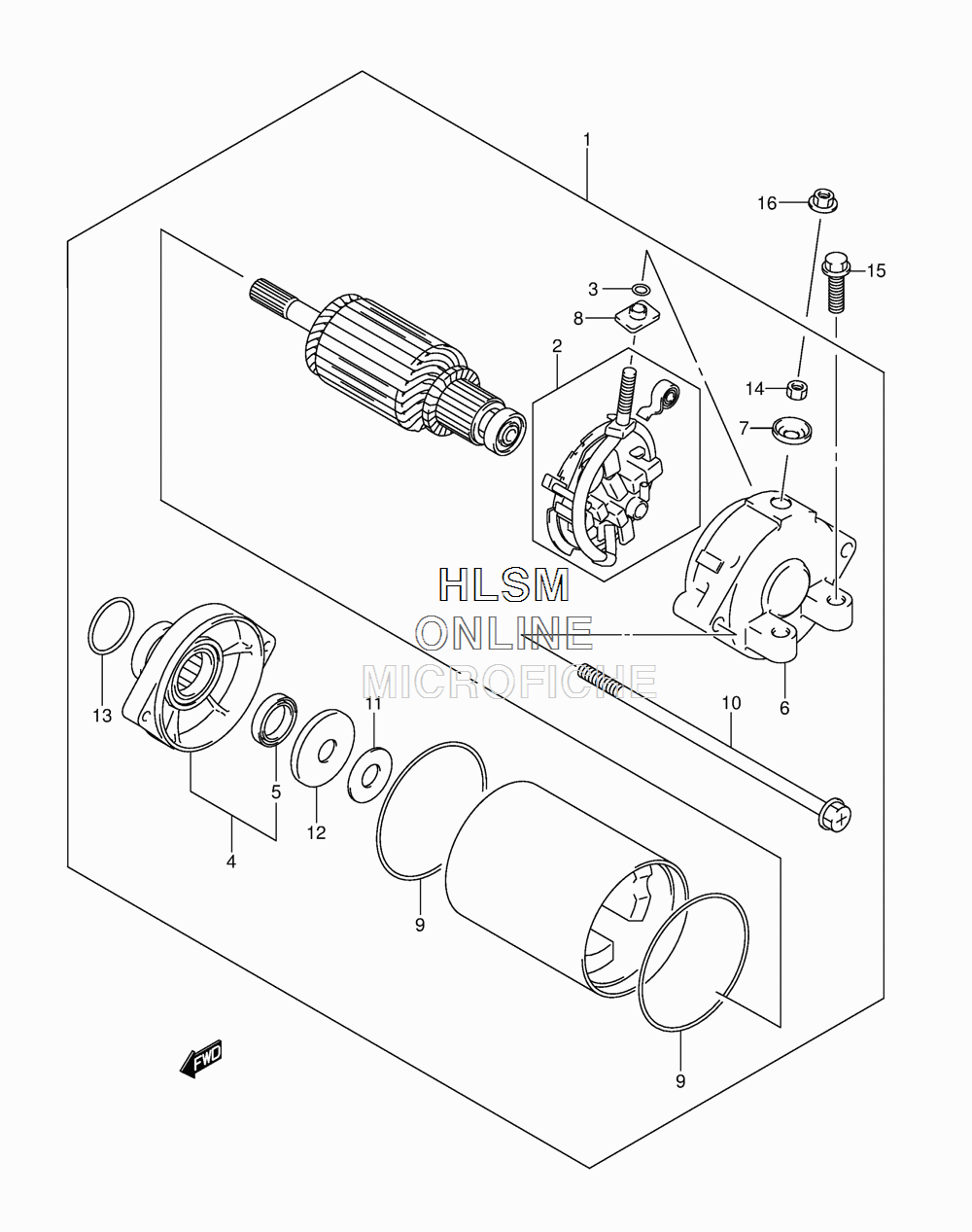

STARTING MOTOR для Suzuki GSX-1300R L4 - 2014 года выпуска
-
№АртикулНазвание
-
131100-15H20 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231132-45C00 HOLDER SET, BRUSHHOLDER SET, BRUSH
-
331143-38300 O-RINGO-RING
-
431150-15H20 HOUSING ASSY, STARTERHOUSING ASSY, STARTER
-
531153-49210 OIL SEALOIL SEAL
-
631171-24F00 FRAME, STARTER ENDFRAME, STARTER END
-
731172-38300 BUSHINGBUSHING
-
831173-88C00 BUSHINGBUSHING
-
931264-44110 O-RINGO-RING
-
1031281-24F00 BOLTBOLT
-
1131361-38300 SHIMSHIM
-
1231361-43400 WASHERWASHER
-
1309280-24003 O-RING (D:3,ID:24.5)O-RING (D:3,ID:24.5)
-
1408310-00067 NUTNUT
-
1509103-06212 BOLT (6X25)BOLT (6X25)
-
1608361-3506A NUTNUT
