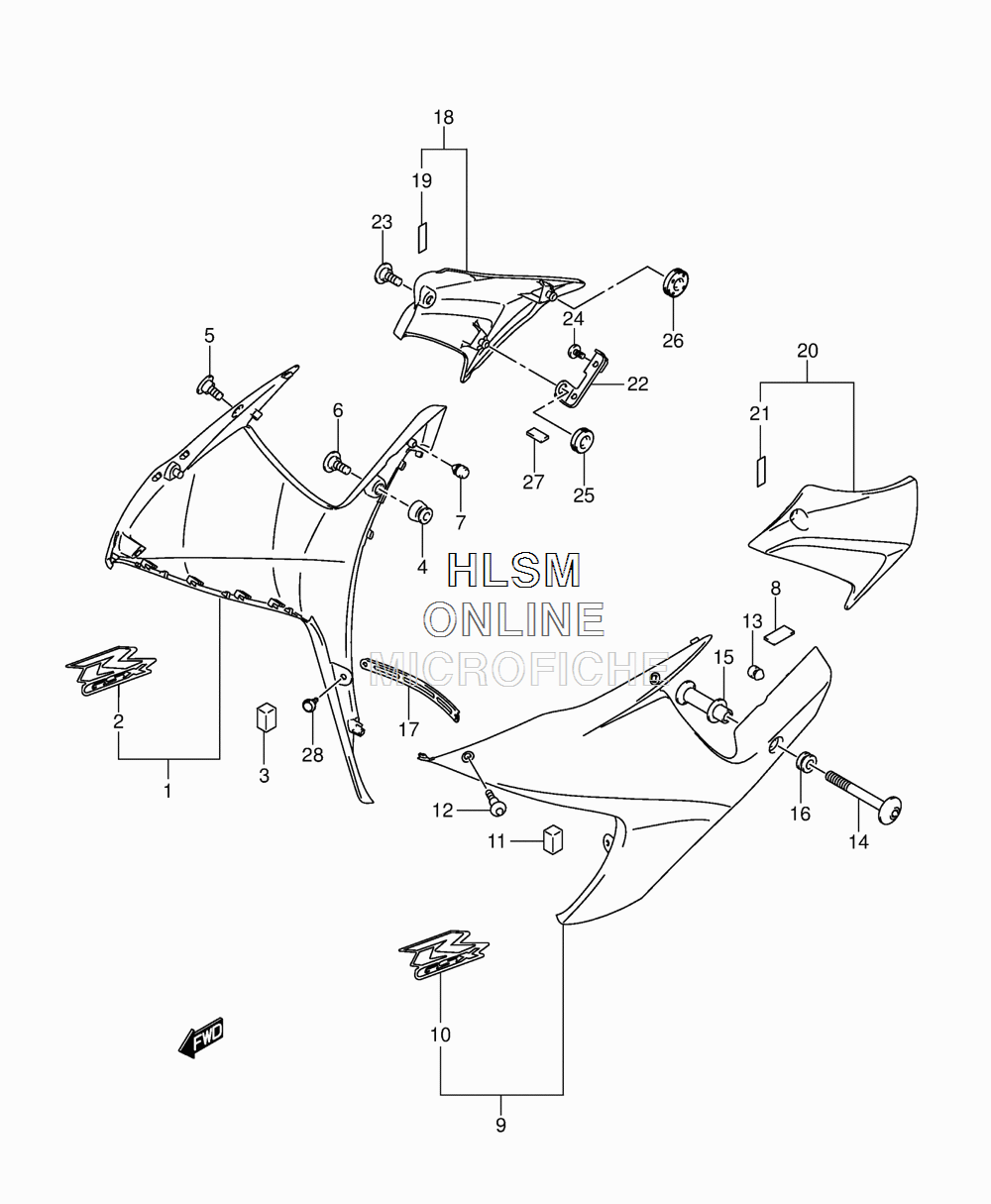

SIDE COWLING (AGQ - BLUE/WHITE) для Suzuki GSX-R750 L4 - 2014 года выпуска
-
№АртикулНазвание
-
194450-15J00-YSF COWLING, SIDE RIGHT HAND (BLUE)COWLING, SIDE RIGHT HAND (BLUE)
-
268681-15J00-AG9 EMBLEM, ''GSXR'' RIGHT HANDEMBLEM, ''GSXR'' RIGHT HAND
-
394477-14J01 CUSHIONCUSHION
-
494479-15H00 CUSHION, SIDE COWLING RIGHT HANDCUSHION, SIDE COWLING RIGHT HAND
-
509139-05064 SCREW (5X13)SCREW (5X13)
-
609139-06190 BOLT (6X20)BOLT (6X20)
-
709321-06013 CUSHIONCUSHION
-
844543-10G00 PROTECTOR, SIDE COWLING LEFT HANDPROTECTOR, SIDE COWLING LEFT HAND
-
994460-15J00-YSF COWLING, SIDE LEFT HAND (BLUE)COWLING, SIDE LEFT HAND (BLUE)
-
1068691-15J00-AG9 EMBLEM, ''GSXR'' LEFT HANDEMBLEM, ''GSXR'' LEFT HAND
-
1194477-14J01 CUSHIONCUSHION
-
1209139-05064 SCREW (5X13)SCREW (5X13)
-
1309321-06013 CUSHIONCUSHION
-
1494488-14J00 SCREW, SIDE COWLING LEFT HANDSCREW, SIDE COWLING LEFT HAND
-
1594489-14J00 SPACER, SIDE COWLING LEFT HANDSPACER, SIDE COWLING LEFT HAND
-
1609320-09016 CUSHIONCUSHION
-
1794498-14J00 PLATE, UNDER COWLING CENTERPLATE, UNDER COWLING CENTER
-
1894570-14J00 COVER, SIDE COWLING RIGHT HANDCOVER, SIDE COWLING RIGHT HAND
-
1994443-06G00 TAPE (6X25X0.13)TAPE (6X25X0.13)
-
2094580-14J00 COVER, SIDE COWLING LEFT HANDCOVER, SIDE COWLING LEFT HAND
-
2194443-06G00 TAPE (6X25X0.13)TAPE (6X25X0.13)
-
2294491-14J00 BRACKET, COVER SIDE RIGHT HANDBRACKET, COVER SIDE RIGHT HAND
-
2309139-05064 SCREW (5X13)SCREW (5X13)
-
2409139-06062 SCREW (6X12)SCREW (6X12)
-
2509320-08013 CUSHIONCUSHION
-
2609320-08028 CUSHIONCUSHION
-
2794612-31F00 CUSHION, BRACKET COVER RIGHT HANDCUSHION, BRACKET COVER RIGHT HAND
-
2894479-35F00 CLIP, UNDER CTRCLIP, UNDER CTR
