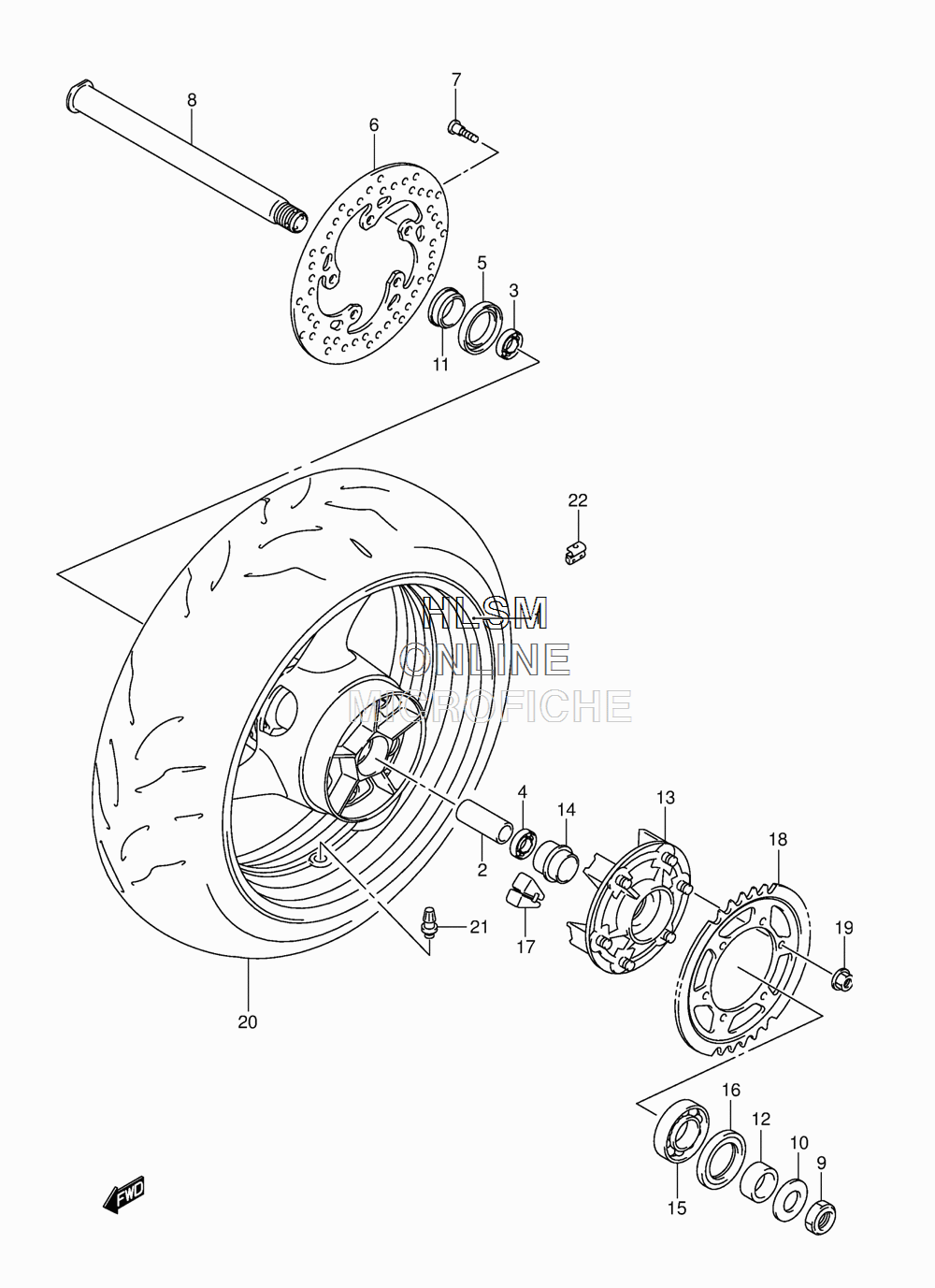

WHEEL - REAR для Suzuki GSX-R750 L4 - 2014 года выпуска
-
№АртикулНазвание
-
164111-14J00-019 WHEEL, REAR (17M/CXMT5.50) (BLACK)WHEEL, REAR (17M/CXMT5.50) (BLACK)
-
264731-14J00 SPACER, HUB BEARINGSPACER, HUB BEARING
-
309262-25061 BEARING (25X52X15)BEARING (25X52X15)
-
408123-60057 BEARING B1 25X47X12BEARING B1 25X47X12
-
509285-32004 OIL SEAL (32X52X7)OIL SEAL (32X52X7)
-
669211-18G00 DISC, REAR BRAKEDISC, REAR BRAKE
-
709106-08160 BOLT (8X21)BOLT (8X21)
-
864711-14J00 AXLE, REARAXLE, REAR
-
909159-22007 NUTNUT
-
1009160-22081 WASHER (22X35X2)WASHER (22X35X2)
-
1154751-41G00 SPACER, AXLE RIGHT HANDSPACER, AXLE RIGHT HAND
-
1264751-44G00 SPACER, AXLE LEFT HANDSPACER, AXLE LEFT HAND
-
1364610-47H00 DRUM, REAR SPROCKETDRUM, REAR SPROCKET
-
1464733-44G00 RETAINER, SPROCKET DRUMRETAINER, SPROCKET DRUM
-
1509262-32022 BEARING (32X65X17)BEARING (32X65X17)
-
1609285-39001 OIL SEAL (39X65X7)OIL SEAL (39X65X7)
-
1764651-47H10 ABSORBER, HUB SHOCKABSORBER, HUB SHOCK
-
1864511-15J00 SPROCKET, REAR (NT:45)SPROCKET, REAR (NT:45)
-
1908319-3110A NUTNUT
-
2065110-15J00 TIRE, REAR (180/55ZR17M/C, 73W)TIRE, REAR (180/55ZR17M/C, 73W)
-
2143130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
2255411-22H00 BALANCER, WHEEL NO.1BALANCER, WHEEL NO.1
-
2255412-22H00 BALANCER, WHEEL NO.2BALANCER, WHEEL NO.2
-
2255413-22H00 BALANCER, WHEEL NO.3BALANCER, WHEEL NO.3
