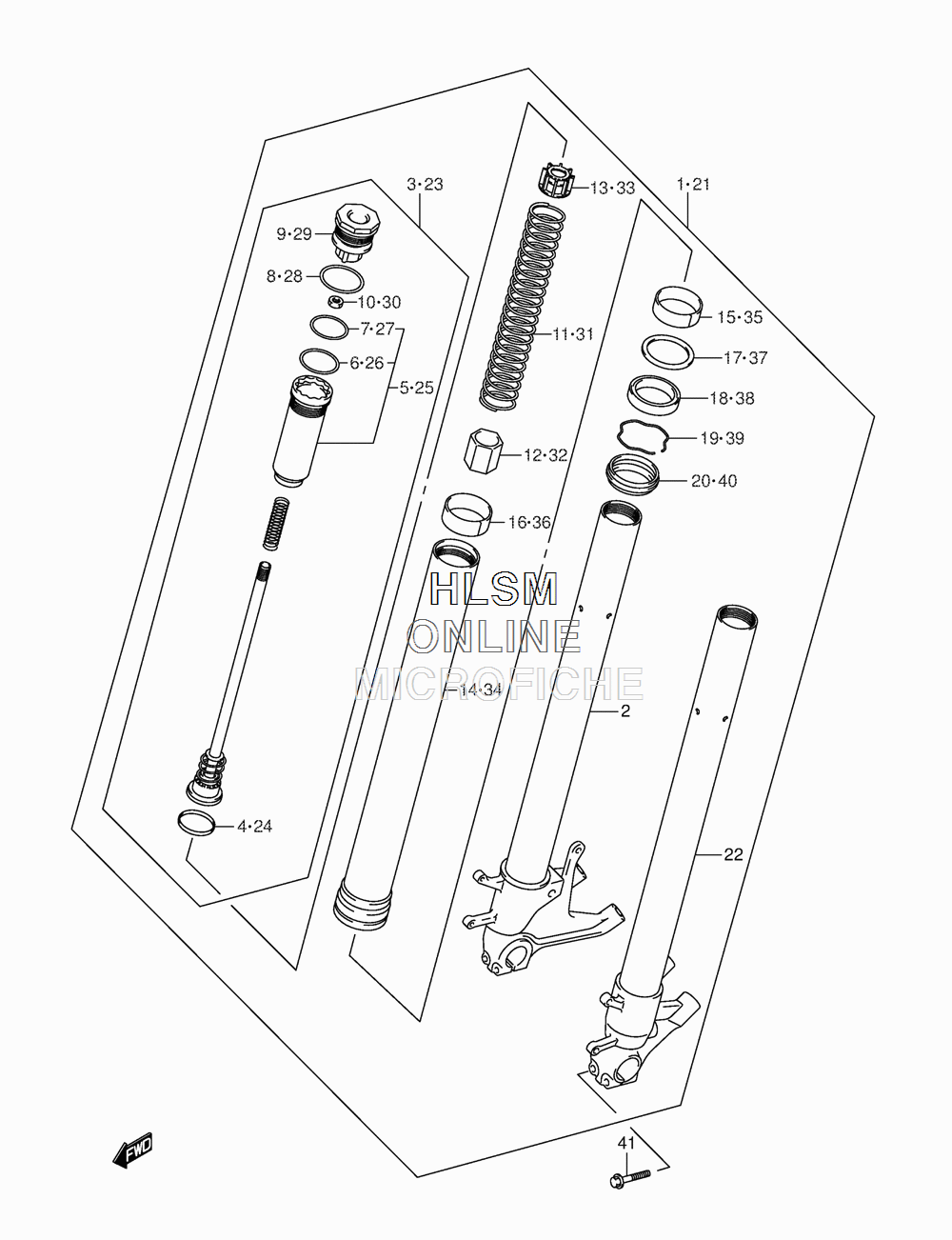

SUSPENSION - FRONT FORK для Suzuki GSX-R750 L4 - 2014 года выпуска
-
№АртикулНазвание
-
151103-15J10 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
251110-14J00 TUBE, INNER RIGHT HANDTUBE, INNER RIGHT HAND
-
352110-15J00 ROD, PISTONROD, PISTON
-
451118-14J00 RING, PISTONRING, PISTON
-
551174-14J00 CASE, ROD GUIDECASE, ROD GUIDE
-
651118-14J10 PISTON RINGPISTON RING
-
751187-14J00 O RINGO RING
-
851187-01H00 O RINGO RING
-
951189-14J00 BOLTBOLT
-
1051827-29G00 NUTNUT
-
1151171-15J10 SPRINGSPRING
-
1251176-14J10 COLLAR, SPRINGCOLLAR, SPRING
-
1351175-14J00 COLLAR, SPRINGCOLLAR, SPRING
-
1451131-15J00 TUBE, OUTERTUBE, OUTER
-
1551152-01H10 BUSH, GUIDEBUSH, GUIDE
-
1651152-14J00 BUSH, SLIDEBUSH, SLIDE
-
1751168-38B00 SPACER, SEALSPACER, SEAL
-
1851153-01H10 SEAL, OILSEAL, OIL
-
1951556-38B00 RING, STOPPERRING, STOPPER
-
2051173-01H00 SEAL, DUSTSEAL, DUST
-
2151104-15J10 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
2251120-14J00 TUBE, INNER LEFT HANDTUBE, INNER LEFT HAND
-
2352110-15J00 ROD, PISTONROD, PISTON
-
2451118-14J00 RING, PISTONRING, PISTON
-
2551174-14J00 CASE, ROD GUIDECASE, ROD GUIDE
-
2651118-14J10 PISTON RINGPISTON RING
-
2751187-14J00 O RINGO RING
-
2851187-01H00 O RINGO RING
-
2951189-14J00 BOLTBOLT
-
3051827-29G00 NUTNUT
-
3151171-15J10 SPRINGSPRING
-
3251176-14J10 COLLAR, SPRINGCOLLAR, SPRING
-
3351175-14J00 COLLAR, SPRINGCOLLAR, SPRING
-
3451131-15J00 TUBE, OUTERTUBE, OUTER
-
3551152-01H10 BUSH, GUIDEBUSH, GUIDE
-
3651152-14J00 BUSH, SLIDEBUSH, SLIDE
-
3751168-38B00 SPACER, SEALSPACER, SEAL
-
3851153-01H10 SEAL, OILSEAL, OIL
-
3951556-38B00 RING, STOPPERRING, STOPPER
-
4051173-01H00 SEAL, DUSTSEAL, DUST
-
4151321-36F00 BOLTBOLT
