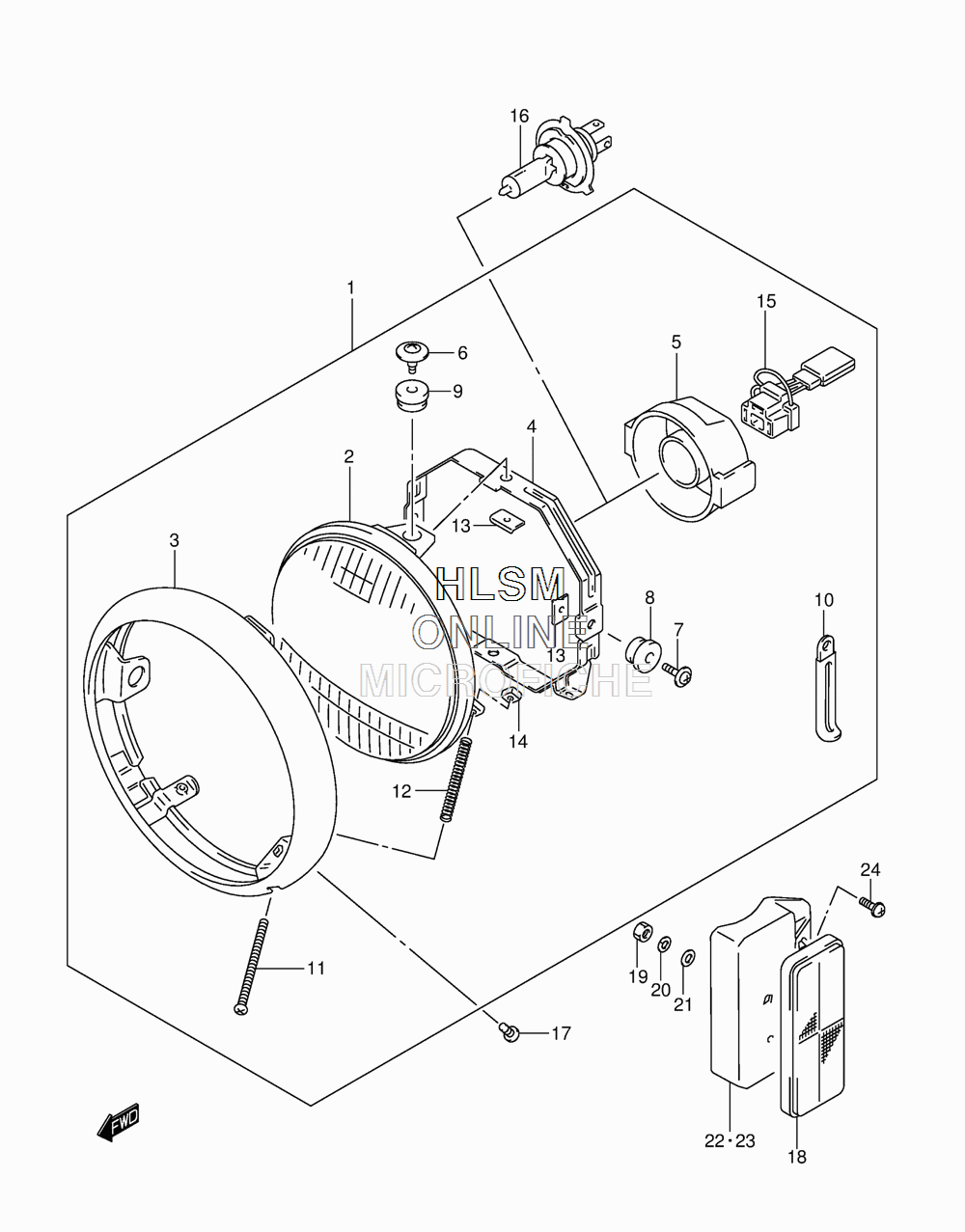

HEADLAMP для Suzuki LS650 L4 - 2014 года выпуска
-
№АртикулНазвание
-
135100-38A61-999 HEADLAMP ASSYHEADLAMP ASSY
-
235121-38A60 UNIT, LAMPUNIT, LAMP
-
335111-38A60 RIMRIM
-
435130-38A00 RING, MOUNTINGRING, MOUNTING
-
535173-13E10 COVERCOVER
-
635136-38A60 SCREWSCREW
-
735136-38A00 SCREW, MOUNTINGSCREW, MOUNTING
-
835139-45230 CUSHIONCUSHION
-
935139-38A60 CUSHIONCUSHION
-
1009404-06432 CLAMP (L:65)CLAMP (L:65)
-
1135151-38A00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
1235154-31300 SPRINGSPRING
-
1335155-38A60 NUTNUT
-
1435152-45600 NUTNUT
-
1536853-38A00 SOCKETSOCKET
-
1609471-12060 BULB (12V,60/55W)BULB (12V,60/55W)
-
1702142-05127 SCREWSCREW
-
1835950-43431 REFLEX REFLECTOR ASSY, FRONT SIDEREFLEX REFLECTOR ASSY, FRONT SIDE
-
1908310-0005B NUTNUT
-
2008321-0105B LOCK WASHERLOCK WASHER
-
2109160-05037 WASHER (5.5X16X1.2)WASHER (5.5X16X1.2)
-
2235956-24B00 BRACKET, FRONT SIDE REAR RIGHT HANDBRACKET, FRONT SIDE REAR RIGHT HAND
-
2335957-24B00 BRACKET, FRONT SIDE REAR LEFT HANDBRACKET, FRONT SIDE REAR LEFT HAND
-
2409136-05026 SCREW (5X12)SCREW (5X12)
