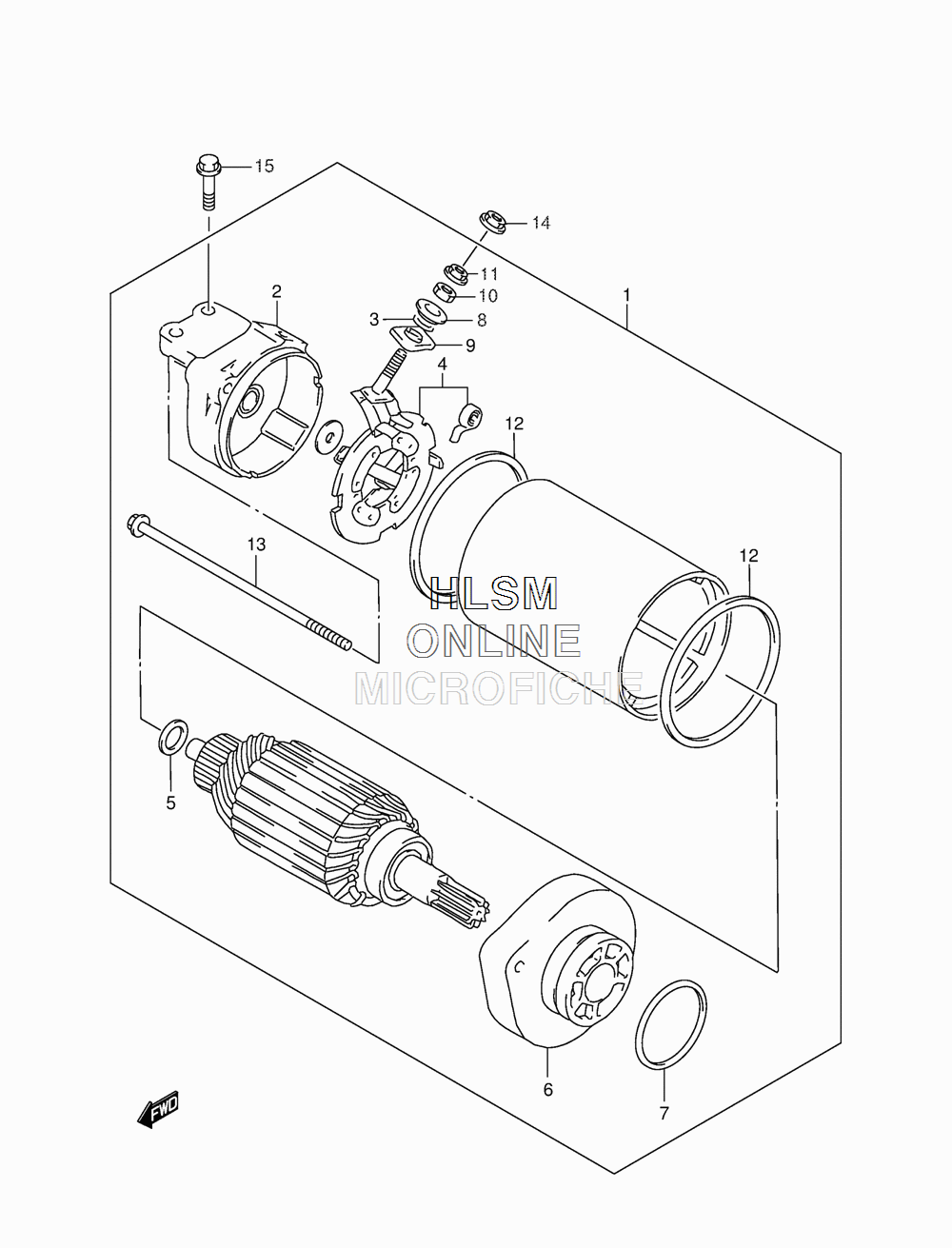

STARTING MOTOR для Suzuki LS650 L4 - 2014 года выпуска
-
№АртикулНазвание
-
131100-07F00 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231170-07F00 FRAME ASSYFRAME ASSY
-
331143-38300 O RINGO RING
-
431132-45C00 HOLDER SET, BRUSHHOLDER SET, BRUSH
-
531170-43400 SHIM SETSHIM SET
-
631150-44B10 HOUSING ASSYHOUSING ASSY
-
731156-48B00 O RINGO RING
-
831172-38300 BUSHINGBUSHING
-
931173-88C00 BUSHINGBUSHING
-
1008310-00067 NUTNUT
-
1108361-3506A NUTNUT
-
1231264-44110 O RINGO RING
-
1331281-24B10 BOLTBOLT
-
1408361-3506A NUTNUT
-
1509103-06223 BOLT (6X20)BOLT (6X20)
