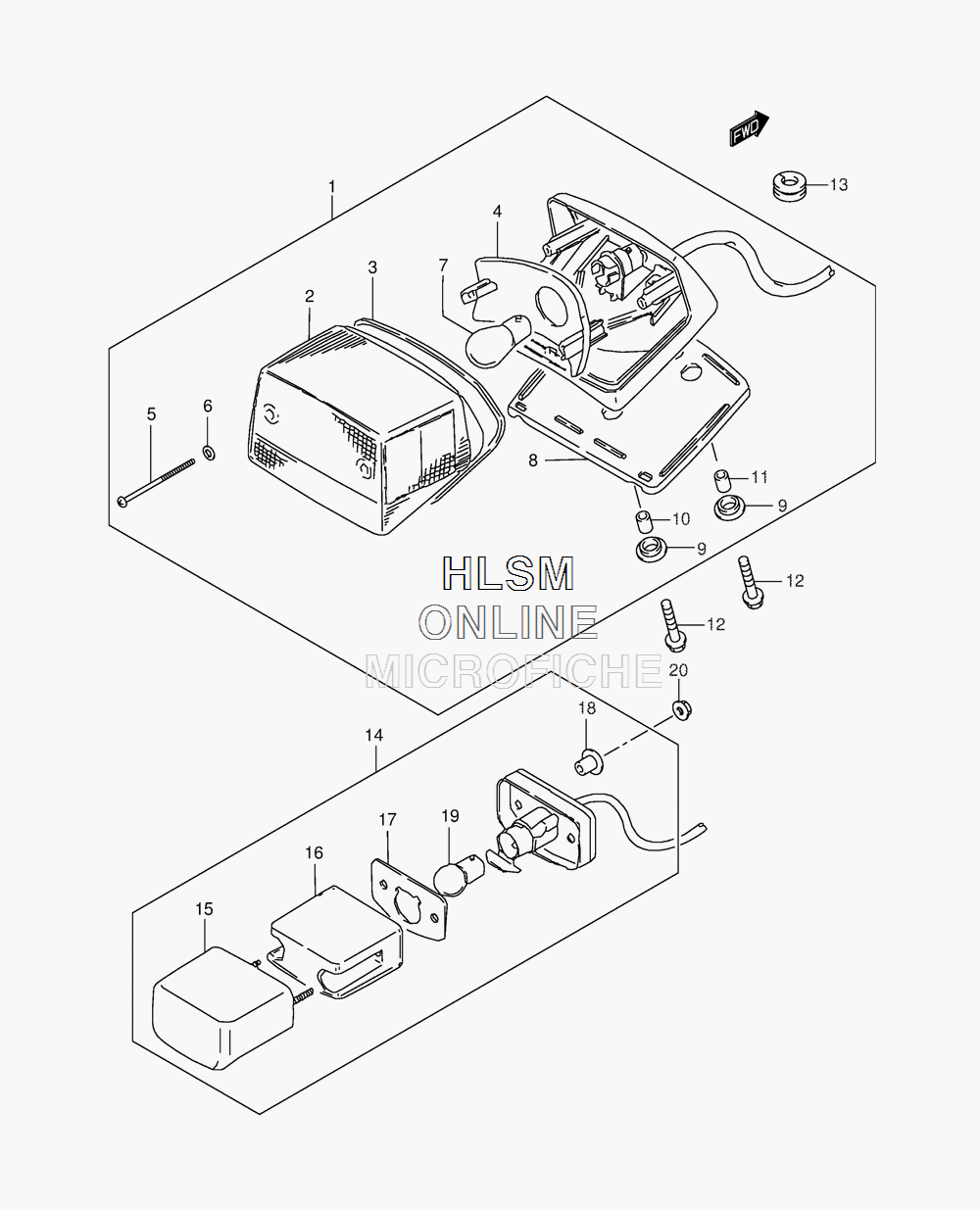

TAILLIGHT ASSY. для Suzuki LS650 L4 - 2014 года выпуска
-
№АртикулНазвание
-
135710-24B40 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
235712-24B30 LENSLENS
-
335713-24B00 GASKETGASKET
-
435714-38A00 REFLECTORREFLECTOR
-
535723-44130 SCREWSCREW
-
635627-43010 GASKETGASKET
-
709471-12128 BULB (12V,21/5W)BULB (12V,21/5W)
-
835765-24B00 CUSHIONCUSHION
-
935764-26470 CUSHIONCUSHION
-
1035766-40640 SPACERSPACER
-
1135766-24B40 SPACERSPACER
-
1209116-06093 BOLT (6X25)BOLT (6X25)
-
1309308-09004 GROMMETGROMMET
-
1435910-24B50 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
1535917-17C10 COVER, LENSCOVER, LENS
-
1635912-38A30 LENSLENS
-
1735913-38A30 GASKETGASKET
-
1835966-24B40 SPACERSPACER
-
1909471-12140 BULB (12V,5W)BULB (12V,5W)
-
2008316-1004B NUTNUT
