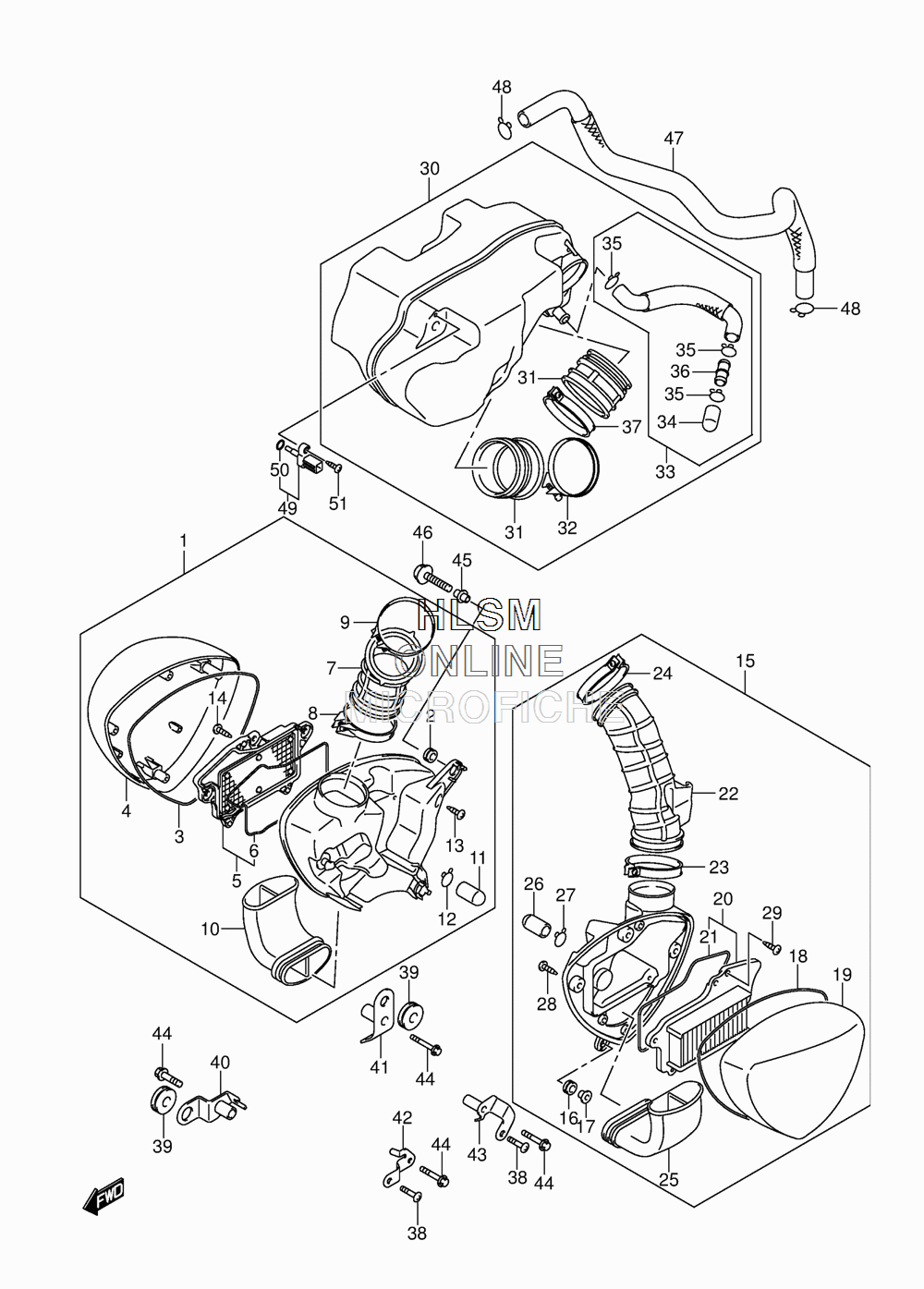

AIR CLEANER для Suzuki VL1500 L4 C90B - 2014 года выпуска
-
№АртикулНазвание
-
113701-40HB0 CLEANER, AIR RIGHT HANDCLEANER, AIR RIGHT HAND
-
209320-09016 CUSHIONCUSHION
-
313756-40H00 GASKETGASKET
-
413741-40HB0 CAP, AIR CLEANERCAP, AIR CLEANER
-
513780-40H00 FILTER ASSYFILTER ASSY
-
613787-40H00 GASKETGASKET
-
713738-40H00 TUBE, JOINT RIGHT HANDTUBE, JOINT RIGHT HAND
-
809402-62208 CLAMPCLAMP
-
913826-40H00 CLAMPCLAMP
-
1013891-40H01 TUBE, INLETTUBE, INLET
-
1113878-09F00 PLUG, DRAINPLUG, DRAIN
-
1209401-14101 CLIPCLIP
-
1303211-0520A SCREWSCREW
-
1403541-0516A SCREWSCREW
-
1513702-40HB0 CLEANER, AIR LEFT HANDCLEANER, AIR LEFT HAND
-
1609320-09016 CUSHIONCUSHION
-
1713812-29C50 COLLARCOLLAR
-
1813756-40H00 GASKETGASKET
-
1913741-40HB0 CAP, AIR CLEANERCAP, AIR CLEANER
-
2013780-40H00 FILTER ASSYFILTER ASSY
-
2113787-40H00 GASKETGASKET
-
2213739-40H00 TUBE, JOINT LEFT HANDTUBE, JOINT LEFT HAND
-
2309402-62208 CLAMPCLAMP
-
2413827-40H01 CLAMPCLAMP
-
2513891-40H01 TUBE, INLETTUBE, INLET
-
2613878-09F00 PLUG, DRAINPLUG, DRAIN
-
2709401-14101 CLIPCLIP
-
2803211-0520A SCREWSCREW
-
2903541-0516A SCREWSCREW
-
3013710-40H01 CHAMBER, AIR CLEANERCHAMBER, AIR CLEANER
-
3113881-40H01 TUBE, OUTLETTUBE, OUTLET
-
3213170-39H00 CLAMPCLAMP
-
3313870-40H00 TUBE, DRAINTUBE, DRAIN
-
3413859-41B10 PLUG, DRAIN TUBEPLUG, DRAIN TUBE
-
3509401-14101 CLIPCLIP
-
3613888-19B00 JOINTJOINT
-
3713826-40HB0 CLAMPCLAMP
-
3809139-06056 SCREW (6X20)SCREW (6X20)
-
3909320-08028 CUSHIONCUSHION
-
4013760-40H00 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
4113770-40H00 BRACKET, LEFT HAND NO.1BRACKET, LEFT HAND NO.1
-
4213770-40H11 BRACKET, LEFT HAND NO.2BRACKET, LEFT HAND NO.2
-
4313770-40H20 BRACKET, LEFT HAND NO.3BRACKET, LEFT HAND NO.3
-
4409103-06509 BOLT (6X30)BOLT (6X30)
-
4513838-40H00 SPACERSPACER
-
4609136-06167 SCREW (6X35)SCREW (6X35)
-
4713850-40H00 TUBE, BREATHERTUBE, BREATHER
-
4809401-20405 CLIPCLIP
-
4913650-41F10 SENSOR, AIR TEMPSENSOR, AIR TEMP
-
5013655-41F10 O RINGO RING
-
5103511-0516B SCREWSCREW
