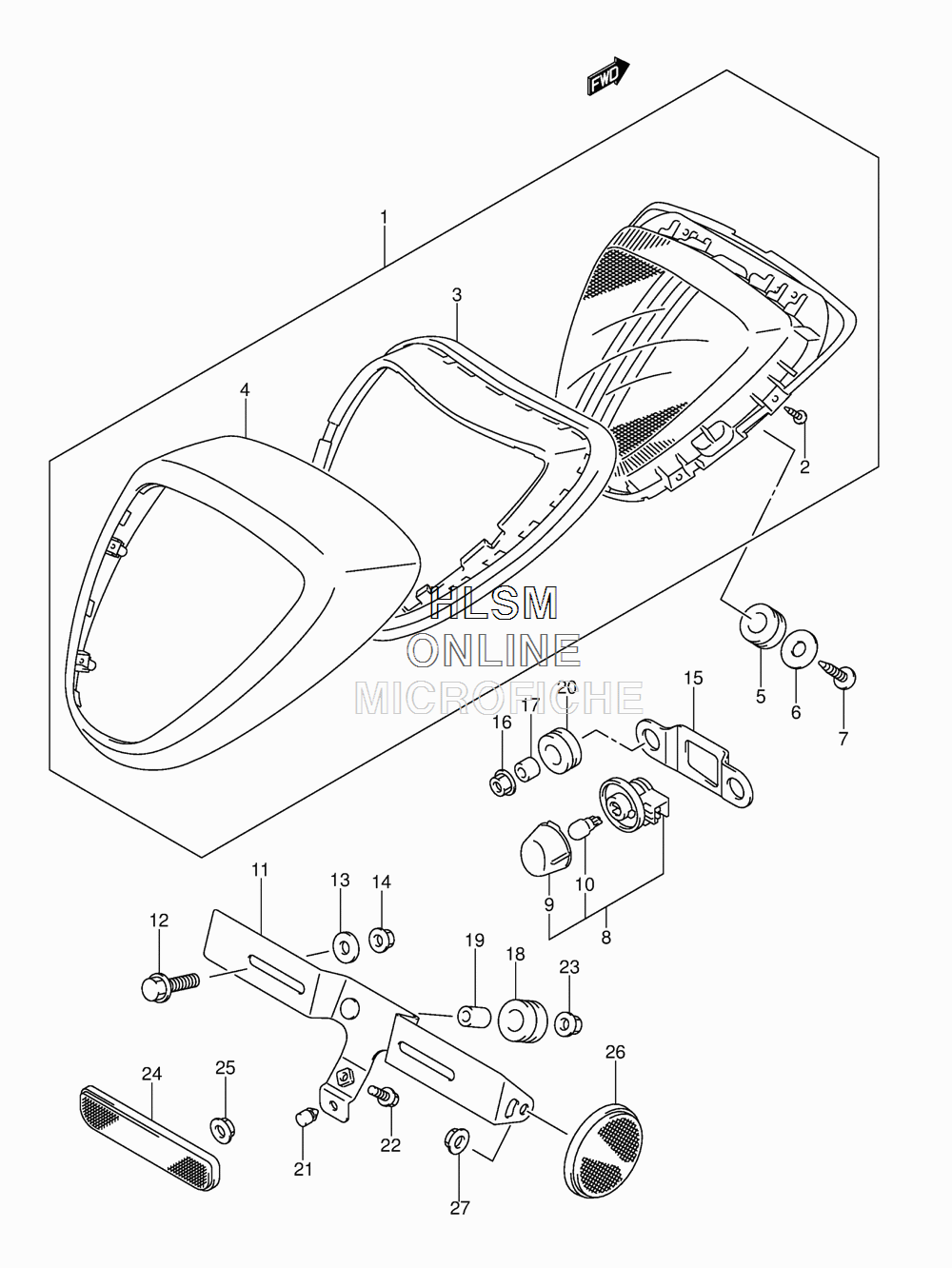

TAILLIGHT ASSY. для Suzuki VL1500 L4 C90B - 2014 года выпуска
-
№АртикулНазвание
-
135710-06JB0 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
235623-41400 SCREW (3X12)SCREW (3X12)
-
335713-06J00 RUBBERRUBBER
-
435717-06JB0 COVERCOVER
-
509320-10067 CUSHIONCUSHION
-
609160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
703541-0512A SCREWSCREW
-
835910-14F01 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
935912-14F11 LENSLENS
-
1009471-12216 BULB (12V5W)BULB (12V5W)
-
1135927-06J30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1209116-06168 BOLT (6X16)BOLT (6X16)
-
1309160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1408316-1006A NUTNUT
-
1535928-43H00 BRACKET, LICENSE LAMPBRACKET, LICENSE LAMP
-
1609159-05049 NUTNUT
-
1709180-05066 SPACER (5.5X9.5X10.5)SPACER (5.5X9.5X10.5)
-
1809180-06290 SPACER (6.5X10X12)SPACER (6.5X10X12)
-
1909320-10051 CUSHIONCUSHION
-
2009320-10054 CUSHIONCUSHION
-
2109321-06013 CUSHIONCUSHION
-
2201550-0625A BOLTBOLT
-
2308316-1006A NUTNUT
-
2435970-05H00 REFLECTOR ASSY, REARREFLECTOR ASSY, REAR
-
2508316-1005A NUTNUT
-
2635970-14A20 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
2708316-1005A NUTNUT
