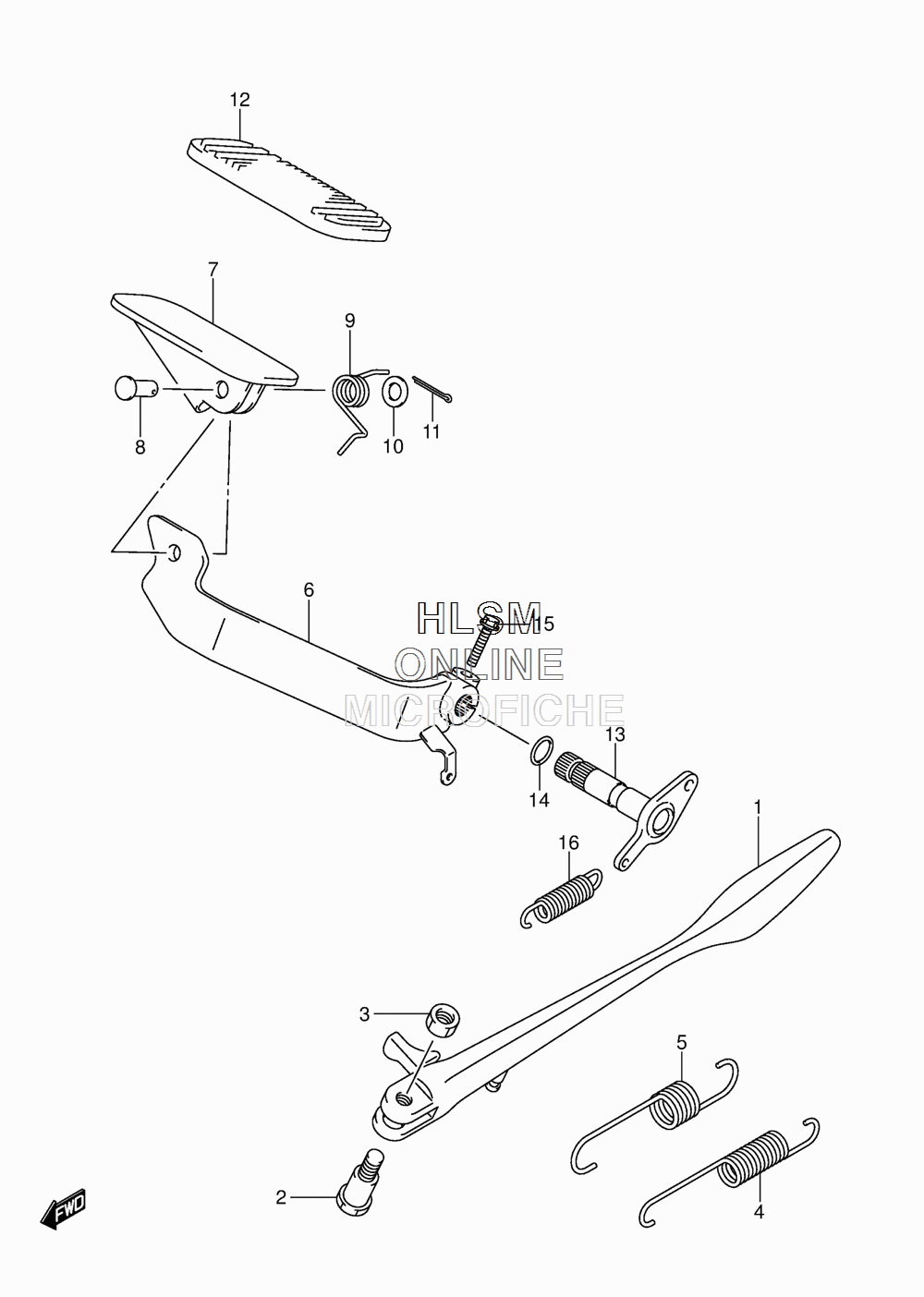

BRAKE PEDAL W/ STAND для Suzuki VL1500 L4 C90B - 2014 года выпуска
-
№АртикулНазвание
-
142310-06J10 STAND, PROPSTAND, PROP
-
209111-10058 BOLT (10X37.5)BOLT (10X37.5)
-
342321-03FK0 NUTNUT
-
409443-14069 SPRINGSPRING
-
509443-19012 SPRINGSPRING
-
643140-06J00 ARM, BRAKE PEDALARM, BRAKE PEDAL
-
743110-22H10 PEDAL, BRAKEPEDAL, BRAKE
-
843117-22H00 PINPIN
-
943116-22H00 SPRINGSPRING
-
1008322-0108A WASHERWASHER
-
1104111-2015A COTTER PINCOTTER PIN
-
1243151-10F00 RUBBER, BRAKE PEDALRUBBER, BRAKE PEDAL
-
1343120-40H00 ARM, BRAKE RODARM, BRAKE ROD
-
1409280-14011 O RING (D:2.5,ID:13.8)O RING (D:2.5,ID:13.8)
-
1507120-0625A BOLTBOLT
-
1609443-11030 SPRINGSPRING
