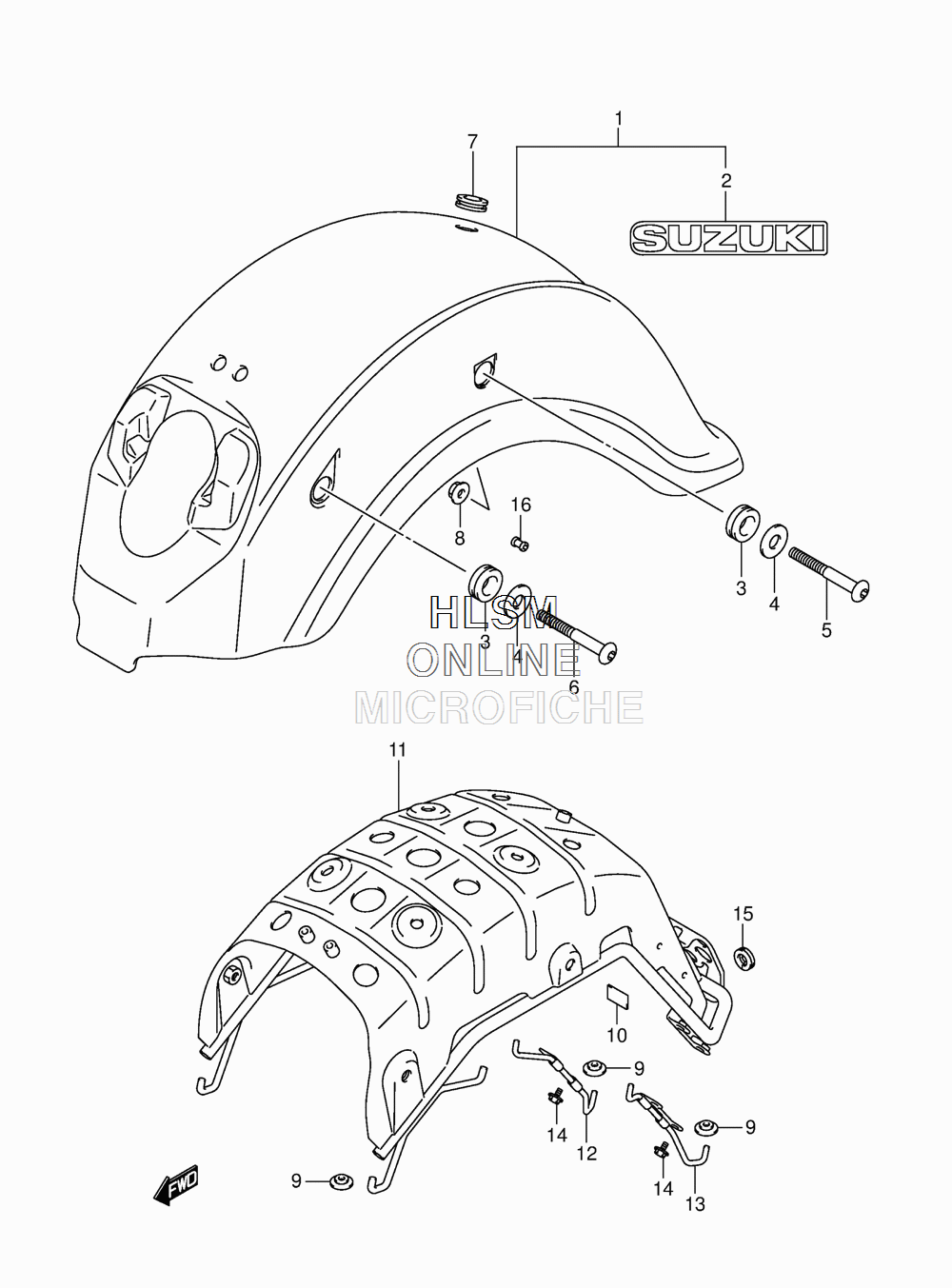

FENDER - REAR для Suzuki VL800 L4 B.O.S.S. - 2014 года выпуска
-
№АртикулНазвание
-
163110-43H00-6UX FENDER, REAR (BLACK)FENDER, REAR (BLACK)
-
268271-34A00-YJH EMBLEM (GRAY)EMBLEM (GRAY)
-
347191-24F00 CUSHIONCUSHION
-
409160-15002 WASHER (15.5X26X2.3)WASHER (15.5X26X2.3)
-
563161-41F00 BOLT, REAR FENDERBOLT, REAR FENDER
-
663161-41F10 BOLT, REAR FENDER FRONTBOLT, REAR FENDER FRONT
-
709320-15008 CUSHIONCUSHION
-
808316-1008B NUTNUT
-
909320-06026 CUSHIONCUSHION
-
1053145-17C11 CUSHION, FENDER SIDECUSHION, FENDER SIDE
-
1163130-43H00 PLATE, REAR FENDERPLATE, REAR FENDER
-
1263150-43H00 BRACKET, LOWER RIGHT HANDBRACKET, LOWER RIGHT HAND
-
1363160-43H00 BRACKET, LOWER LEFT HANDBRACKET, LOWER LEFT HAND
-
1401550-0610B BOLTBOLT
-
1509308-10017 GROMMETGROMMET
-
1609250-07004 PLUG (OD:9)PLUG (OD:9)
