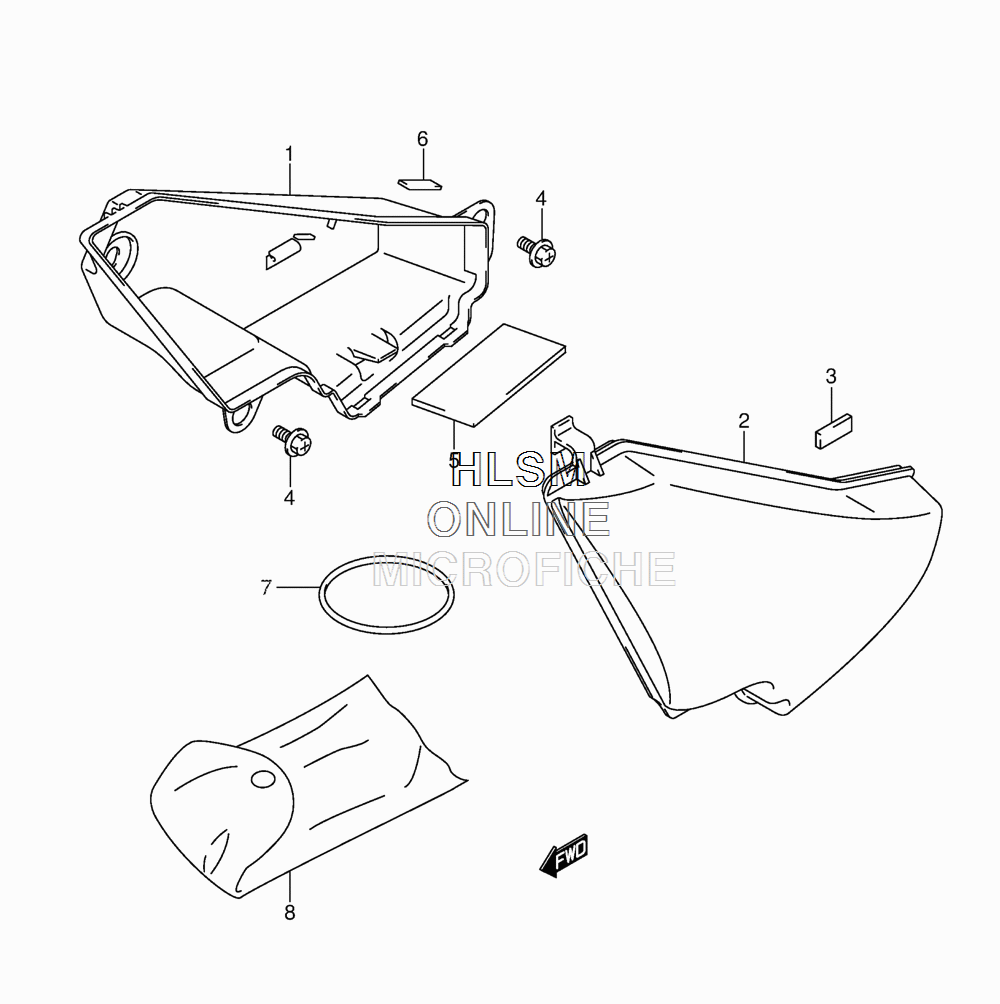

LUGGAGE BOX для Suzuki VL800 L4 B.O.S.S. - 2014 года выпуска
-
№АртикулНазвание
-
192211-41F00 BODY, LUGGAGE BOXBODY, LUGGAGE BOX
-
292212-41F01 LIDLID
-
392213-41F00 CUSHION, BOX NO.2CUSHION, BOX NO.2
-
409111-06107 BOLT (6X12)BOLT (6X12)
-
533652-35F00 CUSHION, BOXCUSHION, BOX
-
648128-14FA0 CUSHION, BOX UPPERCUSHION, BOX UPPER
-
709280-63003 O RING (D:3.5,ID:62.6)O RING (D:3.5,ID:62.6)
-
809800-21055 TOOL ASSYTOOL ASSY
