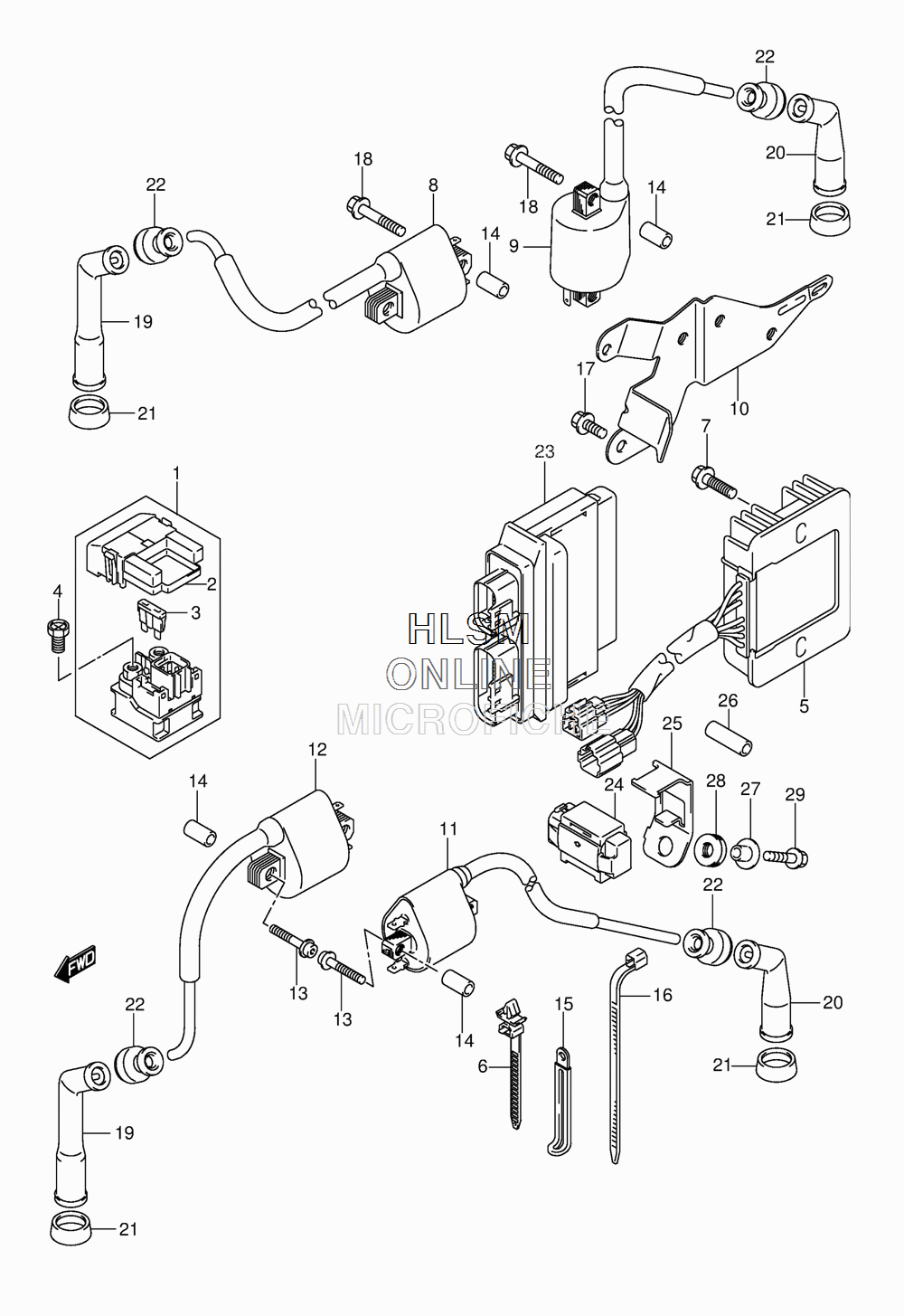

ELECTRICAL (CALIF) для Suzuki VL800T L4 - 2014 года выпуска
-
№АртикулНазвание
-
131800-21E20 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
231861-47E00 COVERCOVER
-
309481-30101 FUSE (30A)FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-47H00 RECTIFIER ASSYRECTIFIER ASSY
-
609407-11402 CLAMP (L:90)CLAMP (L:90)
-
702162-0620B BOLTBOLT
-
833410-39G00 COIL ASSY, IGNITION REARCOIL ASSY, IGNITION REAR
-
933410-39G10 COIL ASSY, IGNITION REARCOIL ASSY, IGNITION REAR
-
1033414-39G00 BRACKET, IGNITION COIL REARBRACKET, IGNITION COIL REAR
-
1133420-39G00 COIL ASSY, IGNITION FRONTCOIL ASSY, IGNITION FRONT
-
1233420-41F10 COIL ASSY, IGNITION FRONTCOIL ASSY, IGNITION FRONT
-
1309106-05033 BOLT (5X35)BOLT (5X35)
-
1409180-06195 SPACER (6.4X10X18)SPACER (6.4X10X18)
-
1509404-06433 CLAMP (L:95)CLAMP (L:95)
-
1609407-19401 CLAMP (L:190)CLAMP (L:190)
-
1701547-0610A BOLTBOLT
-
1801547-0635A BOLTBOLT
-
1933510-11410 CAP ASSY, SPARK PLUG (CENTER)CAP ASSY, SPARK PLUG (CENTER)
-
2033510-38B00 CAP ASSY, SPARK PLUG (SIDE)CAP ASSY, SPARK PLUG (SIDE)
-
2133541-47D00 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
2233542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
2332920-39GJ0 CONTROL UNIT, FICONTROL UNIT, FI
-
2433960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
2533961-41F00 BRACKET, FUEL CUT SENSORBRACKET, FUEL CUT SENSOR
-
2609352-50823-600 HOSE (5X8.2X600)HOSE (5X8.2X600)
-
2709180-06325 SPACER (6.2X8.4X6.9)SPACER (6.2X8.4X6.9)
-
2809320-06017 CUSHIONCUSHION
-
2901547-0616A BOLTBOLT
