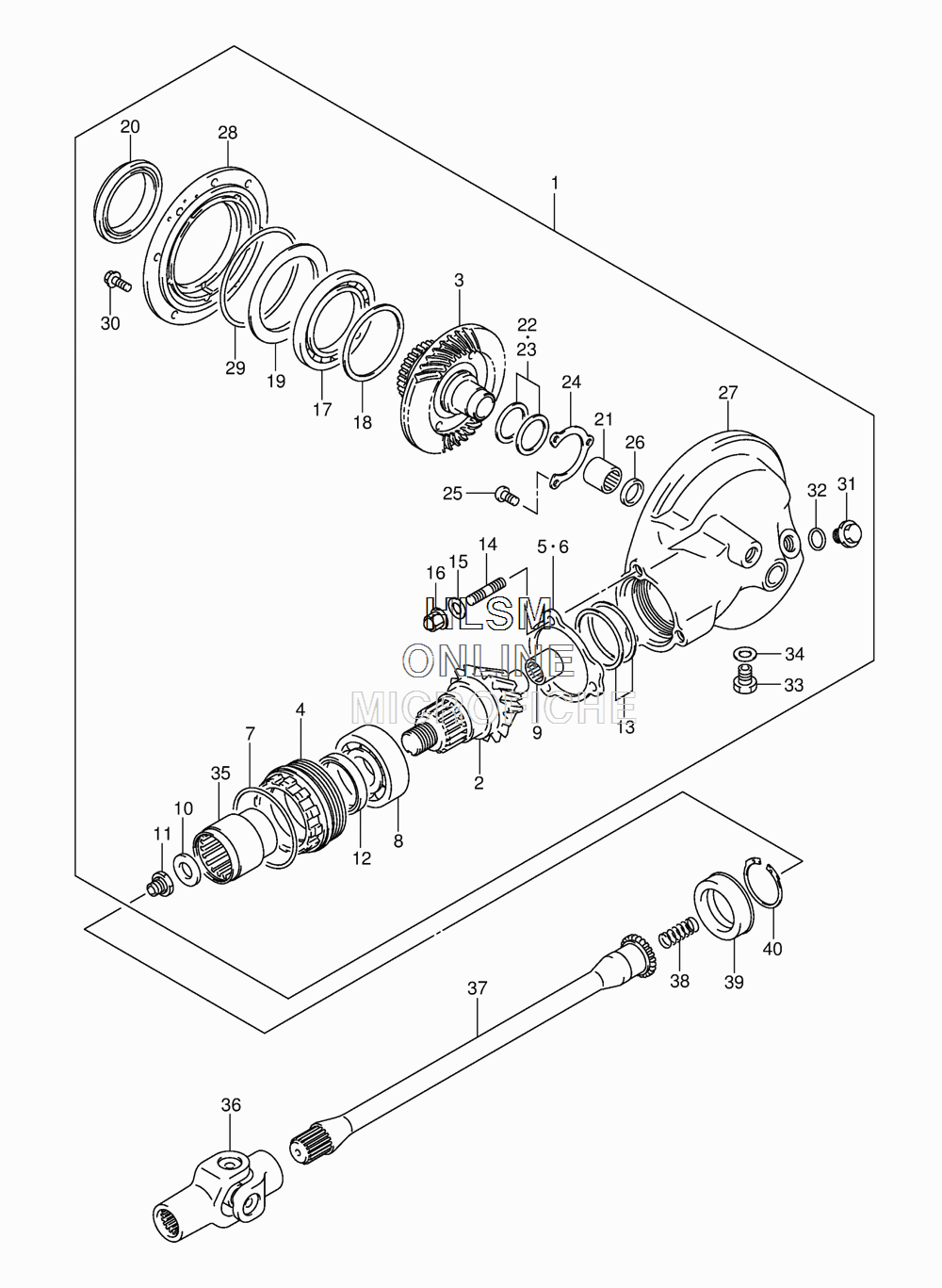

PROPELLER SHAFT/FINAL DRIVE GEAR для Suzuki VL800T L4 - 2014 года выпуска
-
№АртикулНазвание
-
127301-38840-20H GEAR AND CASE SET, FINAL BEVEL (SILVER)GEAR AND CASE SET, FINAL BEVEL (SILVER)
-
227311-38A00 GEAR, FINAL DRIVE BEVEL (NT:11)GEAR, FINAL DRIVE BEVEL (NT:11)
-
327320-45C01 GEAR, FINAL DRIVEN BEVEL (NT:34)GEAR, FINAL DRIVEN BEVEL (NT:34)
-
427312-38A00 STOPPER, BEARINGSTOPPER, BEARING
-
527313-38A00 PLATEPLATE
-
627313-38A10 PLATEPLATE
-
709280-62002 O RING (D:1.9,ID:61.6)O RING (D:1.9,ID:61.6)
-
809267-30005 BEARING (30X62X23.8)BEARING (30X62X23.8)
-
909263-17028 BEARING (17X32X16)BEARING (17X32X16)
-
1009160-16029 WASHER (16X29X4)WASHER (16X29X4)
-
1109159-16010 NUT 16 MMNUT 16 MM
-
1209283-38009 OIL SEAL (38X54X6)OIL SEAL (38X54X6)
-
1327445-38810 SHIM SET, FINALSHIM SET, FINAL
-
1409108-10095 STUD BOLTSTUD BOLT
-
1509164-10008 WASHERWASHER
-
1609159-10026 NUTNUT
-
1709262-70001 BEARING (70X110X13)BEARING (70X110X13)
-
1827327-34810 SHIM SET, DRIVE GEAR BEARINGSHIM SET, DRIVE GEAR BEARING
-
1927328-34200 PLATEPLATE
-
2009289-70001 OIL SEAL (70X96X16)OIL SEAL (70X96X16)
-
2109263-32007 BEARING (32X46X17.7)BEARING (32X46X17.7)
-
2227326-34820 SHIM SET, FINAL DRIVE GEAR (T: 1.05/1.10/1.20/1.25/1.35)SHIM SET, FINAL DRIVE GEAR (T: 1.05/1.10/1.20/1.25/1.35)
-
2327326-34810 SHIM SET, FINAL DRIVE GEAR (T:1.40/1.45/1.50)SHIM SET, FINAL DRIVE GEAR (T:1.40/1.45/1.50)
-
2427329-34200 RETAINER, BEARINGRETAINER, BEARING
-
2509125-06122 SCREW (6X12)SCREW (6X12)
-
2609283-30028 OIL SEAL (30X42X7)OIL SEAL (30X42X7)
-
2727450-38A70-20H CASE, FINAL GEAR (SILVER)CASE, FINAL GEAR (SILVER)
-
2827460-07A01 CASE, FINAL GEAR BEARINGCASE, FINAL GEAR BEARING
-
2909280-00015 O RING (D:3.5,ID:131.6)O RING (D:3.5,ID:131.6)
-
3001550-0825A BOLTBOLT
-
3109247-18001 PLUGPLUG
-
3209280-18004 O RING (D:2.4,ID:17.8)O RING (D:2.4,ID:17.8)
-
3309247-14002 PLUG (MAGNET)PLUG (MAGNET)
-
3409168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
3527172-38A00 COUPLING, PROPELLER SHAFTCOUPLING, PROPELLER SHAFT
-
3627100-38A60 YOKE, UNIVERSAL JOINTYOKE, UNIVERSAL JOINT
-
3727151-41F00 SHAFT, PROPELLERSHAFT, PROPELLER
-
3809440-18019 SPRINGSPRING
-
3909283-30051 OIL SEAL (28.4X48X15)OIL SEAL (28.4X48X15)
-
4009381-40003 CIRCLIPCIRCLIP
