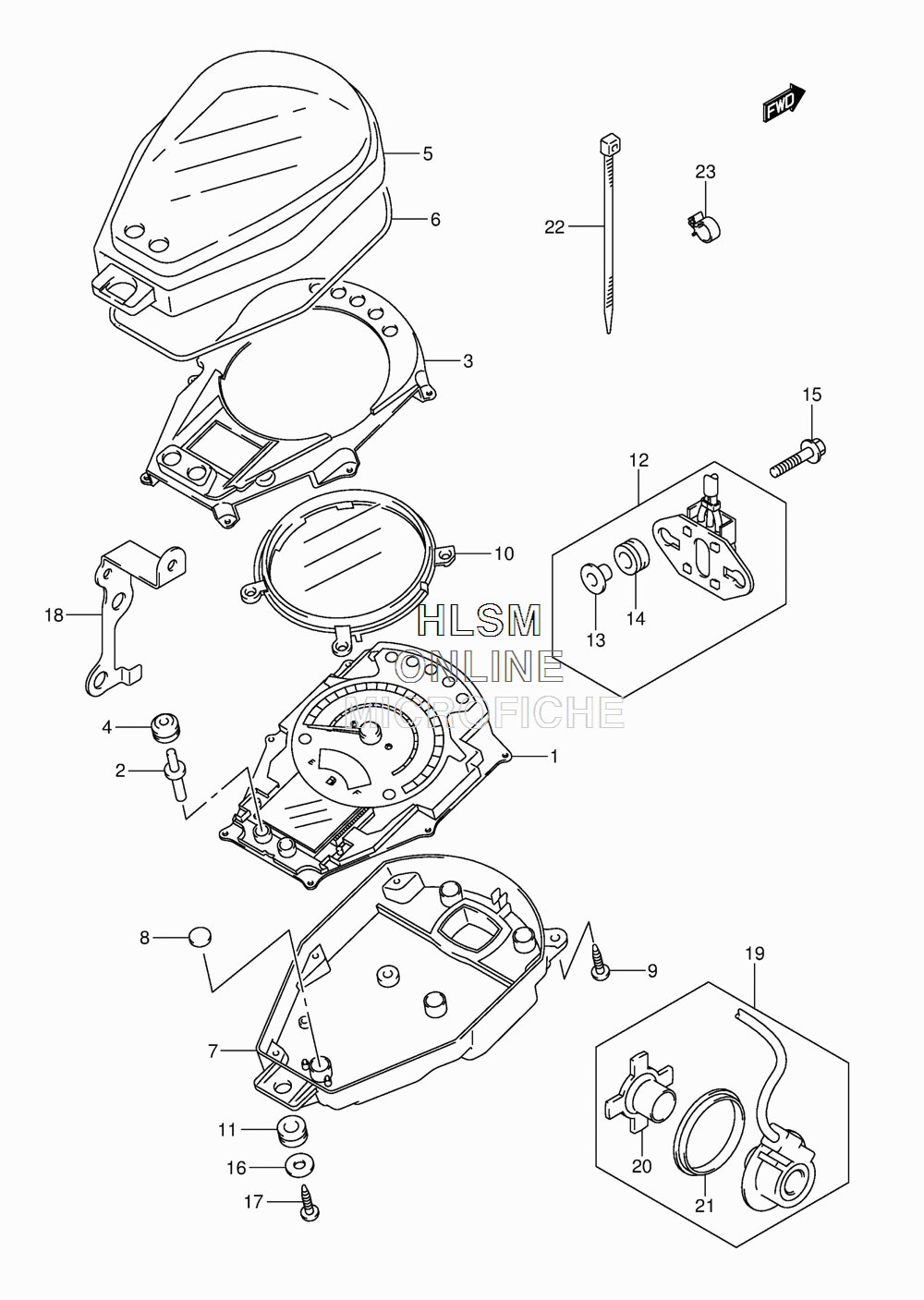

INSTRUMENTS (CANADA) для Suzuki VL800T L4 - 2014 года выпуска
-
№АртикулНазвание
-
134120-43H40 SPEEDOMETERSPEEDOMETER
-
234124-16G00 KNOB, SPEEDOMETERKNOB, SPEEDOMETER
-
334125-43H40 PLATE, SPEEDOMETERPLATE, SPEEDOMETER
-
434126-44G00 COVER, SPEEDOMETERCOVER, SPEEDOMETER
-
534151-43H00 CASE, UPPERCASE, UPPER
-
634153-43H00 PACKINGPACKING
-
734156-43H00 COVERCOVER
-
834167-13E00 SEALSEAL
-
934183-29F00 SCREW (3X12)SCREW (3X12)
-
1034193-43H00 RINGRING
-
1134996-43410 CUSHIONCUSHION
-
1236510-39F00 RESISTOR ASSYRESISTOR ASSY
-
1309180-06319 SPACER (6.5X10X11.6)SPACER (6.5X10X11.6)
-
1409320-10015 CUSHIONCUSHION
-
1509116-06047 BOLT (6X25)BOLT (6X25)
-
1609160-05037 WASHER (5.5X16X1.2)WASHER (5.5X16X1.2)
-
1703541-0516A SCREWSCREW
-
1834938-41F50 GUIDE, SPEED SENSOR LEADGUIDE, SPEED SENSOR LEAD
-
1934990-41F10 SENSOR, SPEEDSENSOR, SPEED
-
2034983-27G00 MAGNETMAGNET
-
2109286-44001 OIL SEAL (44X55X6)OIL SEAL (44X55X6)
-
2209407-14407 CLAMP (L:145)CLAMP (L:145)
-
2309403-06410 CLAMPCLAMP
