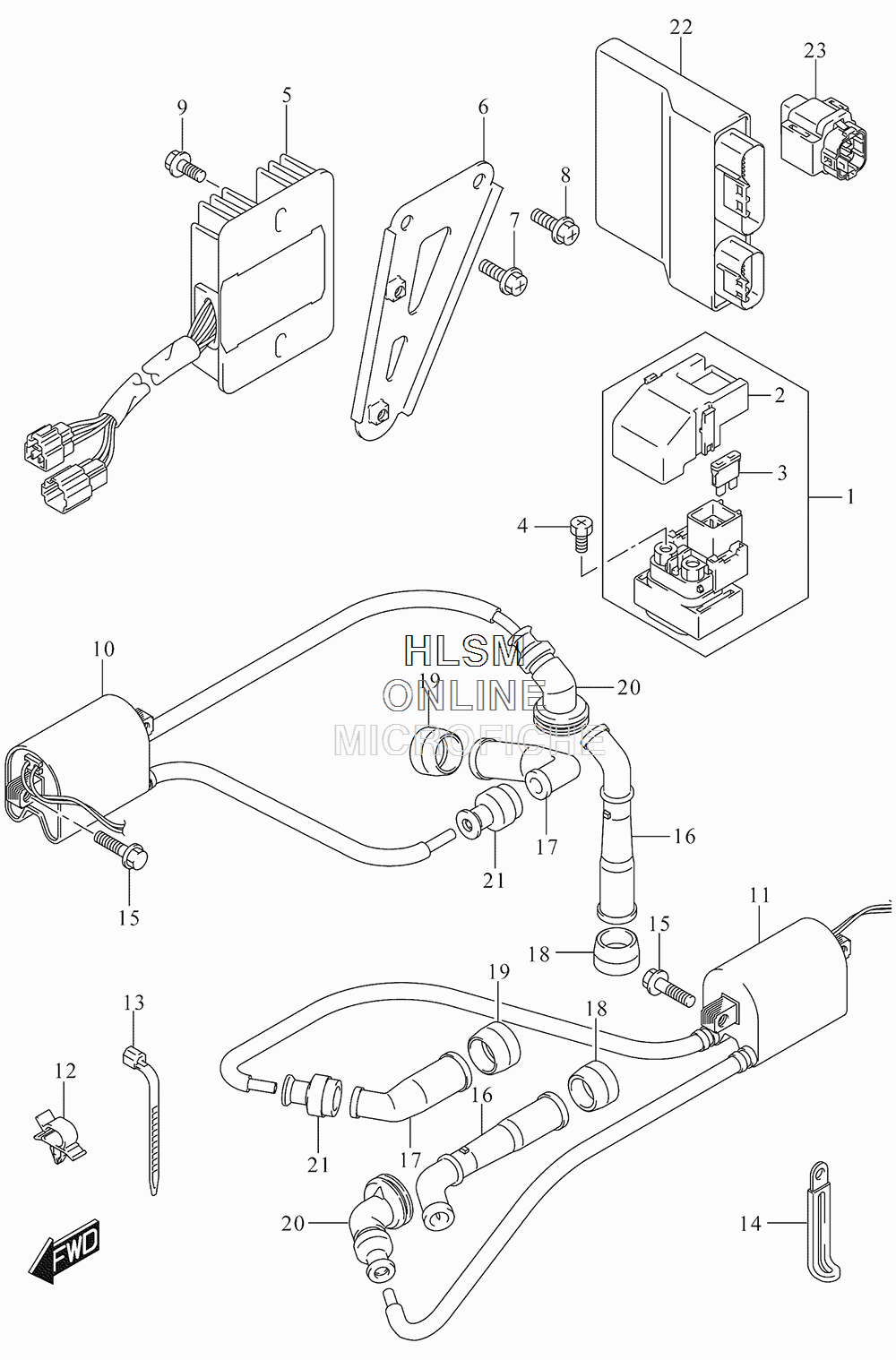

ELECTRICAL (CALIF) для Suzuki DL650A L5 V-STROM 650 ADVENTURE W/ABS - 2015 года выпуска
-
№АртикулНазвание
-
131800-06G00 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
231861-47E00 ...COVER, RELAY ASSY...COVER, RELAY ASSY
-
309481-30101 ...FUSE (30A)...FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-47H00 RECTIFIER ASSYRECTIFIER ASSY
-
632830-11J00 BRACKET, RECTIFIERBRACKET, RECTIFIER
-
702162-0616A SCREWSCREW
-
802162-0610A SCREWSCREW
-
902162-0616A SCREWSCREW
-
1033410-27G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1133420-27G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1209403-10319 CLAMPCLAMP
-
1309407-18402 CLAMP (L:165)CLAMP (L:165)
-
1409404-06429 CLAMP (L:45)CLAMP (L:45)
-
1501547-0625A BOLTBOLT
-
1633510-17G00 CAP, SPARK PLUG (FOR CENTER)CAP, SPARK PLUG (FOR CENTER)
-
1733510-20E00 CAP, SPARK PLUG (FOR SIDE)CAP, SPARK PLUG (FOR SIDE)
-
1833541-23E10 SEAL, SPARK PLUG CAP (FOR CENTER)SEAL, SPARK PLUG CAP (FOR CENTER)
-
1933541-47D00 SEAL, SPARK PLUG CAP (FOR SIDE)SEAL, SPARK PLUG CAP (FOR SIDE)
-
2033542-17G01 SEAL, HIGH TENSION CORD (FOR CENTER)SEAL, HIGH TENSION CORD (FOR CENTER)
-
2133542-38B00 SEAL, HIGH TENSION CORD (FOR SIDE)SEAL, HIGH TENSION CORD (FOR SIDE)
-
2232920-11J20 CONTROL UNIT, FICONTROL UNIT, FI
-
2333960-27G00 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
