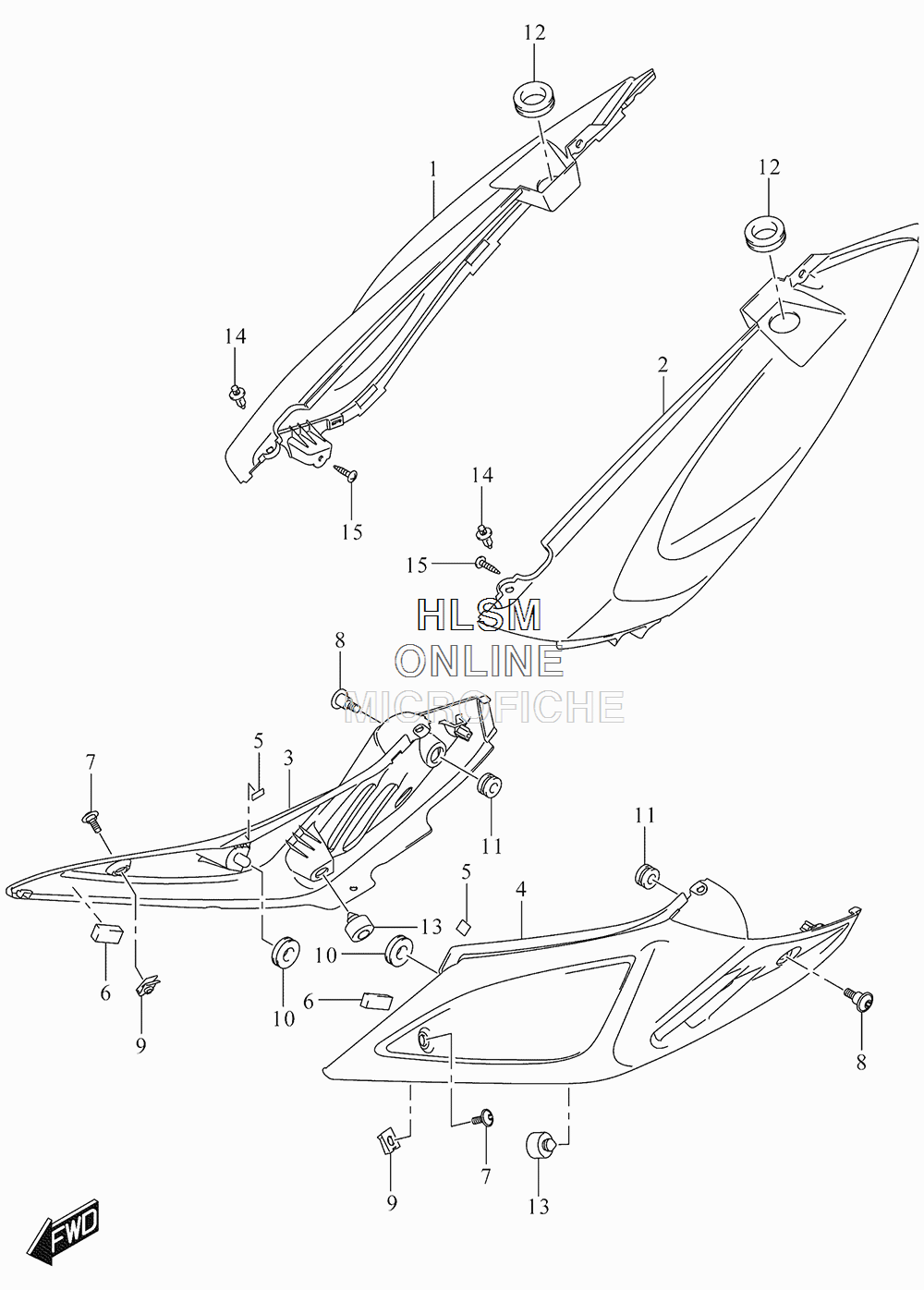

SIDE COVER для Suzuki DL650A L5 V-STROM 650 ADVENTURE W/ABS - 2015 года выпуска
-
№АртикулНазвание
-
147111-11J01-RB5 COVER, FRAME RIGHT HAND (WHITE)COVER, FRAME RIGHT HAND (WHITE)
-
147111-11J01-YYG COVER, FRAME RIGHT HAND (RED)COVER, FRAME RIGHT HAND (RED)
-
147111-11J01-YSF COVER, FRAME RIGHT HAND (BLUE)COVER, FRAME RIGHT HAND (BLUE)
-
147111-11J01-PGZ COVER, FRAME RIGHT HAND (GRAY)COVER, FRAME RIGHT HAND (GRAY)
-
247211-11J01-RB5 COVER, FRAME LEFT HAND (WHITE)COVER, FRAME LEFT HAND (WHITE)
-
247211-11J01-YYG COVER, FRAME LEFT HAND (RED)COVER, FRAME LEFT HAND (RED)
-
247211-11J01-YSF COVER, FRAME LEFT HAND (BLUE)COVER, FRAME LEFT HAND (BLUE)
-
247211-11J01-PGZ COVER, FRAME LEFT HAND (GRAY)COVER, FRAME LEFT HAND (GRAY)
-
347411-11J00 COVER, FRAME SIDE RIGHT HANDCOVER, FRAME SIDE RIGHT HAND
-
447511-11J00 COVER, FRAME SIDE LEFT HANDCOVER, FRAME SIDE LEFT HAND
-
563115-37H00 CUSHION, FRAME COVERCUSHION, FRAME COVER
-
694423-10G00 CUSHION, FRAME COVERCUSHION, FRAME COVER
-
709139-05074 BOLT (5X13)BOLT (5X13)
-
809139-06179 BOLT (6X20)BOLT (6X20)
-
909148-05052 NUTNUT
-
1009320-08028 CUSHIONCUSHION
-
1109320-09016 CUSHIONCUSHION
-
1209320-20010 CUSHIONCUSHION
-
1309321-10001 CUSHIONCUSHION
-
1409409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
1503541-0416A SCREWSCREW
