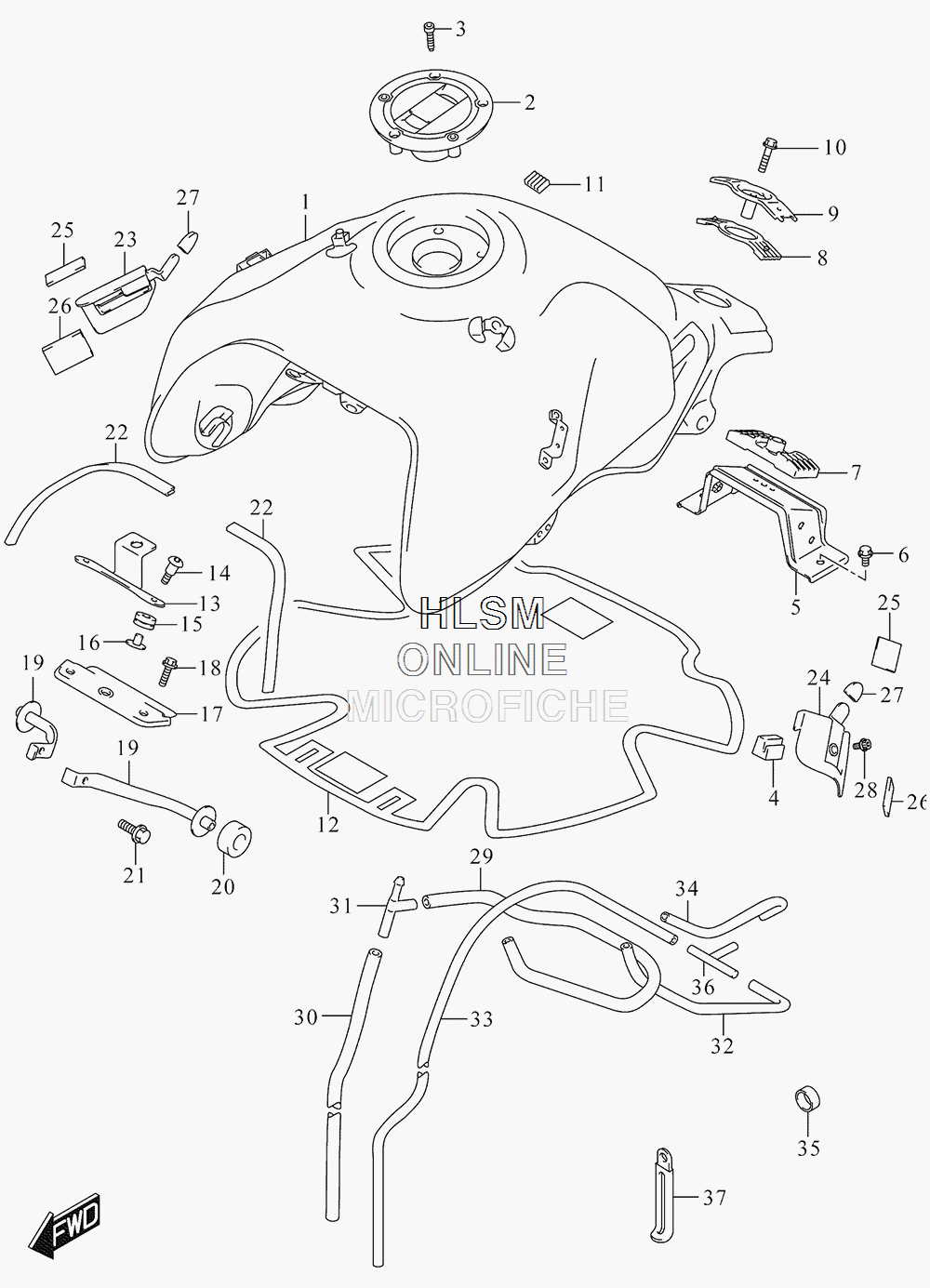

FUEL TANK (CAN) для Suzuki DL650A L5 V-STROM 650 ADVENTURE W/ABS - 2015 года выпуска
-
№АртикулНазвание
-
144100-11J00-YKV TANK, FUEL (BLACK)TANK, FUEL (BLACK)
-
244200-16850 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
344244-11J00 BOLT, FUEL TANK FILLER CAPBOLT, FUEL TANK FILLER CAP
-
444541-11J00 CUSHION, SIDECUSHION, SIDE
-
544550-06G10 BRACKET, REAR LOWERBRACKET, REAR LOWER
-
601550-0816A BOLTBOLT
-
744545-06G00 CUSHION, LOWERCUSHION, LOWER
-
844542-06G00 CUSHION, UPPERCUSHION, UPPER
-
944530-06G00 BRACKET, UPPERBRACKET, UPPER
-
1001550-0835A BOLTBOLT
-
1144572-44G00 FASTENERFASTENER
-
1244194-11J00 SHIELD, TANK CENTERSHIELD, TANK CENTER
-
1344154-11J00 BRACKET, FRONT COVERBRACKET, FRONT COVER
-
1409139-06192 SCREW (6X25)SCREW (6X25)
-
1544511-16G00 CUSHION, FUEL TANK FRONTCUSHION, FUEL TANK FRONT
-
1644512-16G00 WASHER, FUEL TANK FRONTWASHER, FUEL TANK FRONT
-
1744520-11J00 BRACKET, FUEL TANK FRONTBRACKET, FUEL TANK FRONT
-
1801550-0620B BOLTBOLT
-
1944560-11J00 BRACKET, FRONT SIDEBRACKET, FRONT SIDE
-
2044542-11J00 CUSHION, FRONT SIDE BRACKETCUSHION, FRONT SIDE BRACKET
-
2101550-0612B BOLTBOLT
-
2268241-11J01 MOLDING, FUEL TANKMOLDING, FUEL TANK
-
2344179-11J00 BRACKET, FUEL TANK COVER RIGHT HANDBRACKET, FUEL TANK COVER RIGHT HAND
-
2444189-11J00 BRACKET, FUEL TANK COVER LEFT HANDBRACKET, FUEL TANK COVER LEFT HAND
-
2544572-13G00 FASTENER, FUEL TANKFASTENER, FUEL TANK
-
2644183-23H00 CUSHION, FUEL TANK SIDE COVERCUSHION, FUEL TANK SIDE COVER
-
2709329-18001 CUSHIONCUSHION
-
2807120-0612A BOLTBOLT
-
2944423-11J20 HOSE, FUEL TANK DRAIN NO.1HOSE, FUEL TANK DRAIN NO.1
-
3044423-11J30 HOSE, FUEL TANK DRAIN NO.2HOSE, FUEL TANK DRAIN NO.2
-
3109367-08005 3 WAY3 WAY
-
3244424-14J00 HOSE, FUEL TANK BREATHER NO.1HOSE, FUEL TANK BREATHER NO.1
-
3309352-50823-00B HOSE (5X8.2X2000) (L:2000->690)HOSE (5X8.2X2000) (L:2000->690)
-
3409352-50823-600 HOSE (5X8.2X600) (L:600->160)HOSE (5X8.2X600) (L:600->160)
-
3509352-12163-600 HOSE (12X16X600) (L:600->10)HOSE (12X16X600) (L:600->10)
-
3609367-06007 3 WAY3 WAY
-
3709404-06433 CLAMP (L:80)CLAMP (L:80)
