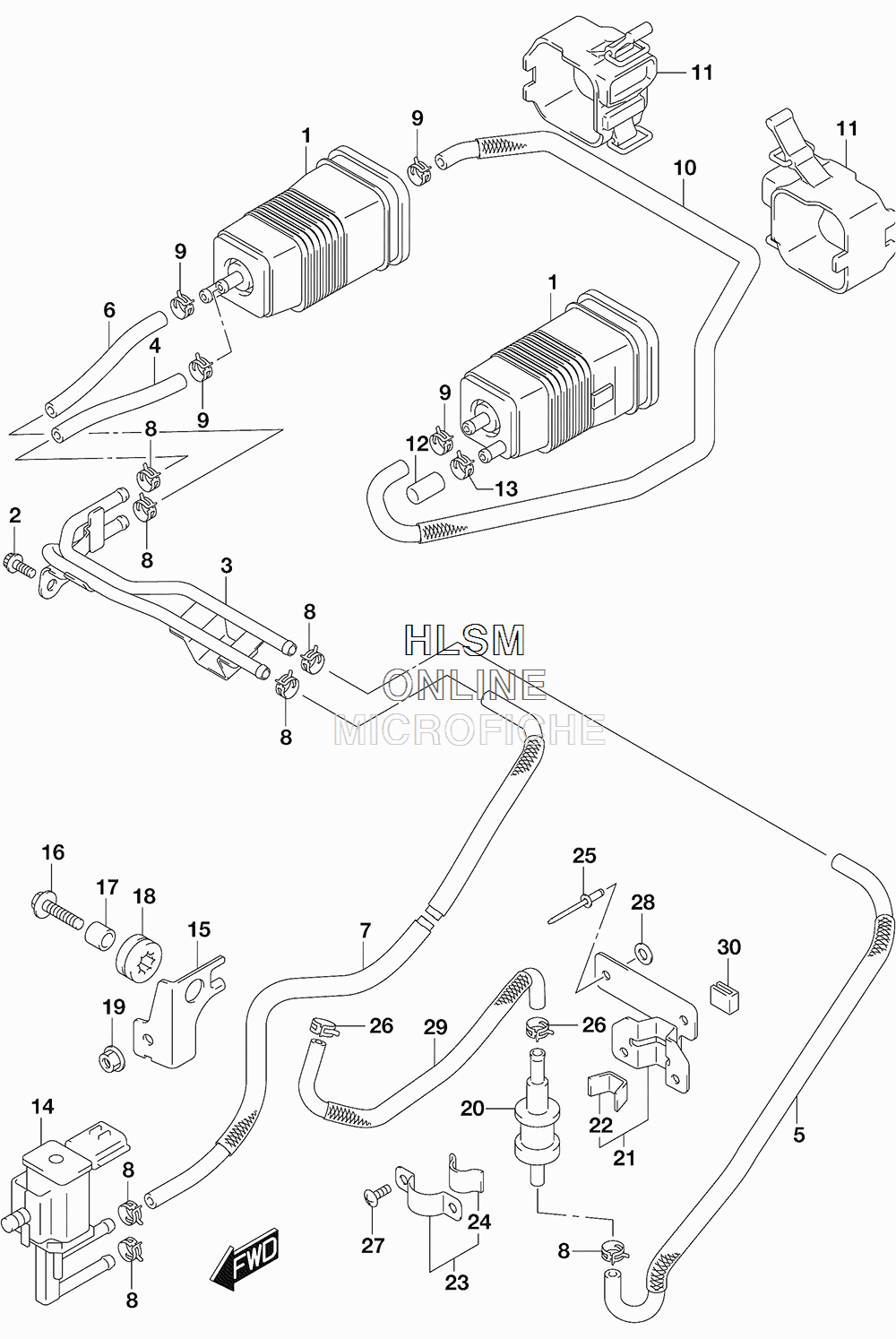

EVAP SYSTEM (CALIF) для Suzuki GSX-R600 L5 - 2015 года выпуска
-
№АртикулНазвание
-
118560-14J00 CANISTER ASSY, CHARCOALCANISTER ASSY, CHARCOAL
-
207120-0612A BOLTBOLT
-
318340-14J00 PIPE COMP, EVAPPIPE COMP, EVAP
-
418561-14J00 HOSE, SURGE NO.1HOSE, SURGE NO.1
-
518562-14J00 HOSE, SURGE NO.2HOSE, SURGE NO.2
-
618563-14J00 HOSE, PURGE NO.1HOSE, PURGE NO.1
-
718564-14J00 HOSE, PURGE NO.2HOSE, PURGE NO.2
-
809401-10409 CLIPCLIP
-
909401-12404 CLIPCLIP
-
1018565-14J00 HOSE, CANISTER JOINTHOSE, CANISTER JOINT
-
1118572-14J00 CUSHION, CANISTERCUSHION, CANISTER
-
1209251-07003 CAPCAP
-
1309401-11413 CLIPCLIP
-
1418117-52G00 VALVE,CANISTER PURGEVALVE,CANISTER PURGE
-
1518571-14J00 BRACKET,PURGE VALVEBRACKET,PURGE VALVE
-
1609116-06203 BOLT (6X30)BOLT (6X30)
-
1709180-06319 SPACER (6.5X10X11.6)SPACER (6.5X10X11.6)
-
1809320-10055 CUSHIONCUSHION
-
1908316-1006A NUTNUT
-
2044240-38A00 VALVE,FUEL TANK BRTHRVALVE,FUEL TANK BRTHR
-
2144890-47H00 PLATE COMP,BRTHR VALVEPLATE COMP,BRTHR VALVE
-
2244894-24A00 ...CUSHION,BRTHER VALVE...CUSHION,BRTHER VALVE
-
2344892-24A00 PLATE,BRTHR VALVE NO.2PLATE,BRTHR VALVE NO.2
-
2444894-24A00 ...CUSHION,F.TANK BRTHR VALVE...CUSHION,F.TANK BRTHR VALVE
-
2509229-04038 RIVETRIVET
-
2609401-11413 CLIPCLIP
-
2702142-0408A SCREWSCREW
-
2808322-0104A WASHERWASHER
-
2944434-37H00 HOSE, TANK AND BREATHER VALVEHOSE, TANK AND BREATHER VALVE
-
3044894-24A00 CUSHION,BRTHR VALVE BRKTCUSHION,BRTHR VALVE BRKT
