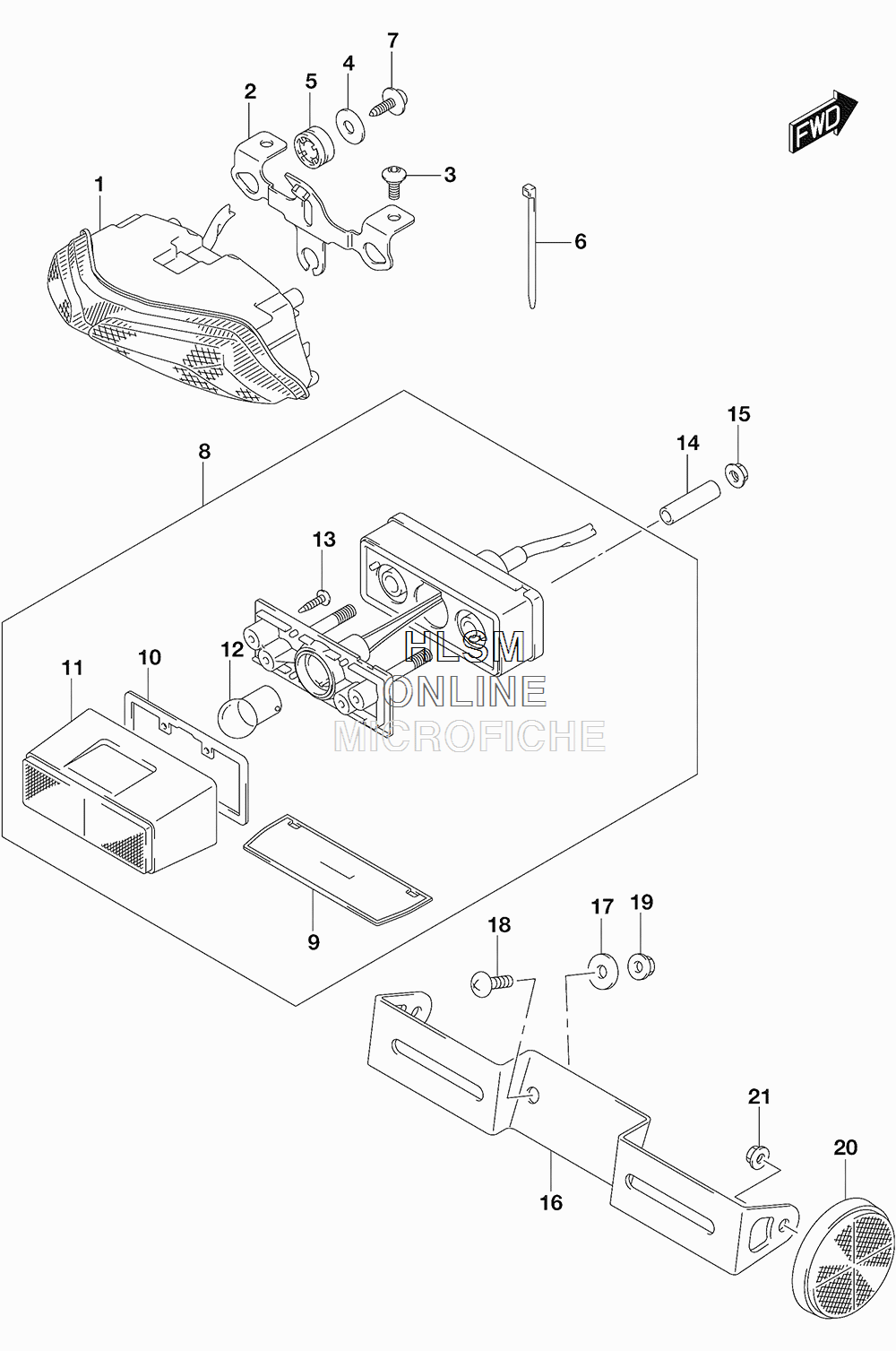

TAILLIGHT ASSY. для Suzuki GSX-R600 L5 - 2015 года выпуска
-
№АртикулНазвание
-
135710-14JA0 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
235726-14J00 BRACKET, REAR COMBINATION LAMPBRACKET, REAR COMBINATION LAMP
-
309139-05074 BOLT (5X13)BOLT (5X13)
-
409160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
509320-10049 CUSHIONCUSHION
-
609407-10404 CLAMP (L:100)CLAMP (L:100)
-
703541-0516A SCREWSCREW
-
835910-41G31 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
935912-41G01 ...LENS...LENS
-
1035913-41G00 ...GASKET...GASKET
-
1135917-41G00 ...COVER...COVER
-
1209471-12140 ...BULB (12V,5W)...BULB (12V,5W)
-
1303211-0416A ...SCREW...SCREW
-
1409180-06356 SPACER (6.5X9X34)SPACER (6.5X9X34)
-
1509159-06096 NUTNUT
-
1635927-14J30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1709160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1802142-0616A SCREWSCREW
-
1908316-1006A NUTNUT
-
2035970-14A20 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
2108316-1005A NUTNUT
