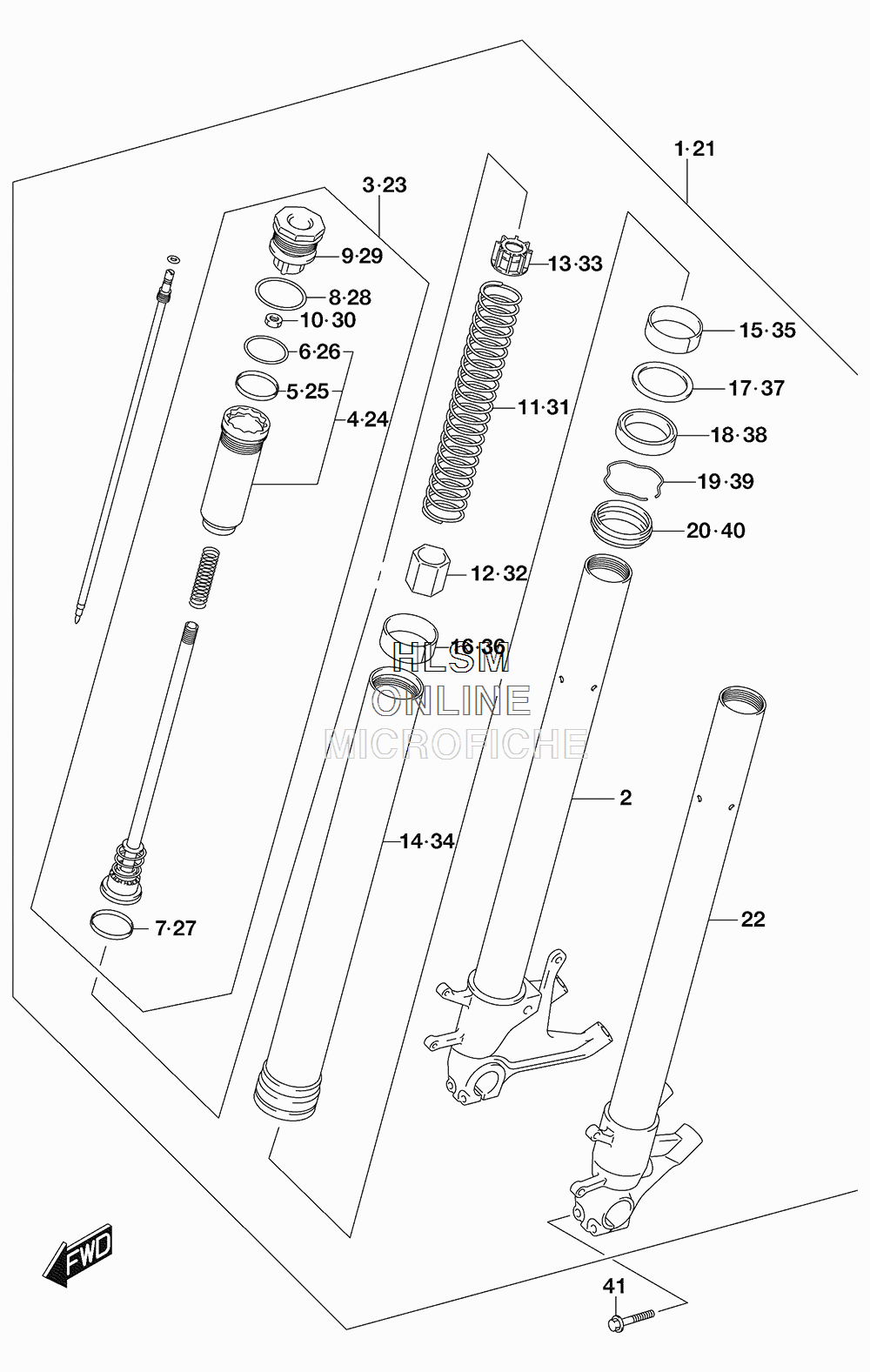

SUSPENSION - FRONT FORK для Suzuki GSX-R600 L5 - 2015 года выпуска
-
№АртикулНазвание
-
151103-14J10 DAMPER ASSY, FRONT FORK (RH)DAMPER ASSY, FRONT FORK (RH)
-
251110-14J00 ...TUBE, INNER (RH)...TUBE, INNER (RH)
-
352110-14J00 ...ROD, PISTON...ROD, PISTON
-
451174-14J00 ......CASE, ROD GUIDE......CASE, ROD GUIDE
-
551118-14J10 .........PISTON RING.........PISTON RING
-
651187-14J00 .........O RING.........O RING
-
751118-14J00 ......RING, PISTON......RING, PISTON
-
851187-01H00 ......O RING......O RING
-
951189-14J00 ......BOLT......BOLT
-
1051827-29G00 ......NUT......NUT
-
1151171-14J10 ...SPRING...SPRING
-
1251176-14J10 ...COLLAR, SPRING...COLLAR, SPRING
-
1351175-14J00 ...COLLAR, SPRING...COLLAR, SPRING
-
1451131-14J00 ...TUBE, OUTER...TUBE, OUTER
-
1551152-01H10 ...BUSH, GUIDE...BUSH, GUIDE
-
1651152-14J00 ...BUSH, SLIDE...BUSH, SLIDE
-
1751168-38B00 ...SPACER, SEAL...SPACER, SEAL
-
1851153-01H10 ...OIL SEAL...OIL SEAL
-
1951556-38B00 ...RING, STOPPER...RING, STOPPER
-
2051173-01H00 ...DUST SEAL...DUST SEAL
-
2151104-14J10 DAMPER ASSY, FRONT FORK (LH)DAMPER ASSY, FRONT FORK (LH)
-
2251120-14J00 ...TUBE, INNER (LH)...TUBE, INNER (LH)
-
2352110-14J00 ...ROD, PISTON...ROD, PISTON
-
2451174-14J00 ......CASE, ROD GUIDE......CASE, ROD GUIDE
-
2551118-14J10 .........PISTON RING.........PISTON RING
-
2651187-14J00 .........O RING.........O RING
-
2751118-14J00 ......RING, PISTON......RING, PISTON
-
2851187-01H00 ......O RING......O RING
-
2951189-14J00 ......BOLT......BOLT
-
3051827-29G00 ......NUT......NUT
-
3151171-14J10 ...SPRING...SPRING
-
3251176-14J10 ...COLLAR, SPRING...COLLAR, SPRING
-
3351175-14J00 ...COLLAR, SPRING...COLLAR, SPRING
-
3451131-14J00 ...TUBE, OUTER...TUBE, OUTER
-
3551152-01H10 ...BUSH, GUIDE...BUSH, GUIDE
-
3651152-14J00 ...BUSH, SLIDE...BUSH, SLIDE
-
3751168-38B00 ...SPACER, SEAL...SPACER, SEAL
-
3851153-01H10 ...OIL SEAL...OIL SEAL
-
3951556-38B00 ...RING, STOPPER...RING, STOPPER
-
4051173-01H00 ...DUST SEAL...DUST SEAL
-
4151321-36F00 BOLTBOLT
