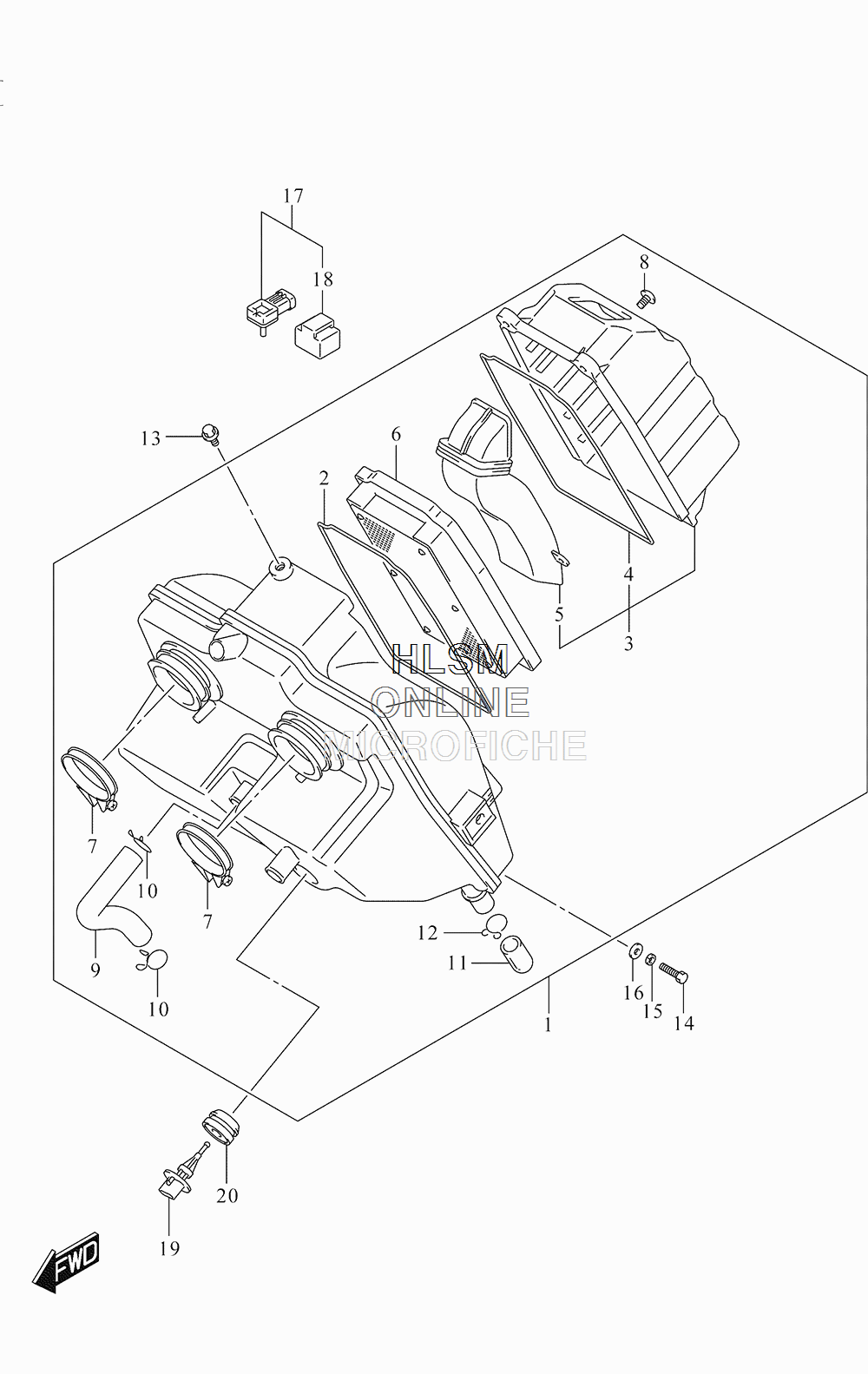

AIR CLEANER для Suzuki GW250 L5 INAZUMA - 2015 года выпуска
-
№АртикулНазвание
-
113700-48H02 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213746-48H00 GASKETGASKET
-
313740-48H00 CAP, AIR CLEANERCAP, AIR CLEANER
-
413746-48H00 GASKETGASKET
-
513891-48H00 TUBE, INLETTUBE, INLET
-
613780-48H00 FILTER ASSYFILTER ASSY
-
713826-48H00 CLAMPCLAMP
-
802142-0512A SCREWSCREW
-
913853-48H00 TUBE, BREATHERTUBE, BREATHER
-
1009401-15101 CLIPCLIP
-
1113878-48H00 PLUG, DRAINPLUG, DRAIN
-
1209401-14101 CLIPCLIP
-
1301550-0610A BOLTBOLT
-
1401500-0620A BOLTBOLT
-
1508321-0106A LOCK WASHERLOCK WASHER
-
1609160-06088 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
1715630-29G20 SENSOR, BOOSTSENSOR, BOOST
-
1815625-29G10 COVERCOVER
-
1913650-52G00 SENSOR, AIR TEMPSENSOR, AIR TEMP
-
2013655-77E00 GROMMET, AIR TEMP SENSORGROMMET, AIR TEMP SENSOR
