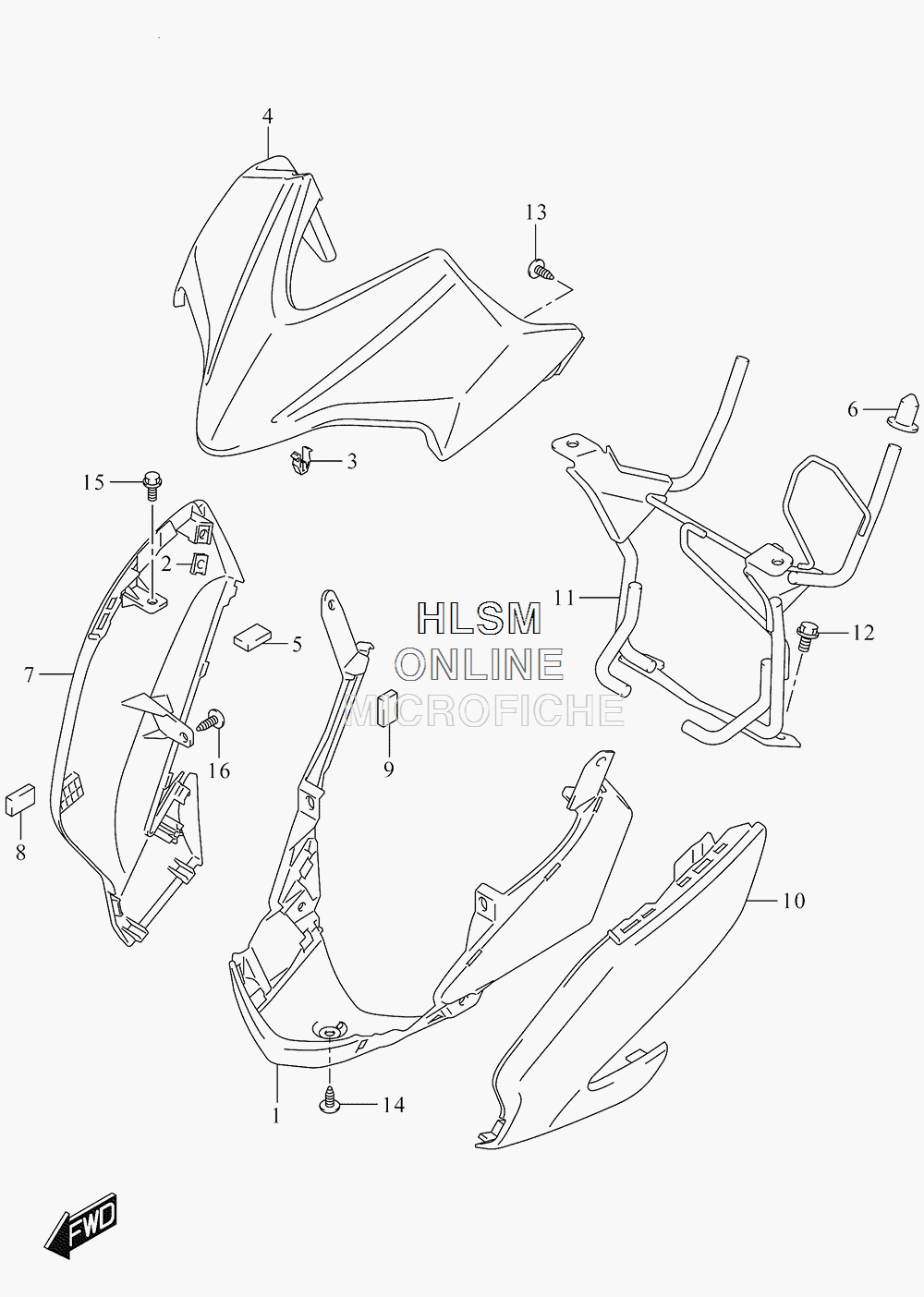

HEADLAMP HOUSING для Suzuki GW250 L5 INAZUMA - 2015 года выпуска
-
№АртикулНазвание
-
151811-48H00-FJA COVER, HEADLAMP LOWER (SILVER/BLACK)COVER, HEADLAMP LOWER (SILVER/BLACK)
-
235157-48H00 NUT, HEADLAMP SIDENUT, HEADLAMP SIDE
-
348291-32GH0 CLIP, HEADLAMP UPPERCLIP, HEADLAMP UPPER
-
451821-48H01-YAY COVER, HEADLAMP UPPER (BLACK)COVER, HEADLAMP UPPER (BLACK)
-
551822-48H00 CUSHION, HEADLAMP UPPERCUSHION, HEADLAMP UPPER
-
651827-48H00 CUSHION, HOUSING BRACECUSHION, HOUSING BRACE
-
751831-48H00-YAY COVER, HEADLAMP SIDE RIGHT HAND (BLACK)COVER, HEADLAMP SIDE RIGHT HAND (BLACK)
-
851832-48H00 CUSHION, HEADLAMP SIDECUSHION, HEADLAMP SIDE
-
951832-48H00 CUSHION, HEADLAMP LOWERCUSHION, HEADLAMP LOWER
-
1051841-48H00-YAY COVER, HEADLAMP SIDE LEFT HAND (BLACK)COVER, HEADLAMP SIDE LEFT HAND (BLACK)
-
1151850-48H10 BRACE, HEADLAMP HOUSINGBRACE, HEADLAMP HOUSING
-
1201550-0612B BOLTBOLT
-
1303541-0516B SCREWSCREW
-
1403541-0516B SCREWSCREW
-
1503541-0516B SCREWSCREW
-
1603541-0520A SCREWSCREW
