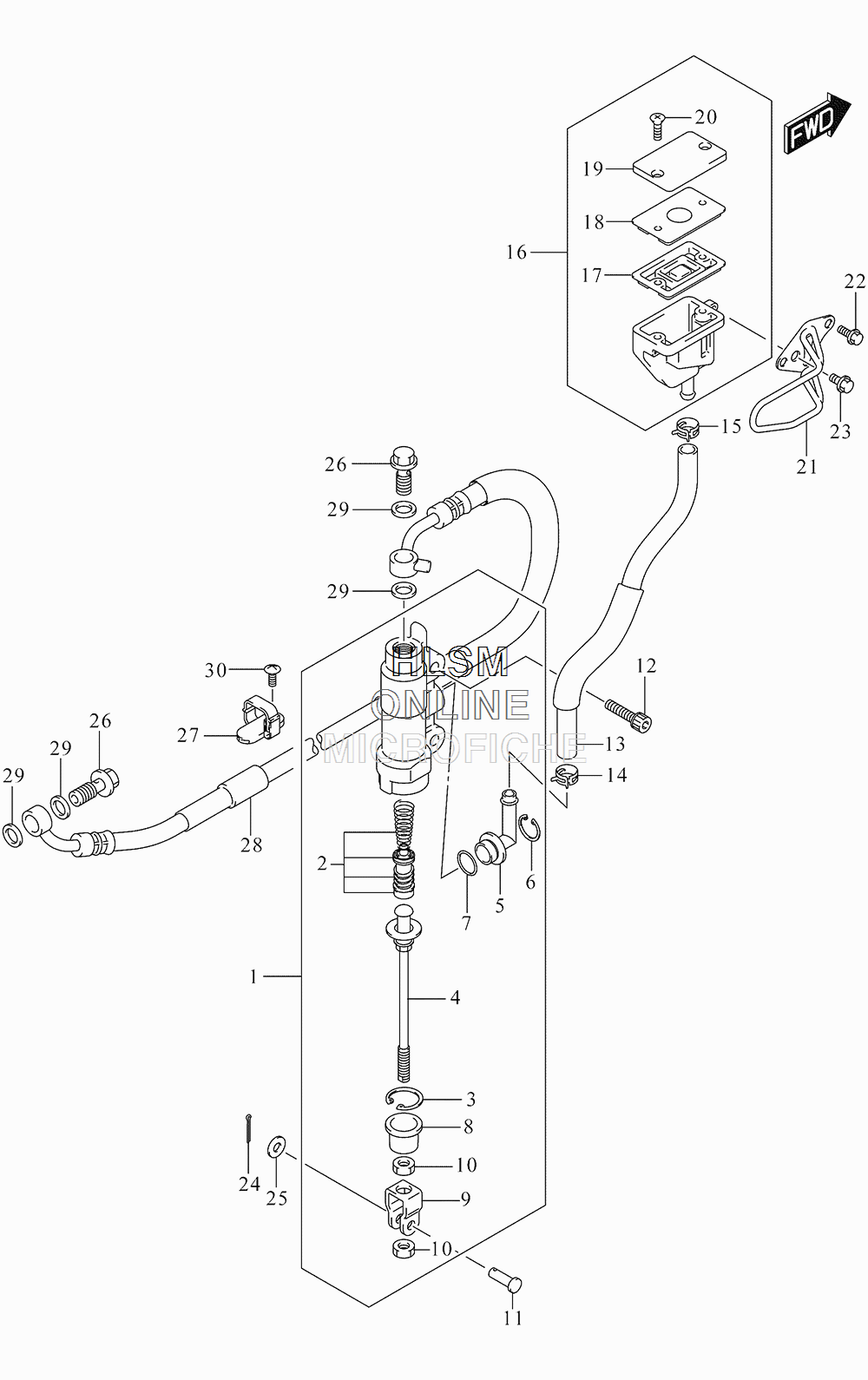

BRAKE - REAR MASTER CYLINDER для Suzuki GW250 L5 INAZUMA - 2015 года выпуска
-
№АртикулНазвание
-
169600-48H00 CYLINDER ASSY, REAR MASTERCYLINDER ASSY, REAR MASTER
-
269600-34810 PISTON/CUP SETPISTON/CUP SET
-
369665-47H00 CIRCLIPCIRCLIP
-
469670-24A00 ROD, PUSHROD, PUSH
-
569672-00B20 CONNECTORCONNECTOR
-
669674-00B20 CIRCLIPCIRCLIP
-
769686-34200 O RINGO RING
-
869691-00A00 BOOTBOOT
-
969692-44H00 YOKEYOKE
-
1069693-05A00 NUTNUT
-
1169697-48H00 PIN, REAR MASTER CYLINDERPIN, REAR MASTER CYLINDER
-
1269698-48H00 BOLT, REAR MASTER CYLINDERBOLT, REAR MASTER CYLINDER
-
1369730-48H00 HOSE, REAR RESERVOIR TANKHOSE, REAR RESERVOIR TANK
-
1469735-48H00 CLIP, HOSE LOWERCLIP, HOSE LOWER
-
1569735-48H10 CLIP, HOSE UPPERCLIP, HOSE UPPER
-
1669740-48H20 TANK ASSY, REAR RESERVOIRTANK ASSY, REAR RESERVOIR
-
1759667-04700 DIAPHRAGMDIAPHRAGM
-
1859668-14F00 PLATEPLATE
-
1959669-48H20 CAPCAP
-
2069689-48H00 SCREWSCREW
-
2169760-48H10 GUARD, REAR RESERVOIR TANKGUARD, REAR RESERVOIR TANK
-
2201547-0612A BOLTBOLT
-
2301547-0620A BOLTBOLT
-
2404111-2015A COTTER PINCOTTER PIN
-
2508322-0106A WASHERWASHER
-
2659492-48H00 BOLT, BRAKE FLUIDBOLT, BRAKE FLUID
-
2761196-48H00 GUIDE, REAR BRAKE HOSEGUIDE, REAR BRAKE HOSE
-
2869480-48H00 HOSE, REAR BRAKEHOSE, REAR BRAKE
-
2959464-48H00 WASHER, BRAKE FLUIDWASHER, BRAKE FLUID
-
3002142-0616A SCREWSCREW
