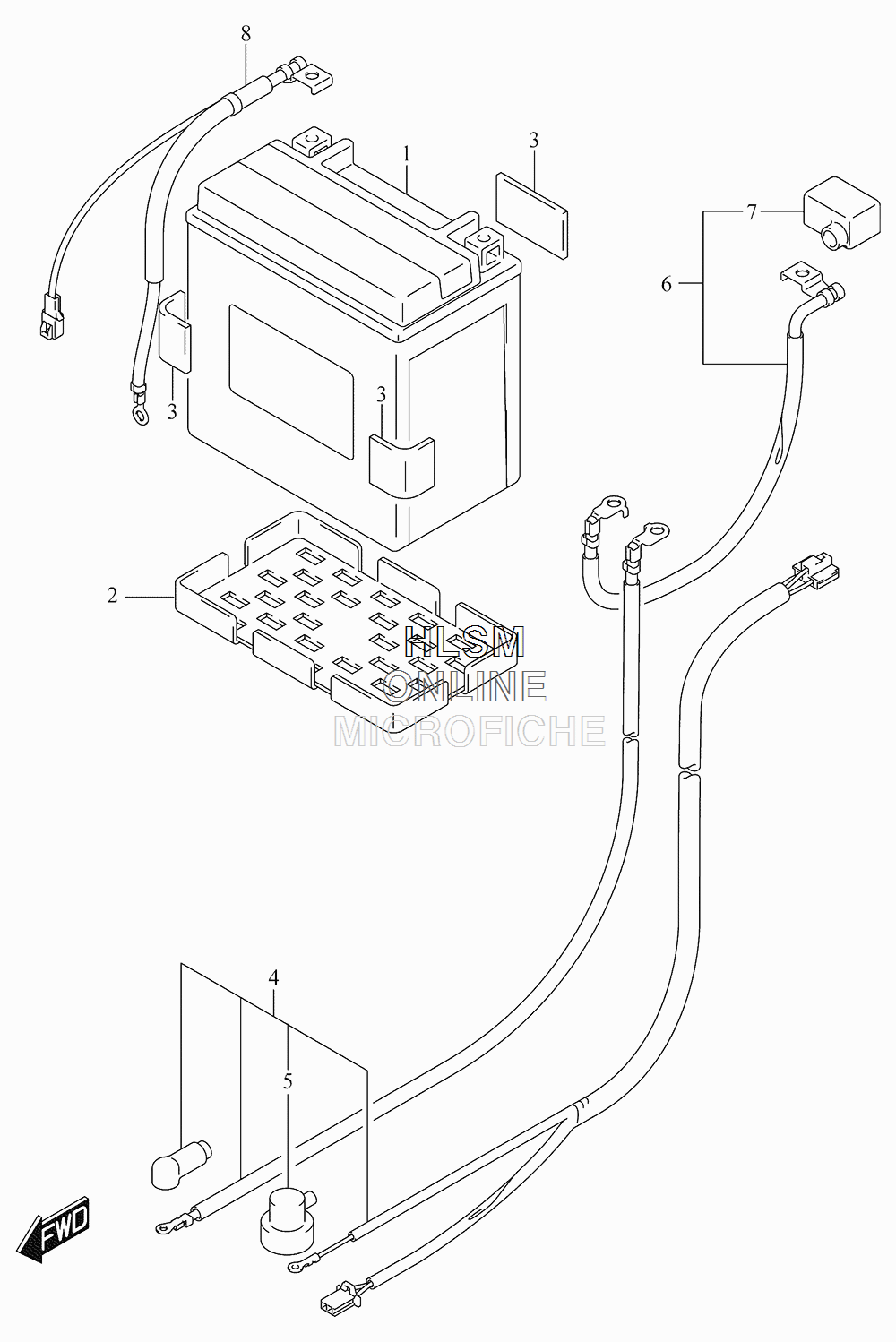

BATTERY для Suzuki VL1500BT L5 INTRUDER - 2015 года выпуска
-
№АртикулНазвание
-
133610-31G01 BATTERY ASSY (FTZ16-BS, 12V18.9AH)BATTERY ASSY (FTZ16-BS, 12V18.9AH)
-
233652-16G00 PROTECTOR, BATTERYPROTECTOR, BATTERY
-
333652-36000 PROTECTOR (30X50X3.0)PROTECTOR (30X50X3.0)
-
433810-06J00 WIRE, STARTER MOTOR LEADWIRE, STARTER MOTOR LEAD
-
536618-43410 ...CAP, OIL PRESSURE SWITCH...CAP, OIL PRESSURE SWITCH
-
633820-06J00 WIRE, BATTERY PLUS LEADWIRE, BATTERY PLUS LEAD
-
733624-16E00 ...CAP, BATTERY PLUS...CAP, BATTERY PLUS
-
833860-40H00 WIRE, BATTERY MINUS LEADWIRE, BATTERY MINUS LEAD
