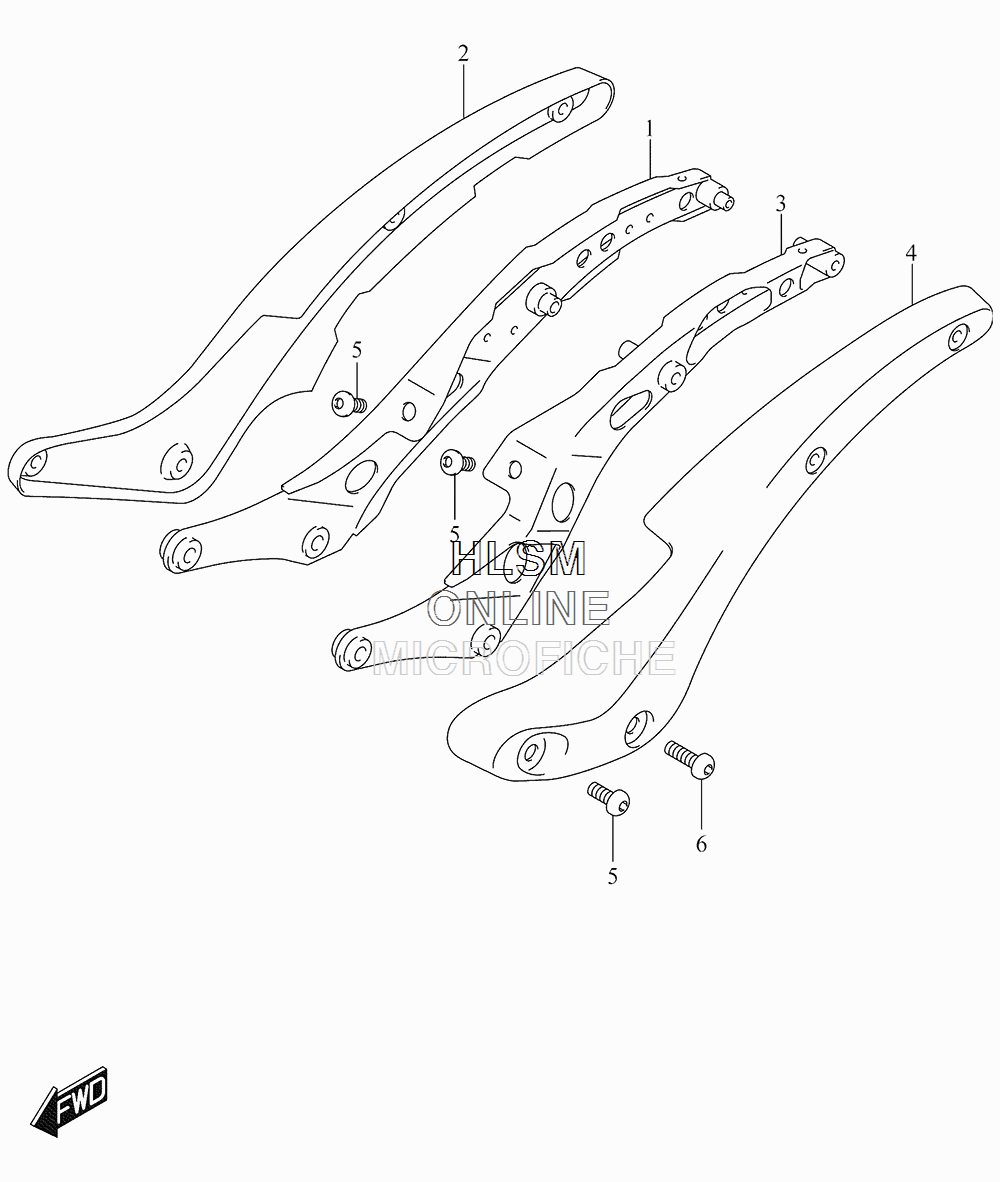

FRAME - REAR для Suzuki VL1500BT L5 INTRUDER - 2015 года выпуска
-
№АртикулНазвание
-
142650-06J00 FRAME, REAR RIGHT HANDFRAME, REAR RIGHT HAND
-
242651-06J10 PLATE, REAR FRAME RIGHT HANDPLATE, REAR FRAME RIGHT HAND
-
342660-06J00 FRAME, REAR LEFT HANDFRAME, REAR LEFT HAND
-
442661-06J10 PLATE, REAR FRAME LEFT HANDPLATE, REAR FRAME LEFT HAND
-
509139-10003 BOLT (10X25)BOLT (10X25)
-
609139-10005 BOLT (10X35)BOLT (10X35)
