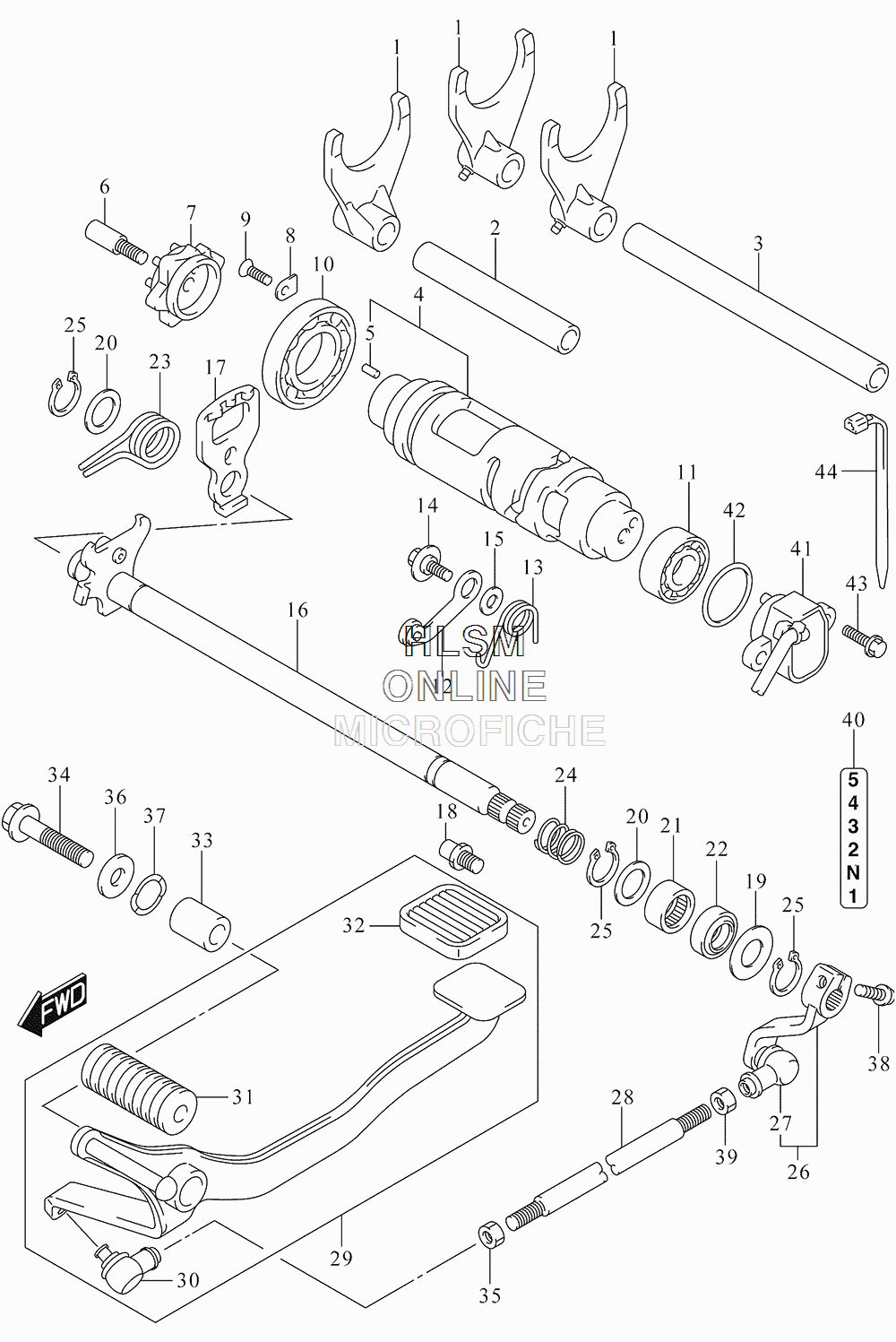

GEAR SHIFTING для Suzuki VL1500BT L5 INTRUDER - 2015 года выпуска
-
№АртикулНазвание
-
125211-17E01 FORK, GEAR SHIFTFORK, GEAR SHIFT
-
225411-38B01 SHAFT, GEAR SHIFT FORK NO.1SHAFT, GEAR SHIFT FORK NO.1
-
325411-44B00 SHAFT, GEAR SHIFT FORK NO.2SHAFT, GEAR SHIFT FORK NO.2
-
425310-06J00 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
504221-04089 ...PIN...PIN
-
625312-42F01 STOPPER, SHIFT CAM DRIVE PLATESTOPPER, SHIFT CAM DRIVE PLATE
-
725381-13E00 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
824741-20A00 RETAINER, SHIFT CAM BEARINGRETAINER, SHIFT CAM BEARING
-
909126-06011 SCREW (6X12)SCREW (6X12)
-
1008113-69050 BEARING (RIGHT HAND)BEARING (RIGHT HAND)
-
1109263-25018 BEARING (25X32X12) (LEFT HAND)BEARING (25X32X12) (LEFT HAND)
-
1225350-24F00 STOPPER, SHIFT CAMSTOPPER, SHIFT CAM
-
1325355-06J00 SPRING, SHIFT CAM STOPPER ARMSPRING, SHIFT CAM STOPPER ARM
-
1409111-06041 BOLT (6X14.3)BOLT (6X14.3)
-
1508211-06141 WASHERWASHER
-
1625510-40H00 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
1725512-06G10 PLATE, SHIFT CAM DRIVEPLATE, SHIFT CAM DRIVE
-
1825671-01011 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
1909160-14016 WASHER (14X29X0.8) (LEFT HAND)WASHER (14X29X0.8) (LEFT HAND)
-
2009181-14167 SHIM (14X22X1)SHIM (14X22X1)
-
2109263-14027 BEARING (14X20X12)BEARING (14X20X12)
-
2209283-14006 OIL SEAL (14X22X6)OIL SEAL (14X22X6)
-
2309440-17009 SPRINGSPRING
-
2409444-20012 SPRINGSPRING
-
2508331-3114A CIRCLIPCIRCLIP
-
2625520-40H00 ARM, GEAR SHIFT LINKARM, GEAR SHIFT LINK
-
2725526-47000 ...COVER, DUST...COVER, DUST
-
2825525-17C20 ROD, GEAR SHIFT LINKROD, GEAR SHIFT LINK
-
2925600-06J10 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
3025526-47000 ...COVER, DUST...COVER, DUST
-
3125652-10F00 ...RUBBER, FRONT...RUBBER, FRONT
-
3243151-01400 ...RUBBER, REAR...RUBBER, REAR
-
3325617-22H00 SPACER, GEAR SHIFT LEVERSPACER, GEAR SHIFT LEVER
-
3409103-10300 BOLT (10X40)BOLT (10X40)
-
3509140-06025 NUT (LEFT HAND)NUT (LEFT HAND)
-
3609160-10093 WASHER (10.5X24X2.3)WASHER (10.5X24X2.3)
-
3709164-18009 WASHERWASHER
-
3801547-0620A BOLTBOLT
-
3908310-0006A NUTNUT
-
4068392-38B00 LABEL, GEAR SHIFTLABEL, GEAR SHIFT
-
4137730-18H02 SENSOR ASSY, GEAR POSITIONSENSOR ASSY, GEAR POSITION
-
4209280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
-
4307120-0516A BOLTBOLT
-
4409407-14403 CLAMP (L:125)CLAMP (L:125)
