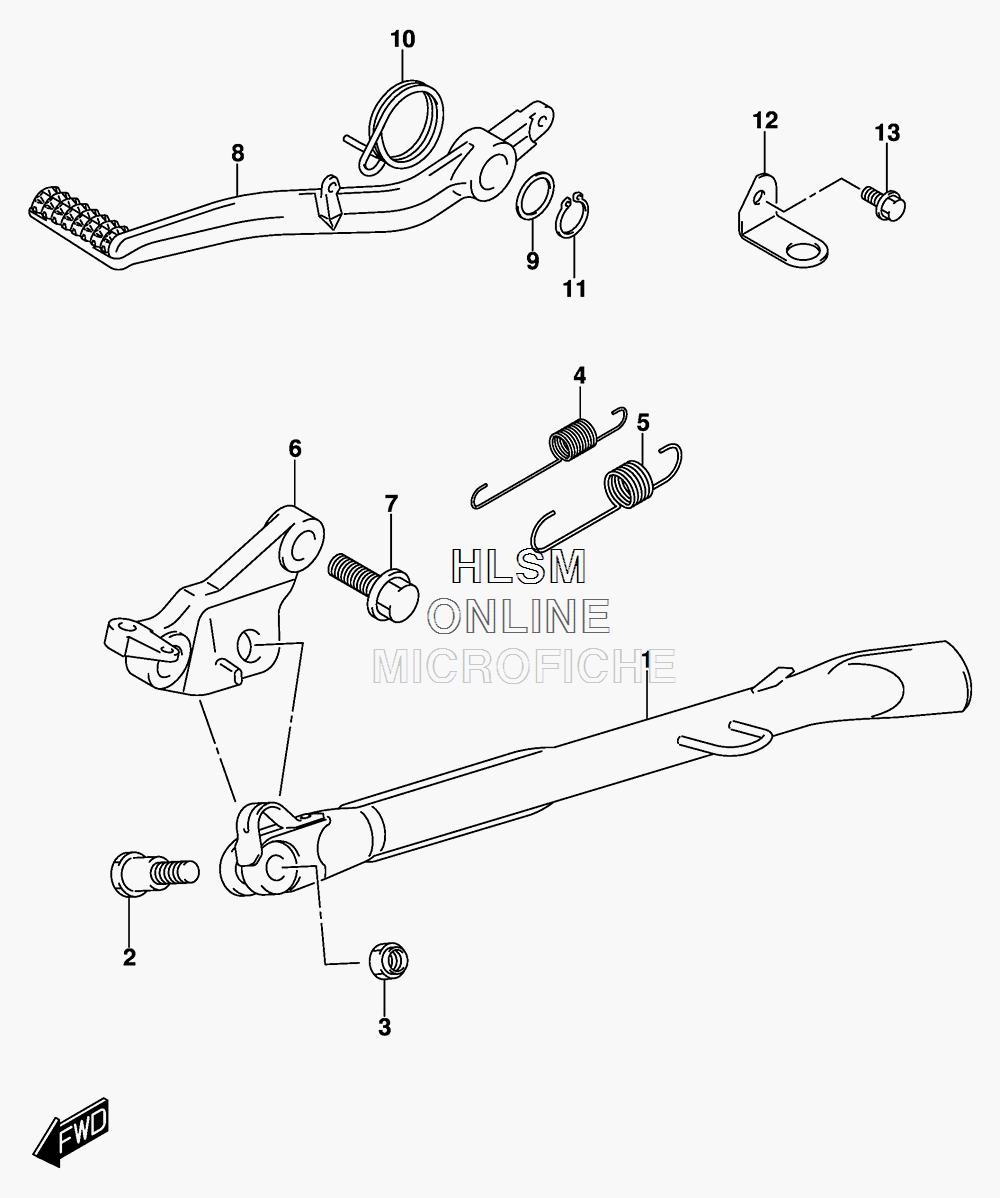

BRAKE PEDAL W/ STAND для Suzuki DL1000A L6 V-STROM 1000 ADVENTURE W/ABS - 2016 года выпуска
-
№АртикулНазвание
-
142310-31J11 STAND, PROPSTAND, PROP
-
209111-10058 BOLT (10X37.5)BOLT (10X37.5)
-
342321-03FK0 NUTNUT
-
409443-14058 SPRING (NO.1)SPRING (NO.1)
-
509443-19011 SPRING (NO.2)SPRING (NO.2)
-
642330-31J00 BRACKET, PROP STANDBRACKET, PROP STAND
-
701550-1235A BOLTBOLT
-
843111-31J00 PEDAL, BRAKEPEDAL, BRAKE
-
909160-18022 WASHER (18X24X1)WASHER (18X24X1)
-
1009448-41005 SPRINGSPRING
-
1108331-3118A CIRCLIPCIRCLIP
-
1243251-31J00 BRACKET, STOP SWITCHBRACKET, STOP SWITCH
-
1301550-0612A BOLTBOLT
