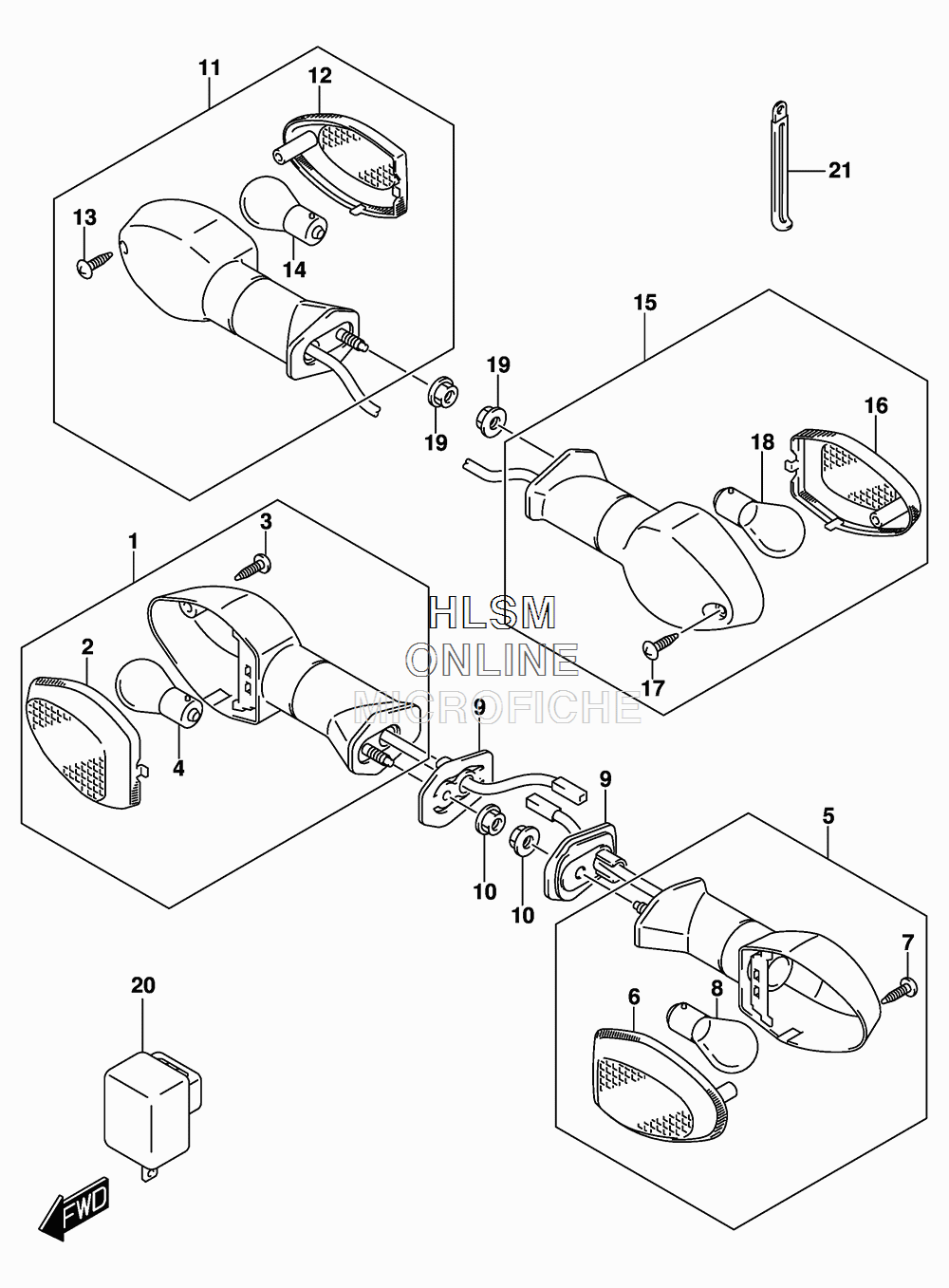

TURN SIGNAL ASSY. для Suzuki DL1000A L6 V-STROM 1000 ADVENTURE W/ABS - 2016 года выпуска
-
№АртикулНазвание
-
135601-08JA0 LAMP ASSY, FRONT TURNSIGNAL RHLAMP ASSY, FRONT TURNSIGNAL RH
-
235612-08JA0 ...LENS, RH...LENS, RH
-
303211-0414B ...SCREW...SCREW
-
409471-12186 ...BULB (12V,21W)...BULB (12V,21W)
-
535602-08JA0 LAMP ASSY, FRONT TURNSIGNAL LHLAMP ASSY, FRONT TURNSIGNAL LH
-
635632-08JA0 ...LENS, LH...LENS, LH
-
703211-0414B ...SCREW...SCREW
-
809471-12186 ...BULB (12V,21W)...BULB (12V,21W)
-
935629-18G00 PLATE, FRONT TURNSIGNALPLATE, FRONT TURNSIGNAL
-
1008316-1005A NUTNUT
-
1135603-08JA0 LAMP ASSY, REAR TURNSIGNAL RHLAMP ASSY, REAR TURNSIGNAL RH
-
1235632-08JA0 ...LENS, RH...LENS, RH
-
1303211-0414B ...SCREW...SCREW
-
1409471-12186 ...BULB (12V,21W)...BULB (12V,21W)
-
1535604-08JA0 LAMP ASSY, REAR TURNSIGNAL LHLAMP ASSY, REAR TURNSIGNAL LH
-
1635612-08JA0 ...LENS, LH...LENS, LH
-
1703211-0414B ...SCREW...SCREW
-
1809471-12186 ...BULB (12V,21W)...BULB (12V,21W)
-
1908316-1005A NUTNUT
-
2038610-06F00 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
-
2109404-06429 CLAMP (L:45)CLAMP (L:45)
