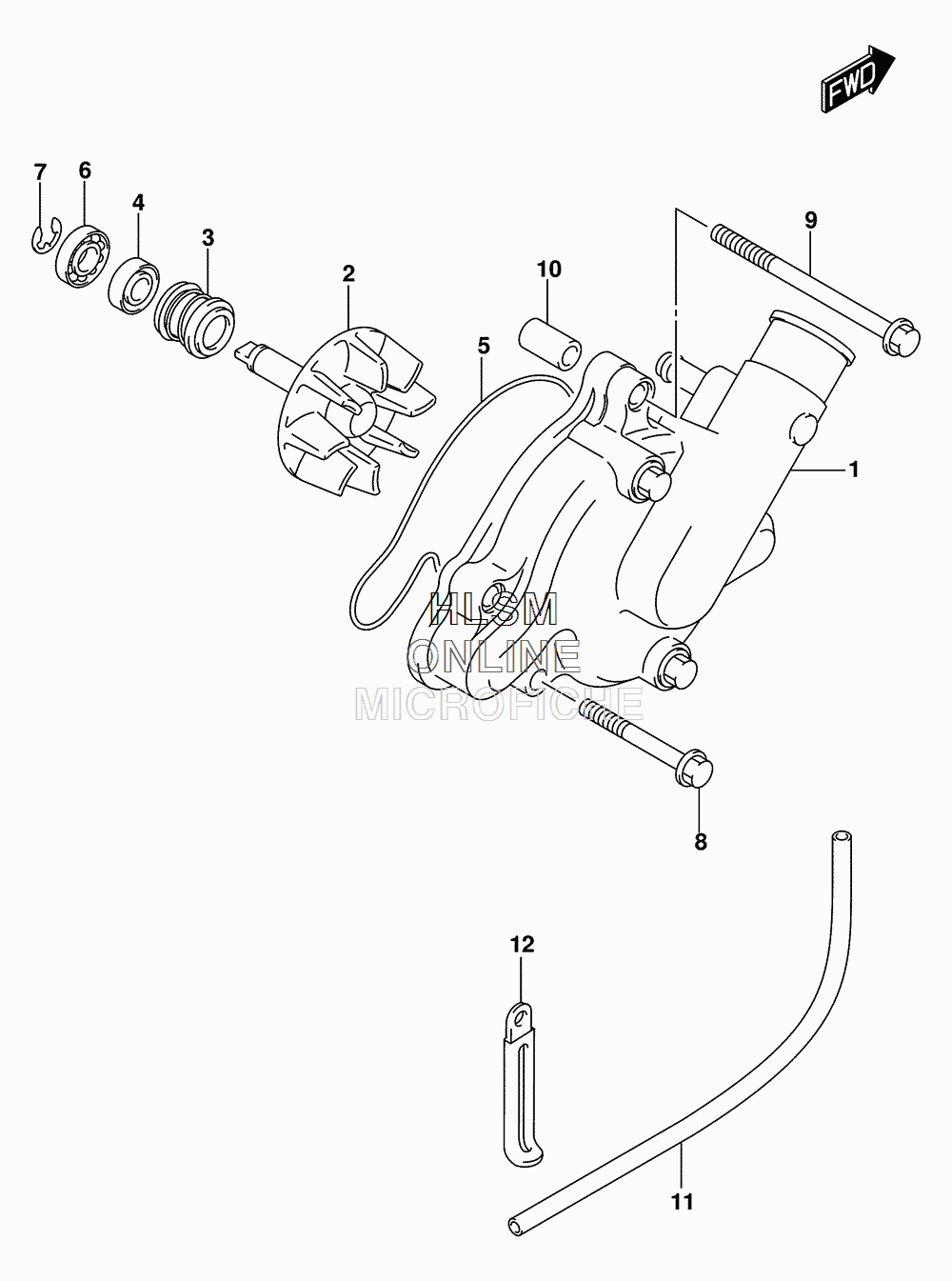

WATER PUMP для Suzuki DL1000A L6 V-STROM 1000 ADVENTURE W/ABS - 2016 года выпуска
-
№АртикулНазвание
-
117410-31J10 CASE, WATER PUMPCASE, WATER PUMP
-
217491-16G00 IMPELLERIMPELLER
-
317470-02F10 SEAL, MECHANICALSEAL, MECHANICAL
-
409283-10005 OIL SEAL (10X20X5)OIL SEAL (10X20X5)
-
517435-02F00 O RINGO RING
-
609262-10016 BEARING (10X22X5)BEARING (10X22X5)
-
708332-1108A E RINGE RING
-
809103-06213 BOLT (6X30)BOLT (6X30)
-
909103-06239 BOLT (6X65)BOLT (6X65)
-
1004211-09149 PINPIN
-
1109352-42703-600 HOSE (4.2X7X600) (L:600->140)HOSE (4.2X7X600) (L:600->140)
-
1209404-06429 CLAMP (L:45)CLAMP (L:45)
