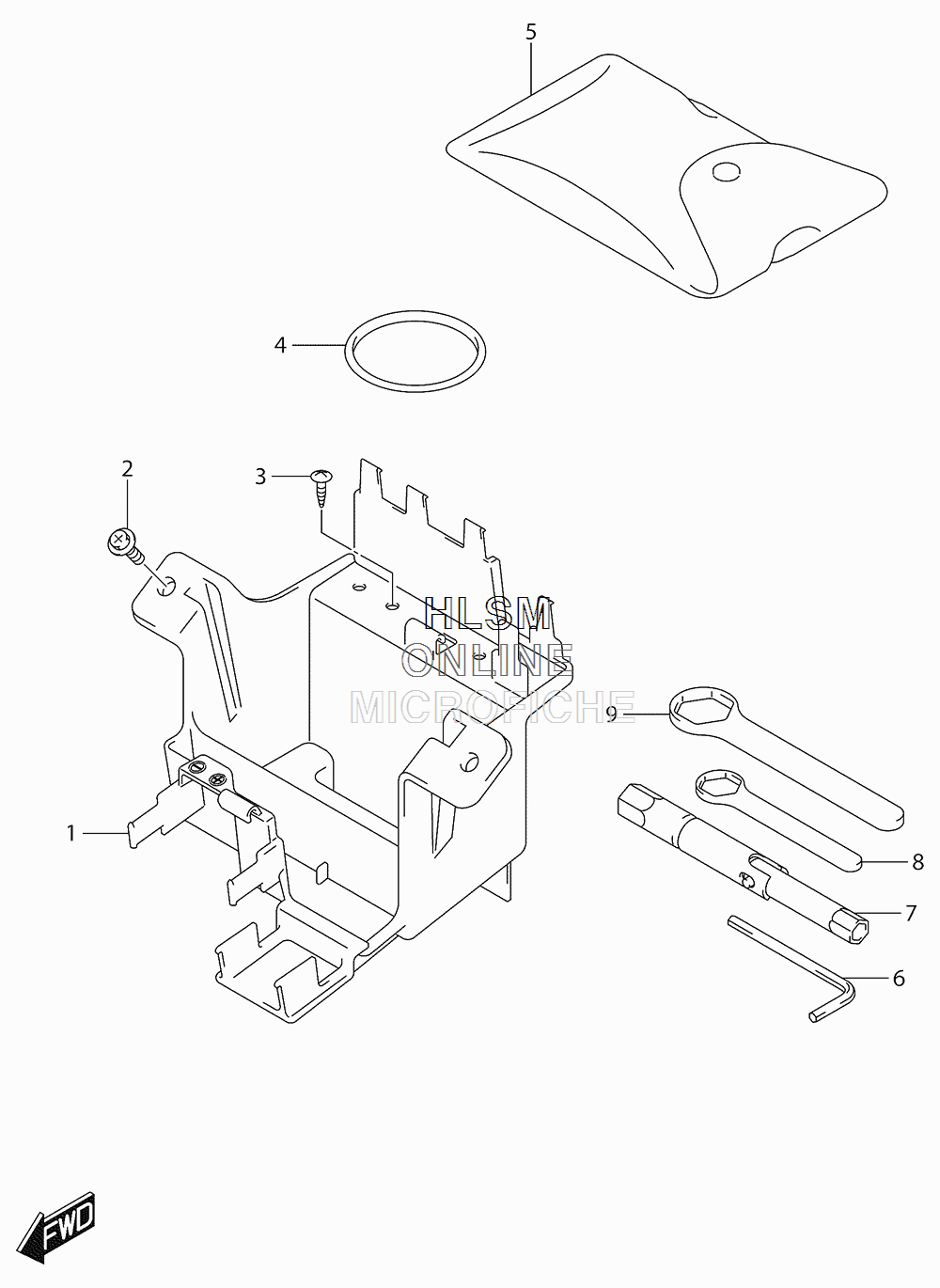

BATTERY HOLDER для Suzuki DL650XA L6 V-STROM 650X EXP W/ABS - 2016 года выпуска
-
№АртикулНазвание
-
147431-27GA0 HOLDER, BATTERYHOLDER, BATTERY
-
209111-06106 BOLT (6X12)BOLT (6X12)
-
303541-0516A SCREWSCREW
-
409280-63003 O RING (D:3.5,ID:62.6)O RING (D:3.5,ID:62.6)
-
509800-21055 TOOL ASSYTOOL ASSY
-
609816-00059 HEXAGON SPANNER, 5HEXAGON SPANNER, 5
-
709816-00149 BOX, SPANNERBOX, SPANNER
-
809817-00035 RING SPANNER, 22RING SPANNER, 22
-
909817-00039 RING, SPANNER 24RING, SPANNER 24
