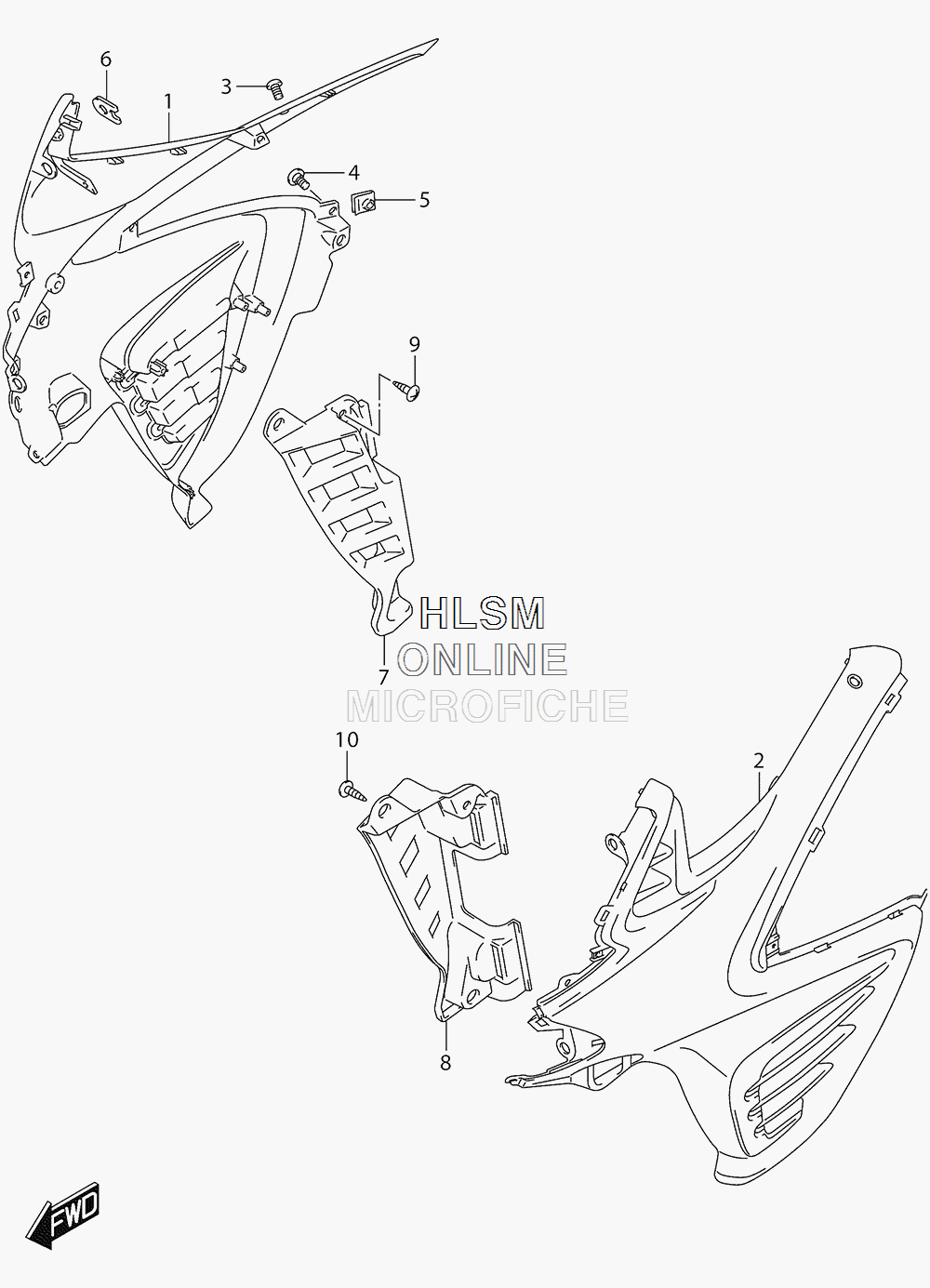

COWLING - SIDE для Suzuki DL650XA L6 V-STROM 650X EXP W/ABS - 2016 года выпуска
-
№АртикулНазвание
-
194421-11J00 COWLING, SIDE RHCOWLING, SIDE RH
-
294431-11J00 COWLING, SIDE LHCOWLING, SIDE LH
-
309139-06051 SCREW (6X10)SCREW (6X10)
-
409139-06144 SCREW (6X12)SCREW (6X12)
-
509148-05052 NUTNUT
-
609148-06020 NUTNUT
-
794462-11J01 COVER, INNER RHCOVER, INNER RH
-
894463-11J01 COVER, INNER LHCOVER, INNER LH
-
903241-0512B SCREW (RH)SCREW (RH)
-
1003541-0516A SCREW (LH)SCREW (LH)
