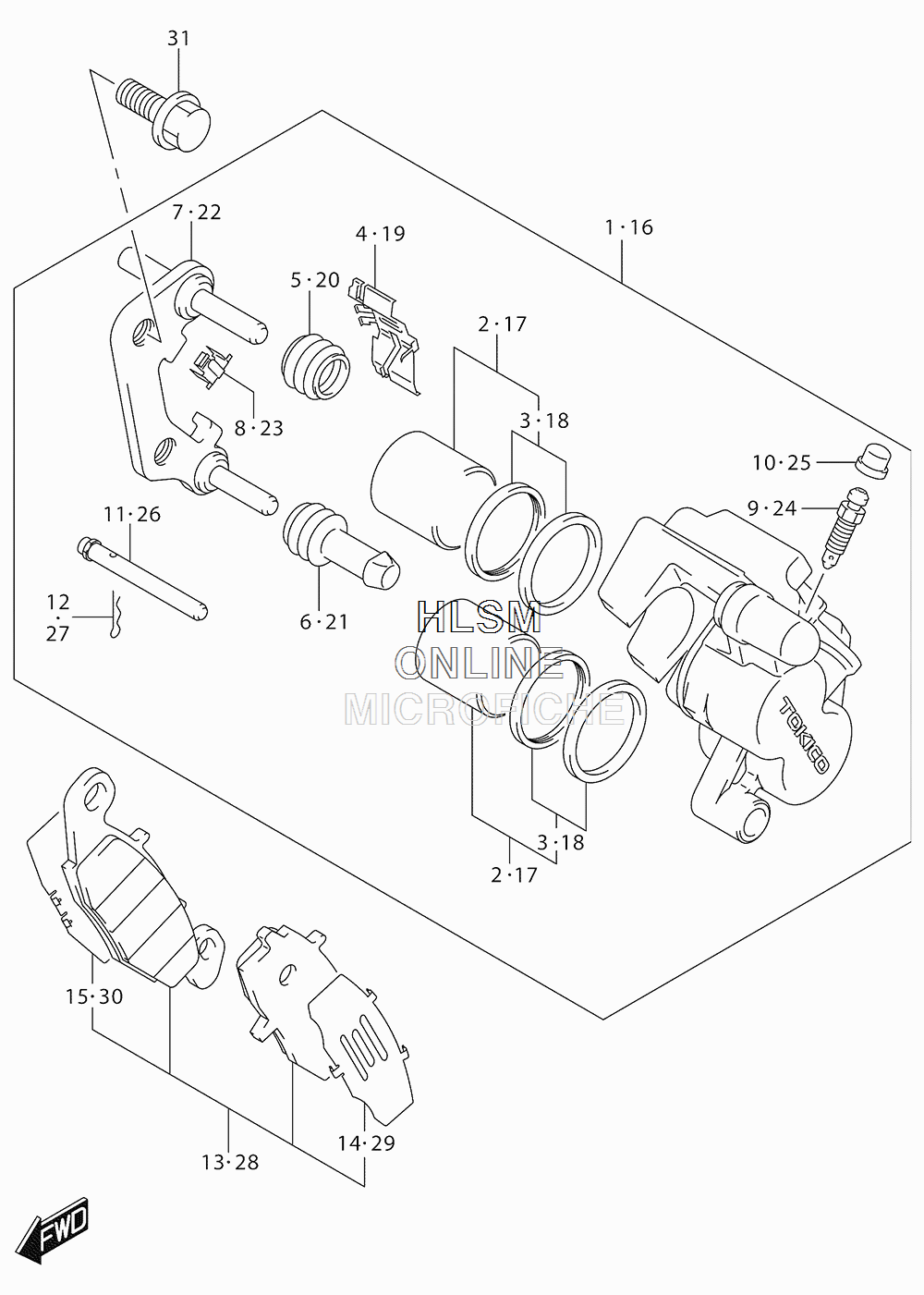

BRAKE - FRONT CALIPER для Suzuki DL650XA L6 V-STROM 650X EXP W/ABS - 2016 года выпуска
-
№АртикулНазвание
-
159100-33DF1-999 CALIPER ASSY, FRONT RHCALIPER ASSY, FRONT RH
-
259300-01820 ...PISTON SET...PISTON SET
-
359100-04851 ......SEAL SET, PISTON......SEAL SET, PISTON
-
459115-33D00 ...SPRING RH...SPRING RH
-
559112-44B00 ...BOOT...BOOT
-
659313-36500 ...INSULATOR...INSULATOR
-
759150-33D01 ...CARRIER, CALIPER RH...CARRIER, CALIPER RH
-
859116-33D00 ...GUIDE...GUIDE
-
959121-18410 ...BLEEDER...BLEEDER
-
1055156-66310 ...CAP...CAP
-
1159141-44B01 ...PIN...PIN
-
1269142-45000 ...CLIP...CLIP
-
1359102-33870 PAD AND SHIM SET RHPAD AND SHIM SET RH
-
1459171-33D00 ...SHIM...SHIM
-
1559172-33D00 ...SHIM, NO.2...SHIM, NO.2
-
1659300-33DF1-999 CALIPER ASSY, FRONT LHCALIPER ASSY, FRONT LH
-
1759300-01820 ...PISTON SET...PISTON SET
-
1859100-04851 ......SEAL SET, PISTON......SEAL SET, PISTON
-
1959315-33D00 ...SPRING LH...SPRING LH
-
2059112-44B00 ...BOOT...BOOT
-
2159313-36500 ...INSULATOR...INSULATOR
-
2259350-33D01 ...CARRIER, CALIPER LH...CARRIER, CALIPER LH
-
2359116-33D00 ...GUIDE...GUIDE
-
2459121-18410 ...BLEEDER...BLEEDER
-
2555156-66310 ...CAP...CAP
-
2659141-44B01 ...PIN...PIN
-
2769142-45000 ...CLIP...CLIP
-
2859302-33850 PAD AND SHIM SET LHPAD AND SHIM SET LH
-
2959171-33D00 ...SHIM...SHIM
-
3059172-33D00 ...SHIM, NO.2...SHIM, NO.2
-
3101550-1025A BOLTBOLT
