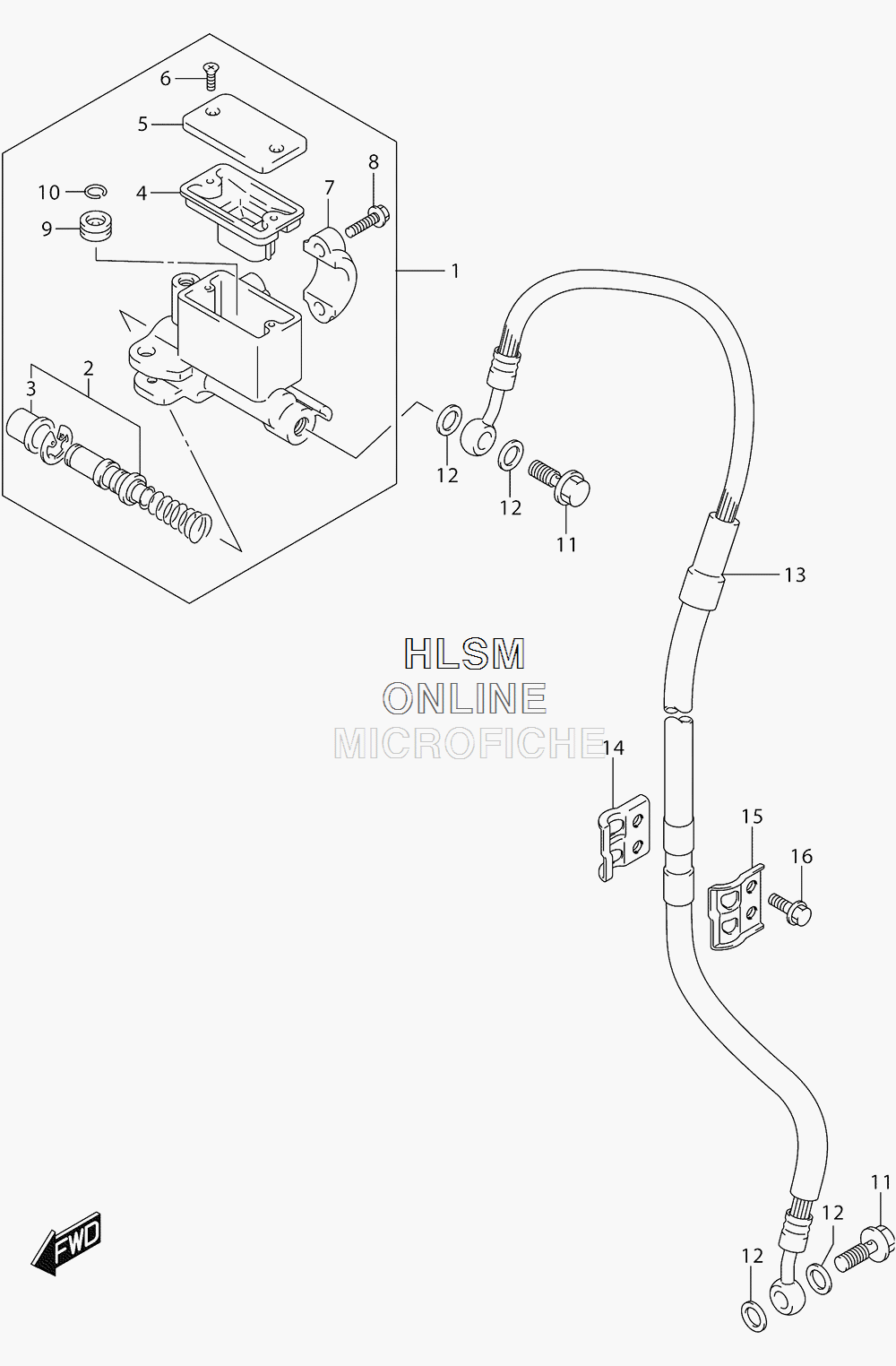

BRAKE - FRONT MASTER CYLINDER для Suzuki DR-Z400SM L6 - 2016 года выпуска
-
№АртикулНазвание
-
159600-44E30 CYLINDER ASSY, FRONT MASTERCYLINDER ASSY, FRONT MASTER
-
269600-38810 ...PISTON/CUP SET...PISTON/CUP SET
-
359666-44300 ......BOOT......BOOT
-
459667-44B00 ...DIAPHRAGM...DIAPHRAGM
-
559669-03D00 ...CAP (SILVER)...CAP (SILVER)
-
602122-04127 ...SCREW...SCREW
-
759671-03D00 ...HOLDER (SILVER)...HOLDER (SILVER)
-
859675-27C00 ...BOLT...BOLT
-
959748-36E00 ...SEPARATOR...SEPARATOR
-
1069744-36E00 ...RING...RING
-
1109360-10062 UNIONUNION
-
1209161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
1359480-29F31 HOSE, FRONT BRAKEHOSE, FRONT BRAKE
-
1459260-36E00 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
1559270-29F00 CLAMP, BRAKE HOSE OUTERCLAMP, BRAKE HOSE OUTER
-
1601547-0616A BOLTBOLT
