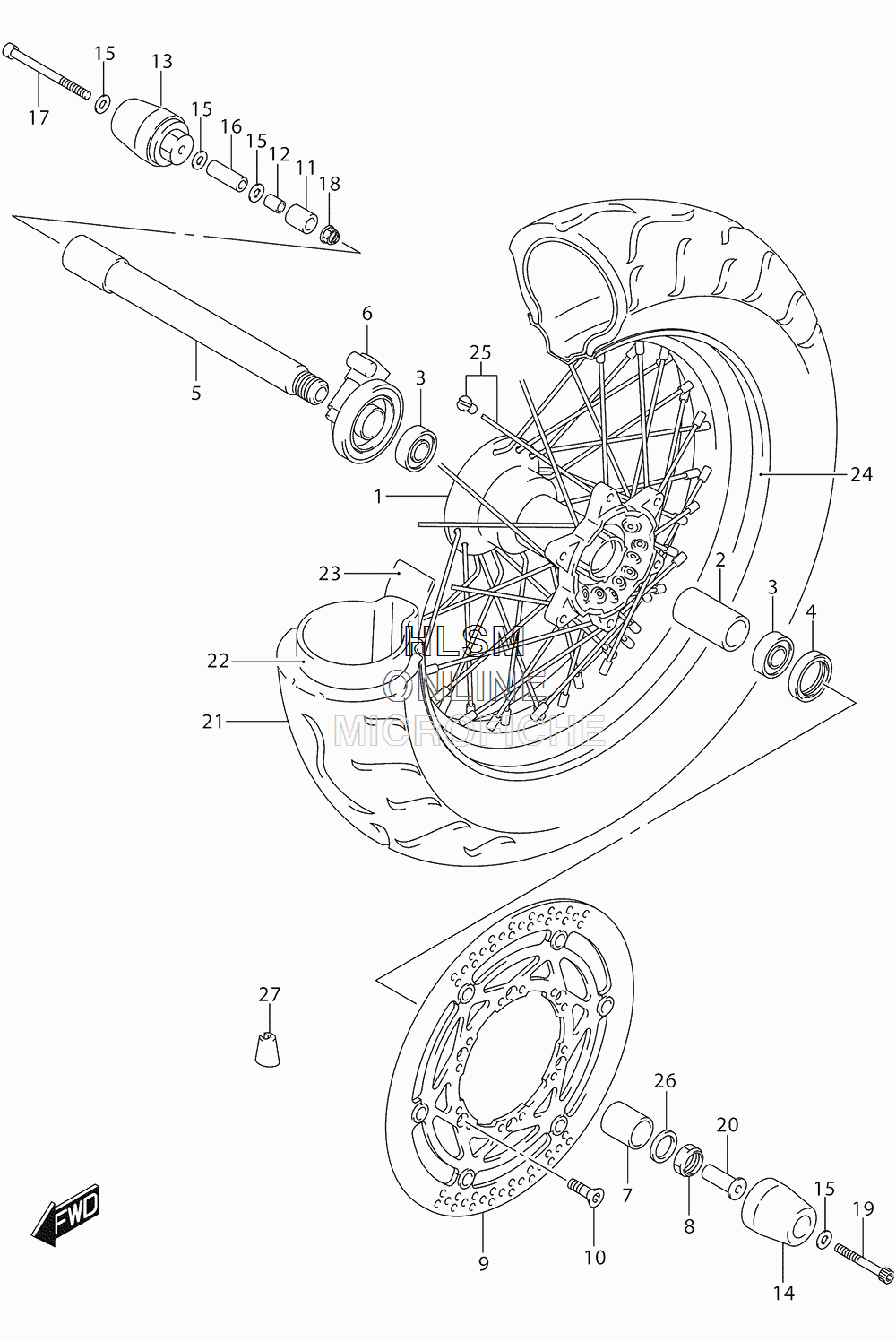

WHEEL - FRONT для Suzuki DR-Z400SM L6 - 2016 года выпуска
-
№АртикулНазвание
-
154111-29F10 HUB, FRONT WHEELHUB, FRONT WHEEL
-
254731-36E10 SPACER, FRONT HUB (20.5X27.3X70)SPACER, FRONT HUB (20.5X27.3X70)
-
308130-69047 BEARINGBEARING
-
409283-25083 OIL SEAL (25X37X6)OIL SEAL (25X37X6)
-
554711-29F10 AXLE, FRONTAXLE, FRONT
-
654600-29F10 BOX ASSY, SPEEDOMETER GEARBOX ASSY, SPEEDOMETER GEAR
-
754751-36E10 SPACER, AXLE LEFT HAND (L:31)SPACER, AXLE LEFT HAND (L:31)
-
809159-18018 NUTNUT
-
959220-29F00 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
1009120-06014 SCREW (6X18)SCREW (6X18)
-
1154744-29F00 EXPANDER, AXLE SLIDEREXPANDER, AXLE SLIDER
-
1209180-05048 SPACER (5.5X8X10.5)SPACER (5.5X8X10.5)
-
1354745-29F00 SLIDER, FRONT AXLE, RHSLIDER, FRONT AXLE, RH
-
1454755-29F00 SLIDER, AXLESLIDER, AXLE
-
1509160-05029 WASHER (5.5X12X0.8)WASHER (5.5X12X0.8)
-
1609180-05060 SPACER (5.5X9.5X26)SPACER (5.5X9.5X26)
-
1709106-05021 BOLT (5X65)BOLT (5X65)
-
1808316-2005B NUTNUT
-
1907130-0540A BOLTBOLT
-
2009159-05050 NUTNUT
-
2155110-29FA0 TIRE, FRONT (120/70R17M/C 58H) (D208F DUNLOP)TIRE, FRONT (120/70R17M/C 58H) (D208F DUNLOP)
-
2255200-29FA0 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
2355261-29FA0 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
2455311-29F30 RIM, FRONT WHEEL (17XMT3.50 AL)RIM, FRONT WHEEL (17XMT3.50 AL)
-
2555320-29F10 SPOKE SET, FRONT WHEELSPOKE SET, FRONT WHEEL
-
2609160-18034 WASHER (18X26X2.8)WASHER (18X26X2.8)
-
2755411-26G00 BALANCER, WHEELBALANCER, WHEEL
-
2755413-41F00 BALANCER, WHEEL NO.3BALANCER, WHEEL NO.3
