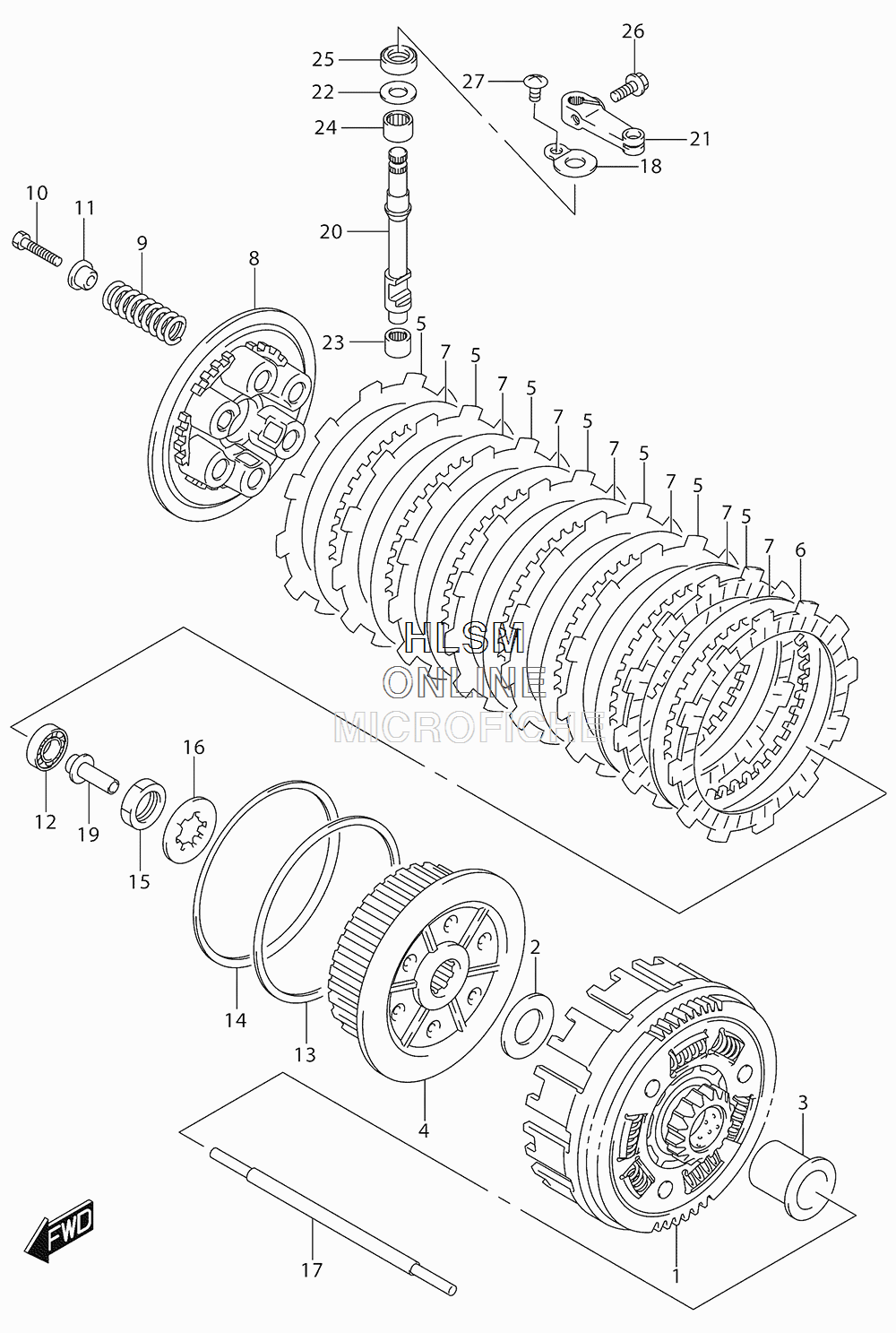

CLUTCH для Suzuki DR-Z400SM L6 - 2016 года выпуска
-
№АртикулНазвание
-
121200-29F10 GEAR ASSY, PRIMARY DRIVEN (NT:74/16)GEAR ASSY, PRIMARY DRIVEN (NT:74/16)
-
208211-22425 WASHERWASHER
-
321251-29F00 SPACER, PRIMARY DRIVEN GEARSPACER, PRIMARY DRIVEN GEAR
-
421410-29F00 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
521441-29F00 PLATE, CLUTCH DRIVE NO.1 (T:3.0)PLATE, CLUTCH DRIVE NO.1 (T:3.0)
-
621442-29F00 PLATE, CLUTCH DRIVE NO.2 (T:3.0)PLATE, CLUTCH DRIVE NO.2 (T:3.0)
-
721451-44D00 PLATE, CLUTCH DRIVEN (T:1.6)PLATE, CLUTCH DRIVEN (T:1.6)
-
821462-29F00 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
921413-29F00 SPRING, CLUTCHSPRING, CLUTCH
-
1007130-0630A BOLTBOLT
-
1121414-29F00 WASHER, CLUTCH SPRINGWASHER, CLUTCH SPRING
-
1209262-12001 BEARING (12X28X8)BEARING (12X28X8)
-
1309160-00003 WASHER (112X122X1)WASHER (112X122X1)
-
1409164-00008 WASHERWASHER
-
1509140-20001 NUTNUT
-
1609167-22021 LOCK WASHERLOCK WASHER
-
1723110-29F00 ROD, CLUTCH PUSHROD, CLUTCH PUSH
-
1823117-05200 RETAINER, CL RLSE OIL SEALRETAINER, CL RLSE OIL SEAL
-
1923121-29F00 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2023122-29F00 CAMSHAFT, CLUTCH RELEASECAMSHAFT, CLUTCH RELEASE
-
2123271-20902 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
2209181-10195 SHIM (10X20X1)SHIM (10X20X1)
-
2309263-10014 BEARING (10X14X10)BEARING (10X14X10)
-
2409263-12024 BEARING (12X16X10)BEARING (12X16X10)
-
2509282-10012 OIL SEAL (10X20X6)OIL SEAL (10X20X6)
-
2601547-0616A BOLTBOLT
-
2702142-0610A SCREWSCREW
