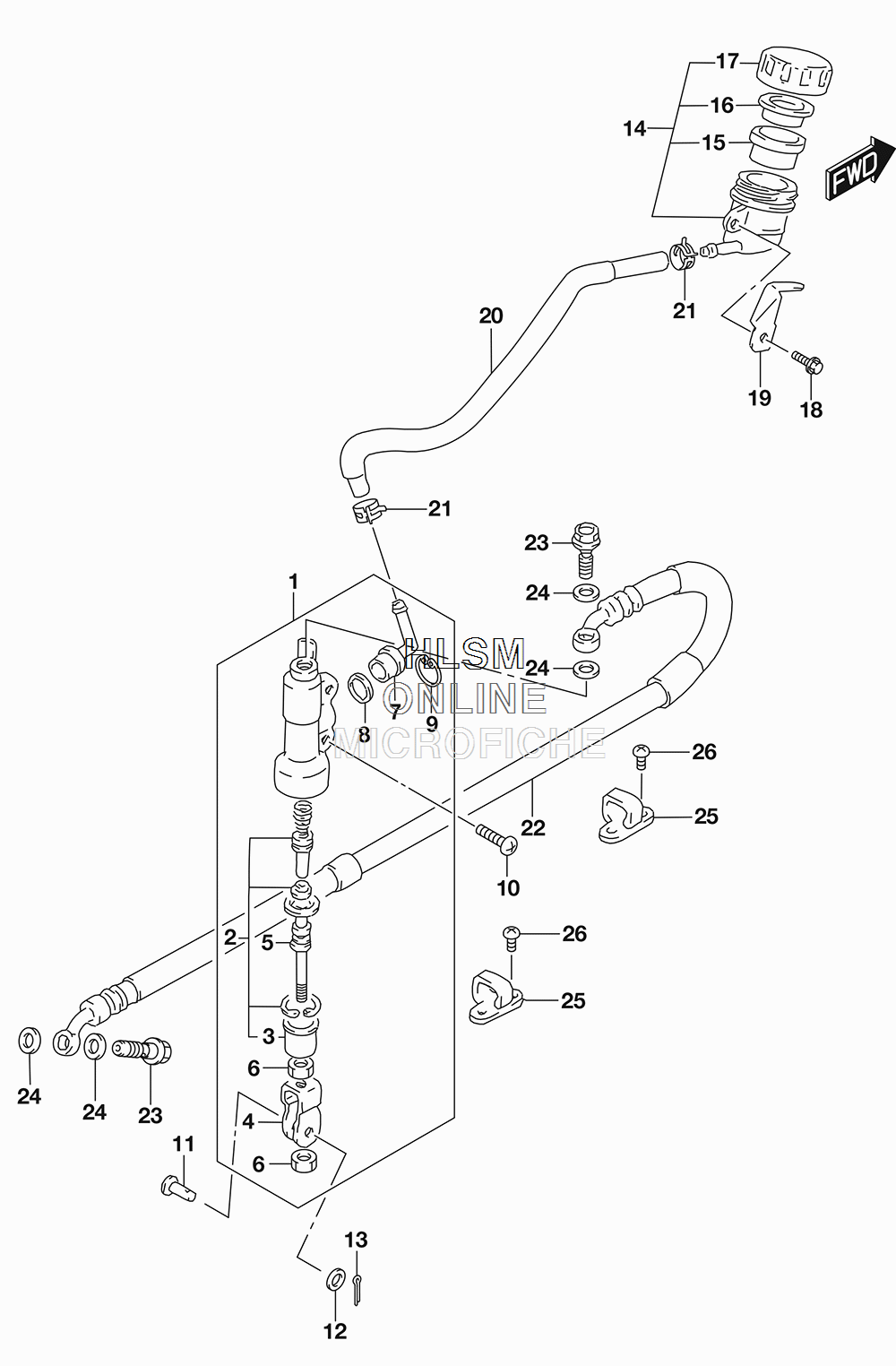

BRAKE - REAR MASTER CYLINDER для Suzuki DR650S - 2017 года выпуска
-
№АртикулНазвание
-
169600-32E00 CYLINDER ASSY, REAR MASTERCYLINDER ASSY, REAR MASTER
-
269600-04820 ...PISTON/CUP SET...PISTON/CUP SET
-
369691-00A00 ......BOOT......BOOT
-
469692-13E00 ...YOKE...YOKE
-
569670-27A30 ...ROD, PUSH...ROD, PUSH
-
669693-05A00 ...NUT...NUT
-
769672-00B20 ...CONNECTOR...CONNECTOR
-
869686-34200 ...O RING...O RING
-
969674-00B20 ...CIRCLIP...CIRCLIP
-
1009139-06067 SCREW (6X16)SCREW (6X16)
-
1109200-08048 PINPIN
-
1209160-08090 WASHER (8.5X14X1.6)WASHER (8.5X14X1.6)
-
1304111-2015A COTTER PINCOTTER PIN
-
1469740-03D00 TANK ASSY, REAR RESERVOIRTANK ASSY, REAR RESERVOIR
-
1569667-00B20 ...DIAPHRAGM...DIAPHRAGM
-
1669668-00B20 ...PLATE...PLATE
-
1769669-03D00 ...CAP...CAP
-
1801550-0616A BOLTBOLT
-
1969743-14D10 GUARD, TANK CAPGUARD, TANK CAP
-
2069730-32E00 HOSE, RESERVOIR TANKHOSE, RESERVOIR TANK
-
2109401-12404 CLIPCLIP
-
2269480-32E01 HOSE, REAR BRAKEHOSE, REAR BRAKE
-
2309360-10062 UNIONUNION
-
2409161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
2561196-27C30 GUIDE, BRAKE HOSEGUIDE, BRAKE HOSE
-
2602142-0510A SCREWSCREW
